Commercial Aluminum Full-View Model 452
Transform your business appearance with a contemporary look with an aluminum glass garage door. Ideally suited for applications where maximum light and visibility are desired, the Commercial Aluminum Full-View Model 452 is engineered for strength and durability while delivering a modern and elegant look.
,

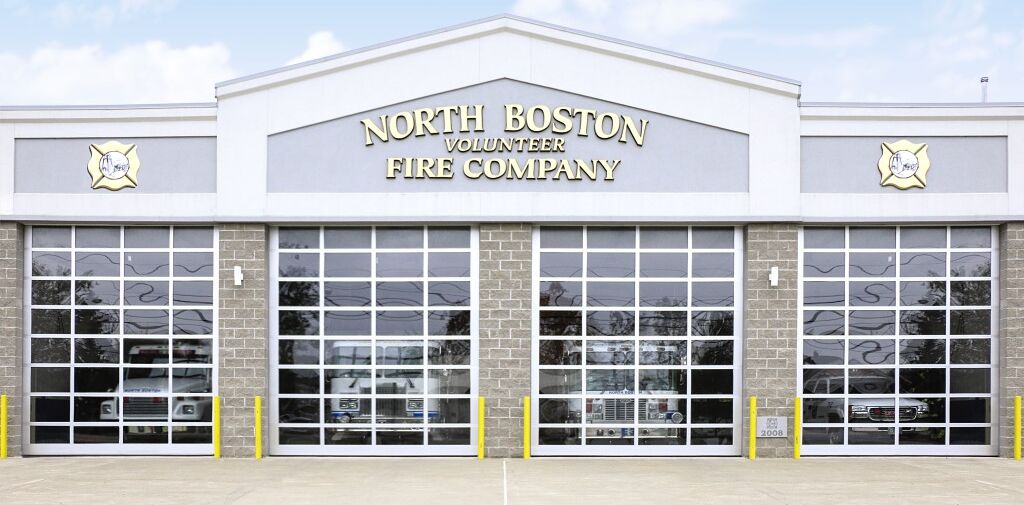

Aluminum Full-View Model 452, Clear Anodized Finish, Clear Glass
Modern Aluminum Garage Doors combines glass and aluminum for unparalleled visual appeal, strength, and light infiltration. It’s a unique solution for your extraordinary business and works equally well with various architectural styles, from a five-star restaurant on the seaside to a brewery.
Commercial Aluminum Full-View Model 452
Customizable with anodized and powder coated finish options, paint colors, glass choices and solid or glass panels, these commercial glass doors create a modern open look to complement your business.
Durable Design
- 1-3⁄8″ thick section with special reinforcing design
- Large glass panels allow maximum light and visibility
- Minimizes air flow with a vinyl seal between the section seals
Max Width –22’ 2”
Max Height: 14’1″
Door Assembly: Stile and rail assembly of aluminum alloy 6063-T6, 1-3/8″ thick stiles and rails
Rails: Top, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2″ wide with a minimum wall thickness of 0.062″
Stiles: Single end stiles are 3-1/2″ wide, center stile 3″ wide, minimum wall thickness 0.062.”
Spring Cycles 10,000
Operation: Electric operator, chain hoist, or pull rope
Weatherstripping: flexible bulb-type strip at the bottom section
Weather Stripping Options
- Jamb seals
- Header seals
Locking: Interior mounted slide lock
Air Infiltration (IECC): 0.4 cfm/ft2
R-value* (optional): 3.97
Options
- Springs: 25,000, 50,000 or 100,000 cycles
- Lock options: Interior mounted slide lock with interlock switch for automatic operator, keyed lock, keyed lock with interlock switch for automatic operator
- Weatherstripping: Jamb and header seals
- Insulated rail and stiles for a R-value* of up to 3.97 (452 only)
- Wind load options available up to 30 psf, up to 16’2″ wide
Product Literature
Brochure Full Line Sectional Doors
Wind Load
Wind Load Options – Models 451-452
Warranty
Installation – Con’t
Installation Insert – Commercial Sectional Low Headroom
Installation Insert – Aluminum Full View Half Hinge – 314160
Cable Keepers Installation Insert (297954)
Quick Start Guide – Aluminum Doors 451-452-464-8450 – 352195
Installation Instructions Vertical Lift Tracks (288955)
Operating Clearance Commercial Sectional
Commercial Aluminum Full-View Model 452
Customizable with anodized and powder coated finish options, paint colors, glass choices and solid or glass panels, these commercial glass doors create a modern open look to complement your business.
,
Aluminum Full-View Model 452, Clear Anodized Finish, Clear Glass
Durable Design
- 1-3⁄8″ thick section with special reinforcing design
- Large glass panels allow maximum light and visibility
- Minimizes air flow with a vinyl seal between the section seals
Max Width –22’ 2”
Max Height: 14’1″
Door Assembly: Stile and rail assembly of aluminum alloy 6063-T6, 1-3/8″ thick stiles and rails
Rails: Top, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2″ wide with a minimum wall thickness of 0.062″
Stiles: Single end stiles are 3-1/2″ wide, center stile 3″ wide, minimum wall thickness 0.062.”
Spring Cycles 10,000
Operation: Electric operator, chain hoist, or pull rope
Weatherstripping: flexible bulb-type strip at the bottom section
Weather Stripping Options
- Jamb seals
- Header seals
Locking: Interior mounted slide lock
Air Infiltration (IECC): 0.4 cfm/ft2
R-value* (optional): 3.97
Options
- Springs: 25,000, 50,000 or 100,000 cycles
- Lock options: Interior mounted slide lock with interlock switch for automatic operator, keyed lock, keyed lock with interlock switch for automatic operator
- Weatherstripping: Jamb and header seals
- Insulated rail and stiles for a R-value* of up to 3.97 (452 only)
- Wind load options available up to 30 psf, up to 16’2″ wide
Product Literature
Brochure Full Line Sectional Doors
Wind Load
Wind Load Options – Models 451-452
Warranty
Specs
Specs Full Line Sectional Steel Doors
Specs Full Line Sectional Steel Doors
Installation Instructions
Door Panel Section Guide Models 451 & 452
Installation Instructions Models 451, 452, 464 (352194)
Installation Insert – Aluminum Door Astragal Modification 451-452-KAL
Installation – Con’t
Installation Insert – Commercial Sectional Low Headroom
Installation Insert – Aluminum Full View Half Hinge – 314160
Cable Keepers Installation Insert (297954)
Quick Start Guide – Aluminum Doors 451-452-464-8450 – 352195
Installation Instructions Vertical Lift Tracks (288955)
Operating Clearance Commercial Sectional
Ideal Applications Include
Bars & Restaurants
Auto Dealerships
Trendy Cafes
Retail Shops
Car Washes & Service
Business Interior Room Divider
Commercial Aluminum Full-View Doors Design Options
Whether you prefer the crisp geometric look of a high-contrast door or want a dark and dramatic tone-on-tone look, our on-trend glass panel garage door adds the perfect finishing touch.
Solid or Glass Panel Options
- Solid aluminum panels may be specified in place of glass
- Polycarbonate, various glass thicknesses, and custom glazing are also available
Color Options
Powder Coat Finish
White
Black
Bronze
Brown
Anodized Finish
Clear (Standard)
Bronze
Black
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
Glass Options
Clear (1/8″ standard)
Gray Tinted
Bronze Tinted
Green Tinted
Satin Etched*
White Laminated
Clear Wired
Glass Types
10’x10′ Door
12’x12′ Door
14’x14′ Door
1/2″ insulated glass Solar Ban 70XL
argon-filled (R = 3/125) with
polyurethane-filled rails and stiles
1/2″ insulated glass Low E (R = 2.38) with polyurethane-filled rails and stiles
1/2″ insulated glass (R = 1/75) with polyurethane-filled rails and stiles
3.97
3.31
2.79
3.92
3.25
2.69
3.91
3.25
2.69
