Commercial Glass Sectional Doors Model 464
Wayne Dalton’s Commercial Glass Sectional Doors Model 464 frameless glass door is designed to integrate indoor and outdoor spaces seamlessly. Frameless glass panels are mounted on a rugged aluminum structure designed for long life.
,

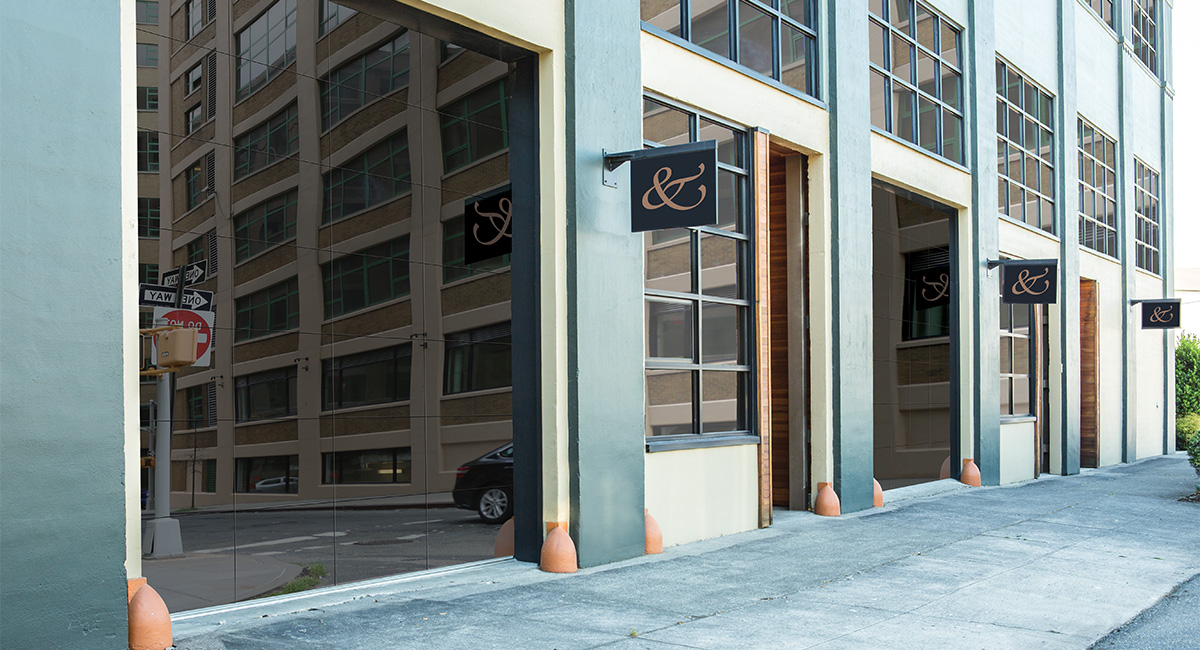

Frameless Glass Garage Doors Model 464, Opaque Black Glass
The aluminum full-view door can go along with the aesthetics of the building. Practically weather-resistant and low maintenance, Model 464 is ideal for commercial applications where you require an ultimate sleek and modern frameless glass door.
Commercial Glass Sectional Doors Model 464
Customizable with anodized and powder coated finish options, paint colors, glass choices and solid or glass panels, these commercial glass doors create a modern open look to complement your business.
Durable Design
- Built on a rugged aluminum structure that is designed for longevity and durability
- Glass is adhered to the front of the door using the same adhesive as on skyscrapers
- Minimizes airflow with a vinyl seal between the section seals
- Meets California Code of Regulation, Title 24 air infiltration requirements with a third-party tested value of less than 0.3 cfm/ft2
Max Width –18’ 2”
Max Height: 14’1″
Door Assembly: Stile and rail assembly of aluminum alloy 6063-T6, 1 ³/₈” thick stiles and rails, joined with self-tapping screws
Rails: Top, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2″ wide with a minimum wall thickness of 0.062″
Stiles: End stiles are 3 ½” wide, center stile 3″ wide, minimum wall thickness 0.062″
Spring Cycles 10,000
Exterior Surface: Smooth, Ribbed
Air Infiltration Performance:
- Meets ASHRAE 90.1 and IECC® air infiltration requirements with a third-party tested value of less than 0.4 cfm/ft2
- Meets California Code of Regulation, Title 24 air infiltration requirements with a third-party tested value of less than 0.3 cfm/ft2
Options
- Springs: 25,000, 50,000 or 100,000 cycles
- Jamb and header seals
- White or Black powder coat track
Warranty
1-Year against defects in materials and workmanship
Product Literature
Brochure Full Line Sectional Doors
Specs
Specs Full Line Sectional Steel Doors
Warranty
Commercial Glass Sectional Doors Model 464
Customizable with anodized and powder coated finish options, paint colors, glass choices, and solid or glass panels, these commercial glass doors create a modern open look to complement your business.
,
Frameless Glass Garage Doors Model 464, Opaque Black Glass
Durable Design
- Built on a rugged aluminum structure that is designed for longevity and durability
- Glass is adhered to the front of the door using the same adhesive as on skyscrapers
- Minimizes airflow with a vinyl seal between the section seals
- Meets California Code of Regulation, Title 24 air infiltration requirements with a third-party tested value of less than 0.3 cfm/ft2
Max Width –18’ 2”
Max Height: 14’1″
Door Assembly: Stile and rail assembly of aluminum alloy 6063-T6, 1 ³/₈” thick stiles and rails, joined with self-tapping screws
Rails: Top, upper, intermediate, and bottom rails ranging from 1-5/8” to 3-1/2″ wide with a minimum wall thickness of 0.062″
Stiles: End stiles are 3 ½” wide, center stile 3″ wide, minimum wall thickness 0.062″
Spring Cycles 10,000
Exterior Surface: Smooth, Ribbed
Air Infiltration Performance:
- Meets ASHRAE 90.1 and IECC® air infiltration requirements with a third-party tested value of less than 0.4 cfm/ft2
- Meets California Code of Regulation, Title 24 air infiltration requirements with a third-party tested value of less than 0.3 cfm/ft2
Options
- Springs: 25,000, 50,000 or 100,000 cycles
- Jamb and header seals
- White or Black powder coat track
Warranty
1-Year against defects in materials and workmanship
Product Literature
Brochure Full Line Sectional Doors
Specs
Specs Full Line Sectional Steel Doors
Warranty
Ideal Applications Include
Bars & Restaurants
Trendy Cafes
Auto Dealerships
Retail Shops
Business Interior Room Divider
Commercial Glass Sectional Doors Model 464 – Design Options
Whether you prefer the crisp geometric look of a high-contrast door or want a dark and dramatic tone-on-tone look, our on-trend glass panel garage door adds the perfect finishing touch.
Choose Your Finish
Your designer glass panel garage door is available in three anodized finishes. In addition, homeowners may upgrade to a custom RAL powder-coated finish by choosing from approximately 200 color options.
Anodized Finishes
Bronze
Black
Powder Coat Finishes
White
Bronze
Black
*Only available in Opaque white glass color
Glass Options
Insulated glass is not available on Model 8450 Luminous. Each door is unique and built to order; therefore, a slight deviation in glass alignment is possible. These doors may become hot to the touch in sustained hot weather.
Opaque White
Opaque Black
Translucent Black
Mirrored Gray
Mirrored Bronze
Aluminum and Glass Pairings
Each door is unique and built to order; therefore, a slight deviation in glass alignment is possible. These doors may become hot to the touch in sustained hot weather.
Aluminum Options
Glass Options
White Powder Coat
Black Powder Coat / Bronze Powder Coat / Black Anodized / Bronze Anodized
Opaque / White
Opaque Black / Mirrored Gray / Mirrored Bronze / Translucent Black
