Wind Load Aluminum Full-View Model 453
Ideal for commercial spaces where strength, durability, and high wind load resistance are essential, the Wind Load Aluminum Full-View Model 453 provides maximum light and visibility with a sleek, modern appeal. These doors enhance a wide range of settings, from upscale seaside restaurants to industrial breweries, offering both style and resilience.
,

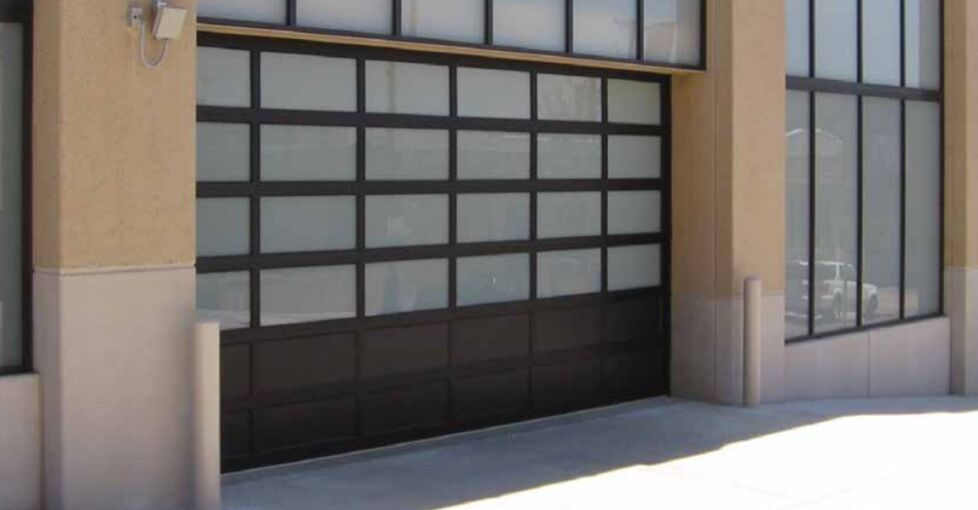

Wind Load Aluminum, Model 453, Black Finish, Clear Laminated Windows
Customizable with options for anodized and powder-coated finishes, various paint colors, glass styles, and panel choices, these commercial glass doors create an open, contemporary look tailored to complement any business environment.
Wind Load Aluminum Full-View Model 453
This door is built to meet local building codes, including Florida Building Code and Static and Impact approvals, protecting from various wind conditions, such as hurricane-force winds.
Durable Design
- 1-3⁄8″ thick section with special reinforcing design
- Large glass panels allow maximum light and visibility
- Minimizes air flow with a vinyl seal between the section seals
Max Width –22’ 2”
Max Height: 14’1″
Door Assembly: Stile and rail assembly of aluminum alloy 6063-T6, 1-3/8″ thick stiles and rails
Rails: Top and bottom rails with 2 3/8” wide, lower intermediate rail 1 19/32”, upper rail 2 3/8”, minimum wall thickness 0.062”
Stiles: Center stile width: 2-11/16; End stile width: 3-5/16
Spring Cycles 10,000
Operation: Electric operator, chain hoist, or pull rope
Benefits
Thermal Efficiency
- U-Factor* As low as 0.28 with Low E insulated glass
- R-Value** Up to 4.09 with optional insulation
Weatherstripping: Flexible bulb-type strip at the bottom section
Track: 2″
Glazing: 1/8″, 1/4″, 1/2″
Options
Springs: 25,000, 50,000, 75,000, or 100,000 cycles
Electric motor operation: Provide UL-listed electric operator, equal to Genie Commercial Operators, size and type as recommended by manufacturer to move the door in either direction at not less than 2/3 foot or more than 1 foot per second
Lock options: Interior mounted slide lock with interlock switch for automatic operator, keyed lock, keyed lock with interlock switch for automatic operator
Bottom sensing edge
Weather stripping: Jamb and header seals
Exhaust ports
Bracket mounting
3” track
Warranty
- 1-Year limited
- 1-Year limited powder coat finish
Product Literature
Installation
Installation Instructions Model 453 (365420)
Wind Load
Wind Load Options – Models 8855-453
Warranty
Wind Load Aluminum Full-View Model 453
This door is built to meet local building codes, including Florida Building Code and Static and Impact approvals, protecting from various wind conditions, such as hurricane-force winds.
Durable Design
- 1-3⁄8″ thick section with special reinforcing design
- Large glass panels allow maximum light and visibility
- Minimizes air flow with a vinyl seal between the section seals
Max Width –22’ 2”
Max Height: 14’1″
Door Assembly: Stile and rail assembly of aluminum alloy 6063-T6, 1-3/8″ thick stiles and rails
Rails: Top and bottom rails with 2 3/8” wide, lower intermediate rail 1 19/32”, upper rail 2 3/8”, minimum wall thickness 0.062”
Stiles: Center stile width: 2-11/16; End stile width: 3-5/16
Spring Cycles 10,000
Operation: Electric operator, chain hoist, or pull rope
Benefits
Thermal Efficiency
- U-Factor* As low as 0.28 with Low E insulated glass
- R-Value** Up to 4.09 with optional insulation
Weatherstripping: Flexible bulb-type strip at the bottom section
Track: 2″
Glazing: 1/8″, 1/4″, 1/2″
Options
Springs: 25,000, 50,000, 75,000, or 100,000 cycles
Electric motor operation: Provide UL-listed electric operator, equal to Genie Commercial Operators, size and type as recommended by manufacturer to move the door in either direction at not less than 2/3 foot or more than 1 foot per second
Lock options: Interior mounted slide lock with interlock switch for automatic operator, keyed lock, keyed lock with interlock switch for automatic operator
Bottom sensing edge
Weather stripping: Jamb and header seals
Exhaust ports
Bracket mounting
3” track
Warranty
- 1-Year limited
- 1-Year limited powder coat finish
Product Literature
Installation
Installation Instructions Model 453 (365420)
Wind Load
Wind Load Options – Models 8855-453
Warranty
Ideal Applications Include
Bars & Restaurants
Auto Dealerships
Trendy Cafes
Retail Shops
Car Washes & Service
Business Interior Room Divider
Wind Load Aluminum Full-View Model 453 – Design Options
Mix and match frame finishes and glass types for your modern garage doors to suit your taste. Whether you prefer a high-contrast look or tone-on-tone style, modern glass garage doors add the perfect finishing touch to your home.
Choose Your Finish
Anodized Finishes
Clear
Black
Light Bronze
Medium Bronze
Dark Bronze
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
Glass Options
Impact Option
Get the same light infiltration with an impact-rated design
- Impact design with pressures of +48/-54 psf Satin Etched White Laminated Gray Tint
- Polycarbonate glazing is lighter than glass and meets Florida Building Code impact designs approvals up to 18’2” wide and 20’1” high
- The design includes reinforcement struts for added protection without protruding into the vision panels
Additional Specialty Glass Options
- Low E glass** – thermal efficiency
- Tempered glass – enhanced safety
Glass Alternatives
- Clear Lexan® Polycarbonate** – shatter resistant
- Plexiglas® Acrylic** – shatter resistant
- Impact Clear and Frosted Polycarbonate – 0.250” minimum
Clear (1/8″ standard)
Obscure*
Gray Tinted
Bronze Tinted
Green Tinted
Satin Etched*
White Laminated
