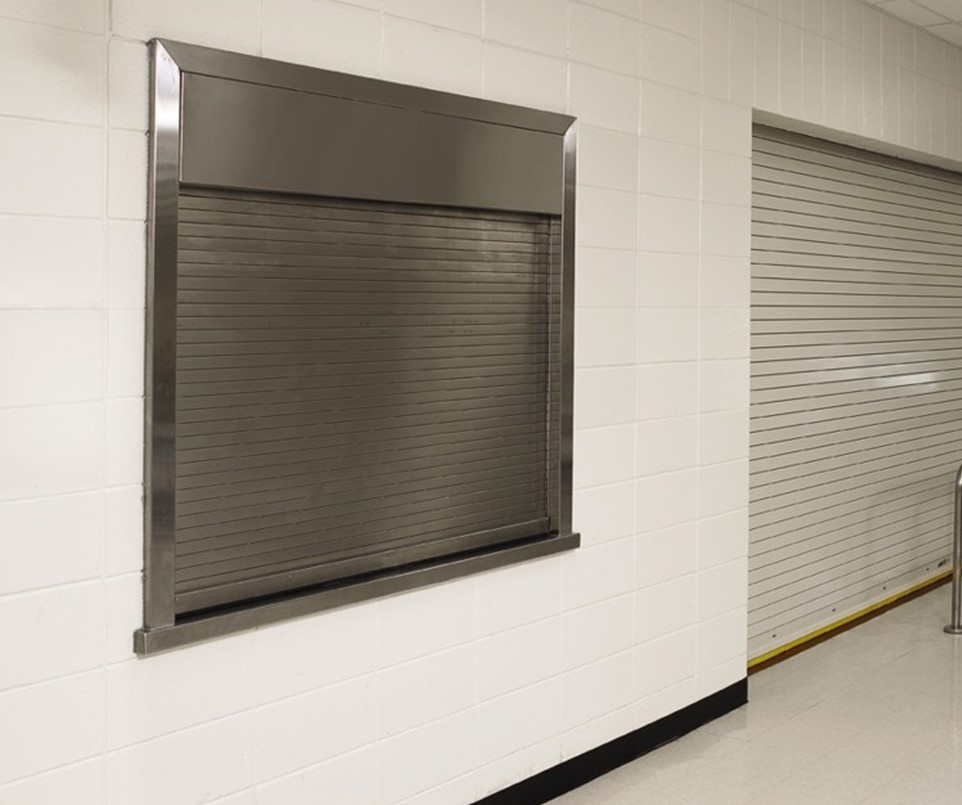

Integral Frame Counter Shutters Model 560

Model 560 Integral Frame Rolling Counter Shutters satisfy various project requirements with ease and style. Whether you choose a curtain of galvanized steel, stainless steel, or aluminum slats, you will receive a shutter door that is both durable and attractive.

Quality, Convenience, Durability

These counter shutters feature all-steel, 16-gauge frames, fascia, hood, and 14-gauge sills. Bottom bars, lift handles and slide bolts are fabricated of aluminum, stainless or steel with vinyl astragals for added durability. Our integral frame counter shutters are constructed of high-quality flat slats for a good, tight fit and enhanced aesthetics.

Integral Frame Counter Shutters Model 560

Interlocking slats with a flat profile provide an attractive and tight fit, while endlocks on alternative slats eliminate lateral movement and maintain curtain alignment.

Integral Frame Counter Shutters Model 560, Wayne Dalton of Windsor
High-Quality Constructions
  • Interlocking slats with a flat profile provide an attractive and tight fit, while endlocks on alternative slats eliminate lateral movement and maintain curtain alignment.
  • Built for long-lasting good looks and performance with various gauge options that have the commercial durability for various applications
Installer Friendly
  • Arrive on the job site ready to install, making it an easy installation proces
Warranty
  • 24-Months Limited Warranty against defects in materials and workmanship

Ideal Applications Include

Parts Storage

 Cafeterias

Food Services

Pharmacies

Stadium Concessions

Retail

Max. Width: 12’4″

Max. Height: 6′

Steel Gauge: 22

Mounting: Between jambs mounting; slip-in unit for existing

Operation: Manual Lift

Material: Galvanized steel, stainless steel, or aluminum curtain

Integral Frame and Still: Stainless steel integral frame and sill. Frame consists of 16-gauge jambs and header, with 14-gauge sill; Integral galvanized steel frame and stainless-steel sill Frame consists of 16-gauge jambs and header, with 14-gauge sill

Counterbalance: High tensile helical torsion spring housed in a steel tube or pipe barrel assembly

Frame: Pre-assembled Integral stainless steel frame units to suit wall thickness, with 16-gauge jambs and head, hood, and fascia, and 14-gauge sill. Grooves are formed into the sides of the frame to retain the curtain

Hood: Stainless steel or galvanized steel primed

Bottom Bar: Extruded aluminum or stainless-steel bottom bar with lift handle.

Locking: Interior bottom bar slide bolt

Operation
  • Crank
Safety Focused

Locking Option

  • Cylinder
