Rolling Counter Doors
Wayne Dalton’s Model 500 Rolling Counter Shutter is the perfect solution for smaller openings requiring visually appealing access control. These shutters are ideal for applications where countertops or openings require the shutter to rest on a sill.
Exceptional Security & Aesthetics

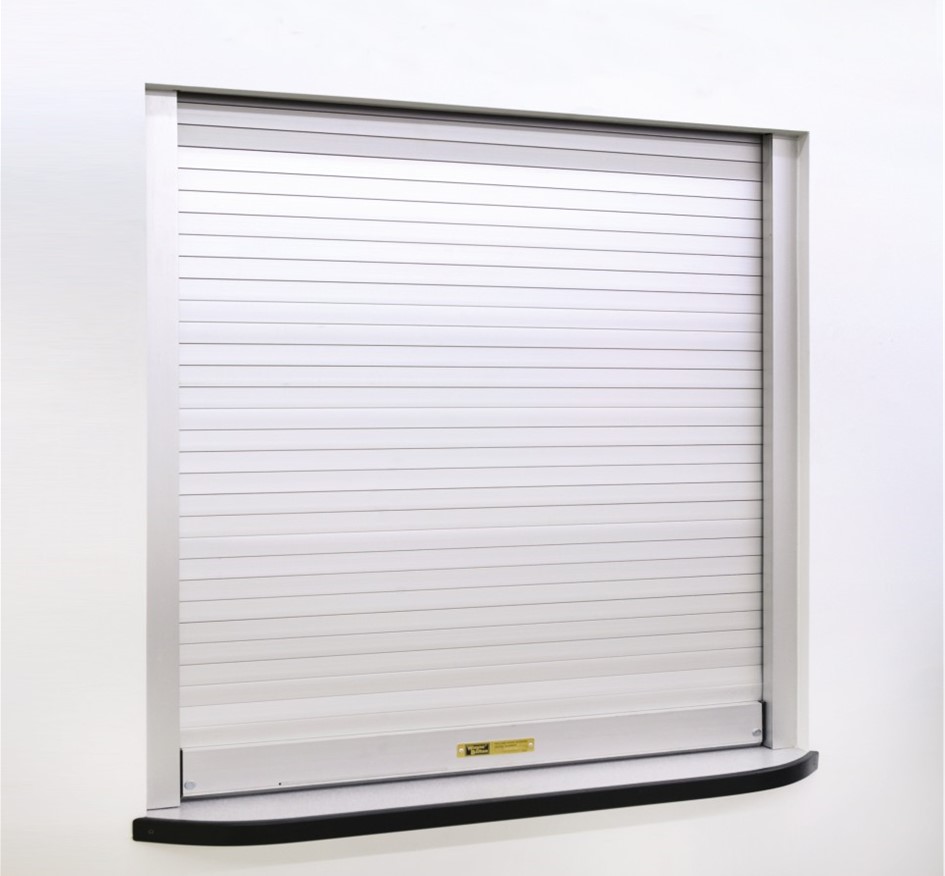

Rolling Counter Doors Model 500

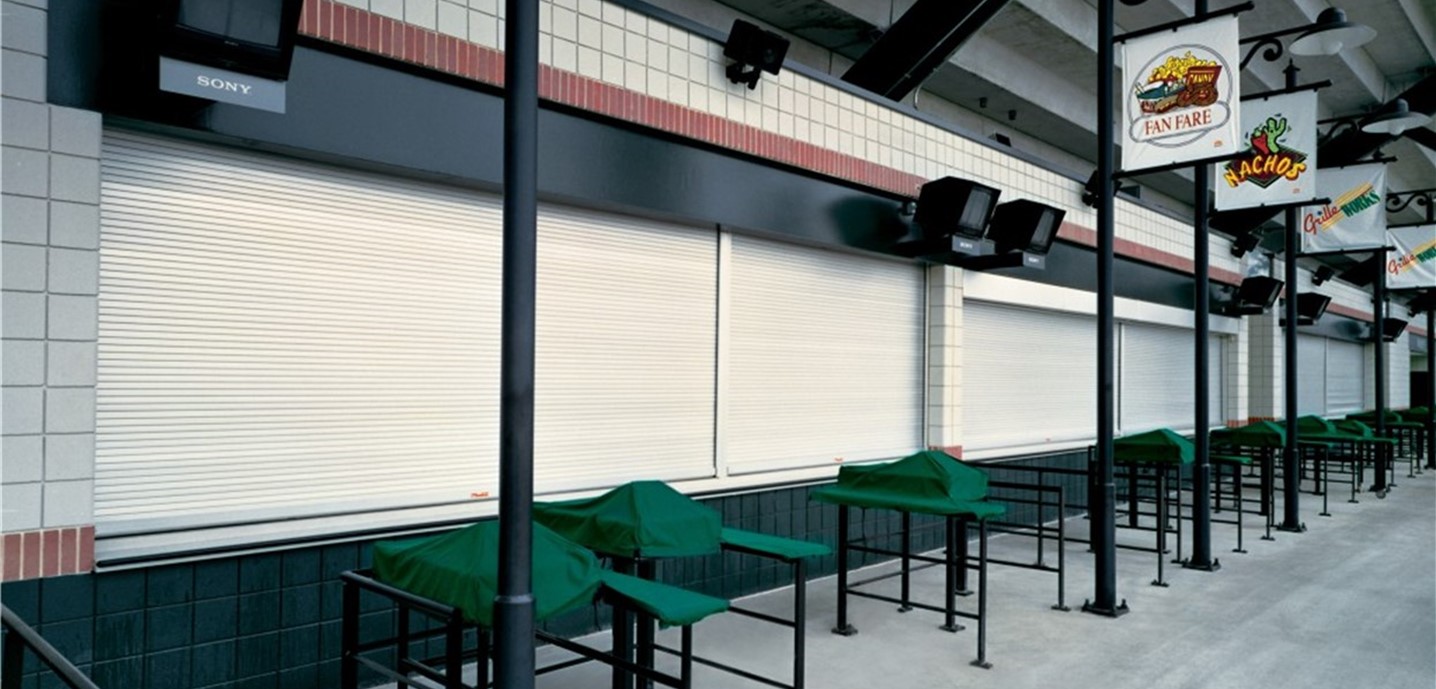

With several different modes of operation, including lift-up, awning crank, and motor, the Model 500 Rolling Counter Shutter is the preferred solution for your concession stand, customer service window, sports arena, or school food service.
Benefits
High-Quality Construction
The Superior, interlocking slats on the rolling counter shutter are available in galvanized steel, stainless steel or aluminum for long-lasting durability
The box-type guides are designed to reduce operational noise as well as to conceal the fasteners used to attach the shutter to the jamb resulting in quieter operation and greater visual appeal
A square hood cover encloses the curtain coil and counterbalances mechanism giving a clean, professional appearance
Oil-tempered, torsion-type counterbalance springs are wound from steel, providing accuracy in balancing the door
Warranty
24- Months against defects in materials and workmanship
Ideal Applications Include:
- Concession Stand
- Accounts Payable Window
- School Food Service
- Sports Arena
- School Food Service
- Ticket Booth
- Cafeteria
Enhancements
Operation
- Manual Lift
- Crank
- Motor
- Operator controls
Safety Focused
Locking Options
- Slide bolts
- Thumb turn cylinder (interlock potion on motorized doors)
Bottom Bar Options
- Single angle galvanized steel bottom bar fitted with a continuous vinyl bumper to protect the countertop.
Design Solutions
- Counter Cutouts
Rolling Counter Doors, Slat & Color Options
Slat Profiles
- No. 17
- Secure-Vent®
- Extruded Aluminum Flat
Slat Options
- steel
- stainless steel
- extruded aluminum
- perforation (steel or stainless steel only)
Bottom Bar Finish Options
Extruded aluminum
Tubular
Sensing edge: electric or pneumatic
Slat Finishes
- Stainless Steel #4
- Aluminum Anodized Finish
Hood/Bracket Finish Options
- Stainless steel
- Aluminum
Perforation
No. 17
2” Flat-faced slat up to 22-gauge steel, 22-gauge stainless steel, or 16 B&S gauge aluminum (clear or bronze anodized). Depth: 1/2”, 1-7/8” on centers.
Secur-Vent®
Slat consists of 1/16”diameter hole offering 20-25% open area over length of each slat. Available in galvanized steel and stainless steel.
Standard Powder Coat Colors:
White
Gray
Beige
Brown
Anodized Aluminum Finishes
Bronze
Clear
RAL Powder Coat:
Approximately 200 powder coat options complement the exterior colors of a building.
Please contact us for actual color samples to match your home or business.
Standard Construction | Model 500 |
|---|---|
| Max. Width* | 20′ up to 18′ |
| Max. Height* | 7′ |
| Steel Gauge | 20 |
| Mounting | Face-of-wall or between jambs |
| Operation | Manual Push-up |
| Curtain | 2” galvanized steel flat slats (#17 profile) 22-gauge steel with alternating endlocks |
| Counterbalance | Steel pipe, of adequate size to restrict a maximum deflection of .033” per linear foot; oil tempered torsion type |
| Guides | Extruded aluminum clear anodized with continuous wool pile strips |
| Hood | 24-gauge galvanized steel square hood |
| Brackets | Steel plates |
| Locking | Concealed slide bolts on both sides |
