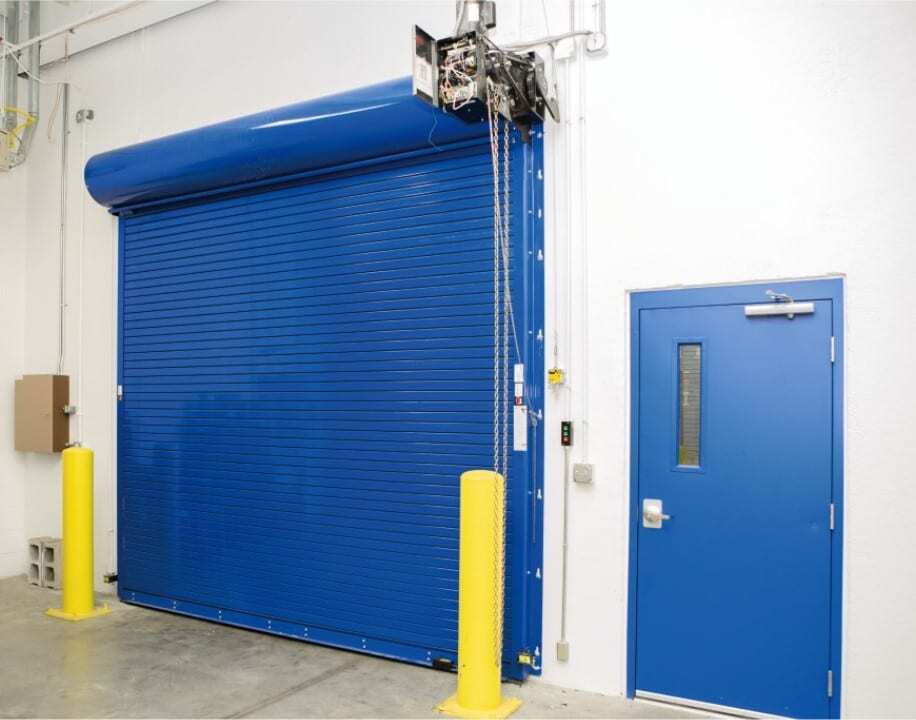

Fire Rated Doors FireStar® Models 700 & 700c
FireStar® fire-rated doors provide a practical and innovative solution to safety and fire protection for high-traffic areas. Wayne Dalton’s FireStar® fire doors not only feature advanced designs that provide reliable, long-lasting performance, but they include the ability to drop-test and reset the door without a service call.
Quality, Convenience, Durability
Both fire-rated doors feature a forward-thinking design that outperforms industry-standard fire doors in all areas, including auto-reset testing capability; smooth, quiet operation; and reliable, long-lasting performance.
Fire Rated Doors FireStar® Models 700 & 700c
Wayne Dalton incorporates one standardized component design for all FireStar® doors regardless of size and utilizes fewer parts than other models. This helps to ensure more accurate installations and reduces the possibility of potential service calls in the future.
Thermal Efficiency Model 700C:
The smooth stats of the FireStar® 700C is filled with mineral wool insulation, providing an R-value† of 5.0.
High-Quality Construction
Patent-pending planetary gear on the drop-out mechanism ensures years of reliable service and drop-out performance
Lift-up operation control device utilizing a clutch plate and unique counterbalance technology to drop the door in the event of a fire
UL/ULC/FM rated; Conforms to NFPA Standard 80
- Up to 4-hour and 3-hour Class A label in UL, ULC
- Regulates the installation and maintenance of assemblies and devices used to protect openings in walls, floors, and ceilings against the spread of fire and smoke
Tested and approved to meet the requirements of well-known agencies, such as Underwriters Laboratories and Factory Mutual
Reliable Design
- Factory-tested and approved for a minimum of 20,000 cycles, the FireStar® door can be used and easily tested regularly without concerns of premature failure.
- Non-Tension Release provides the ease of simply opening the door to reset the drop mechanism after ‘an event.
Field Repairable
- Floor resettable features an easy drop test with a fast/simple reset in a matter of seconds
- By incorporating one standardized component design, ensures more accurate installations and reduces the possibility of potential service calls in the future
Warranty
24-Months Limited Warranty on all product parts and components
Operation
- Chain hoist
- Motor
- Manual
Safety Focused
Signal Device Options
- Fire Release Device
- Horns and Strobes
- Smoke Detectors
Sensing Edge Options
- Electrical
- Pneumatic
Viscous Governor
Design Solutions
Wind Lock Options
- Alternating or continuous with windbar
Ideal Applications Include:
- Distribution Center
- Food Service Area
- Stadium Concessions
- Service Stations
- Storage Areas
- Warehouses
- Manufacturing
- Trucking Distribution Center
Documents:
Fire Rated Doors FireStar® Models 700 & 700c Design Options
Slat Profiles:
Slat Profile: 700C
Slat Profiles: 700
No. 34
Flat-faced slat
Up to 18-gauge steel or stainless steel
Pitch: 2.45′
No. 2
Curved-faced single crown slat
Up to 20-gauge steel
Up to 20 or 22-gauge stainless steel
Pitch: 1.9’
No. 4
Curved-faced single crown slat
Up to 18-gauge steel
Up to 20 gauge stainless steel
Pitch: 2.8’
No. 14
Flat-faced slat
Up to 18-gauge steel
Up to 18 gauge stainless steel
Pitch: 2.45’
No. 17
Flat-faced slat
Up to 20-gauge steel
Up to 20 gauge stainless steel
Pitch: 1.6’
Vision Options
- FireLite*- 5″ x 3/4″
- FireLite* fenestration with glass vision lite
- 6″ curved slat
Curtain Gauge Options
- 20 or 18-gauge Steel front
- 22, 20, or 18-gauge Stainless steel front
Bottom Bar Options
- Stainless steel double angle
- Galvanized structural steel angle construction
- Sloped
Bottom Edge Options
- Astragal
- Pneumatic
- Electric sensing
Color Options
Hood
- 22-gauge steel
- Square hood
Locking Options
- Slide bolts
- Cylinder
- Best lock
- Thumb turns
Perimeter Seal Options
- Angled guide brush seal
- Exterior lintel weather
- Flame baffle
- Smoke package
- Full perimeter seal
- Caulking
- Label
End Covers
- FM label
- Fascia
White
Gray
Beige
Brown
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
Standard Construction | Models 700C | Models 700 |
|---|---|---|
| Max. Width** | 22′ | 24′ |
| Max. Height** | 22′ | 24′ |
| Max. Sq. Footage | 324 sq. ft. | 324 sq. ft. |
| Material | Galvanized or Stainless Steel | Galvanized or Stainless Steel |
| Curtain Material | 3″ insulated galvanized steel flat slats (#34 profile) 22-gauge steel front / 24-gauge steel backer | Interlocking roll-formed slats with alternate slats fitted with metal end-locks/ wind-locks |
| Max Steel Gauge | 22 | 18 |
| Operation | Chain hoist or Motor | Lift-up |
| Mounting | Face mount angle-in or angle-out; between jambs | Structural steel, drywall over wood stud jamb, drywall over 16-gauge steel stud jamb |
| Counter Balance | Helical springs, oil tempered, iron barrel plugs for anchoring springs to shaft and pipe; 20,000 cycle | Helical springs, oil tempered, iron barrel plugs for anchoring springs to shaft and pipe; 20,000 cycle |
| Hood | 24-gauge galvanized steel /stainless steel round hood | 24-gauge galvanized steel /stainless steel round hood |
| Bottom Bar | Galvanized steel double angle with weatherstrip and insulation | Galvanized steel double angle with weatherstrip and insulation |
| Brackets | 3/16″ or 1/4″ steel plates with sealed ball bearings, painted factory black | 3/16″ or 1/4″ steel plates with sealed ball bearings, painted factory black |
| Release Mechanism | No | Yes |
| Slat Profiles | No. 2, No. 4, No. 14, No. 17 | No. 34 |
| R-value* (optional) | 5.0 | No |
| U-value* (optional) | 0.2 | No |
| Wind Load (optional) | Yes*** | Yes*** |
