High Speed Fabric Doors
When efficiency and reliability are a must, commercial and industrial operations rely on High-Speed Fabric Doors. Unmatched speed and durable construction make these doors ideal for high-traffic facilities such as manufacturing and distribution warehouses. Wayne Dalton’s Collection of fabric high-speed doors offer solutions for both interior and exterior applications.
High Speed Doors For the Utmoost In Efficiency, Reliability & Return On Investment
Engineered to allow maximum productivity, High-Speed Fabric Doors are fast-acting curtains, high-cycle performance and resistance to damage from accidental collisions. With robust safety features and pressure-resistant design, these high-speed doors will keep your facility running securely, efficiently, and environmentally controlled.
High Speed Fabric Doors
Wayne Dalton has a high-performance fabric door to meet even the most rigorous demands. Whether your traffic is fast-moving, a forklift, or full slow-moving loads, Wayne Dalton offers the industry’s complete line of high-speed doors.
High Performance, Low Maintenance Design
- A strutless design lowers the operational noise of the door for quiet and smooth operation.
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start and stops operation
Field Repairable
- Patent-pending breakaway system design with impact detection and push button self-repair
- Patent-pending curtain lock allows for easy field repairs
- Detachable bottom seal in safety yellow for easy replacement and troubleshooting
- Hinged guides provide easy access to maintenance
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug-and-play wiring reduces the need for a licensed electrician
Warranty
- 5-Year Limited Warranty on drive motor and gearbox
- 1-Year Limited on all other components
Excellent Wind Load Protection – Model 883
- Patent-pending roller windlocks on struts
- Bottom windlocks for pressure protection
Rugged Fabric Construction – Model 883 & 884
- Ideal for exterior applications
- Rough environmental interior applications
Safety Features:
- In-plane primary and secondary infrared sensors
- Wireless reversing edge
- Breakaway design with self-repair
- Limit Lock technology prevents the door from losing limit during a power outage
- Built-in service reminder
- Padlockable disconnect at the controller
- Advanced gearbox design features door stop safety device
Safety Focused;
Actuation Options
- Push button
- Motion detector
- Radio control
- Key switch
- Pull switch
- Loop detector
- Treadle switch
- Wireless
Signal Device Options
- Red/Green LED warning light
- Horn/Strobe combination
- Rotating warning light
Programmable LED Lighting Package
- 3′ tall light bar with red, yellow, and green lights
Ideal Applications Include:
- Healthcare Facilities
- Manufacturing & Warehouse
- Warehouse & Distribution Facilities
- Pharmaceutical
- Cold Storage, Food & Beverage
- Heavy Manufacturing
- Auto/Transit
- Mining
- Parking
Documents:
- ADV-Xtreme High Speed Doors Brochure
- ADV-Xtreme High Speed Door 880 Brochure
- ADV-Xtreme High Speed Door 881 Brochure
- ADV-Xtreme High Speed Door 882 Brochure
- ADV-Xtreme High Speed Door 883 Brochure
- ADV-Xtreme High Speed Door 884 Brochure
- ADV-Xtreme High Speed Door 887 Brochure
- ADV-Xtreme High Speed Doors 880-887 Warranty
- High Speed Doors Full Line Specs

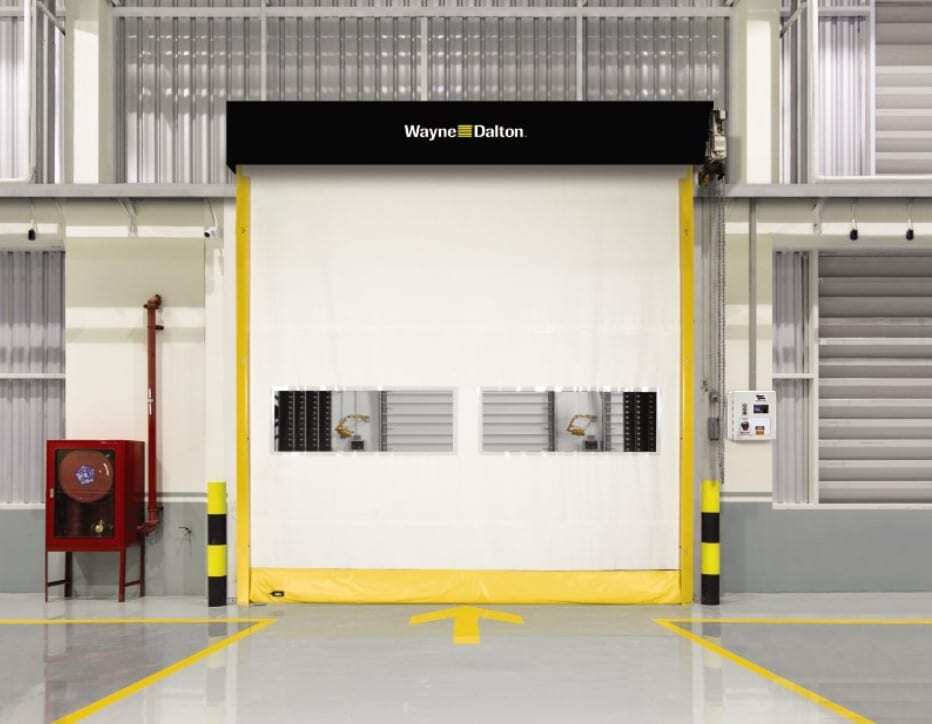

Flexible Bottom Fabric Door
Model 880
This interior fabric door’s easy troubleshooting and robust operation satisfy safety-focused reliability for high-traffic areas.
Curtain Material: 2 layers of light PVC-coated polyester with 1 layer of polyester weave
Fabric Door
Model 881
The airtight design of this interior fabric door is ideal for distribution or manufacturing in environmentally controlled areas.
Curtain Material: 2 layers of light PVC-coated polyester with 1 layer of polyester weave
Strutted Fabric Door
Model 882
Lightweight and durable, this high-performance indoor/outdoor door boasts a lightweight, low-maintenance strutted design.
Curtain Material: 2 layers of light PVC-coated polyester with 1 layer of polyester weave
Model Comparison
Model | Max Width | Max Height | Open Speed | Closing Speed | Pressure Wind Resistance | Application |
|---|---|---|---|---|---|---|
| Model 880 | 12’ | 12’ | up to 70” per second | up to 40” per second | up to ±3.0 psf | Interior / Manufacturing, Distribution, Food/Beverage, Pharmaceutical |
| Model 881 | 14′ | 14′ | up to 70” per second | up to 40” per second | up to ±7.5 psf | Interior / Manufacturing, Distribution, Food/Beverage, Cold Storage, Pharmaceutical |
| Model 882 | 16’ | 15’ | up to 65” per second | up to 40” per second | up to ±4.0 psf; | Interior / Manufacturing, Distribution, Food/Beverage, Cold Storage |
| Model 883 | 16’ | 15’ | up to 65” per second | up to 40” per second | up to ±19.5 psf; | Exterior / Manufacturing, Distribution, Auto/Transit, Parking, Food/Beverage |
| Model 884 | 24’ | 18’ at 24′ wide / 20′ at 23′ wide | up to 55” per second | up to 40” per second | up to ±22 psf; | Exterior / Manufacturing, Distribution, Mining, Auto/Transit, Parking |
| Model 887 | 12′(3.658 mm) | 18’(5.486 mm) | up to 80” per second | up to 40” per second | up to ±2 psf | Interior, Cold Storage/PVC-coated polyester plus radiant insulation |

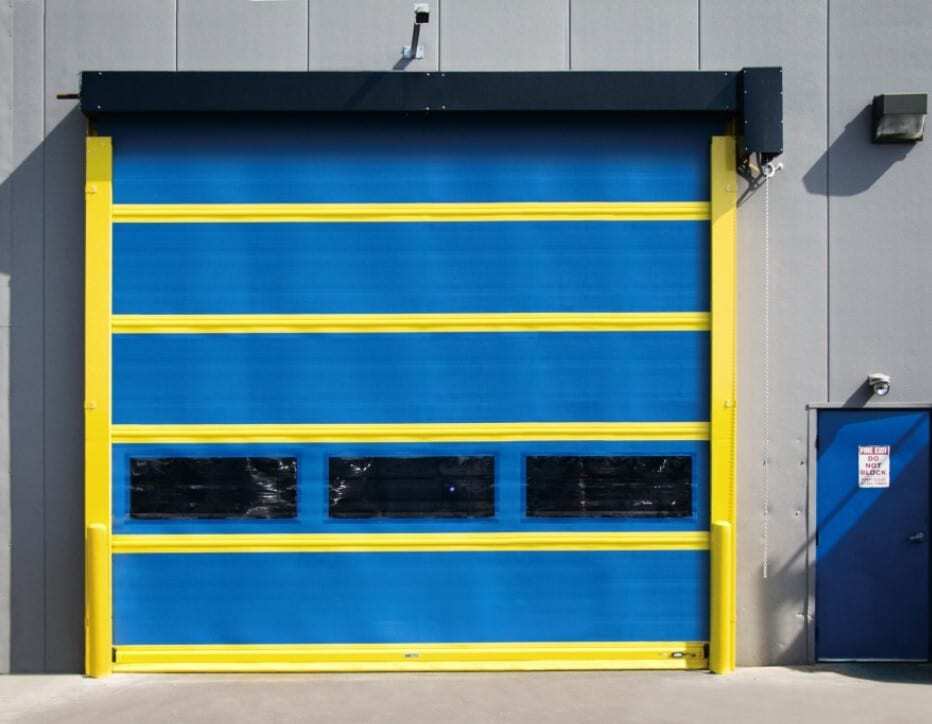

Strutted Heavy Duty Fabric Door Model 883
fast-acting, heavy-duty exterior fabric door reduces curtain deflection to withstand pressure up to 19.5 psf.
Curtain Material: 3 layers of PVC-coated polyester with 2 layers of polyester weave

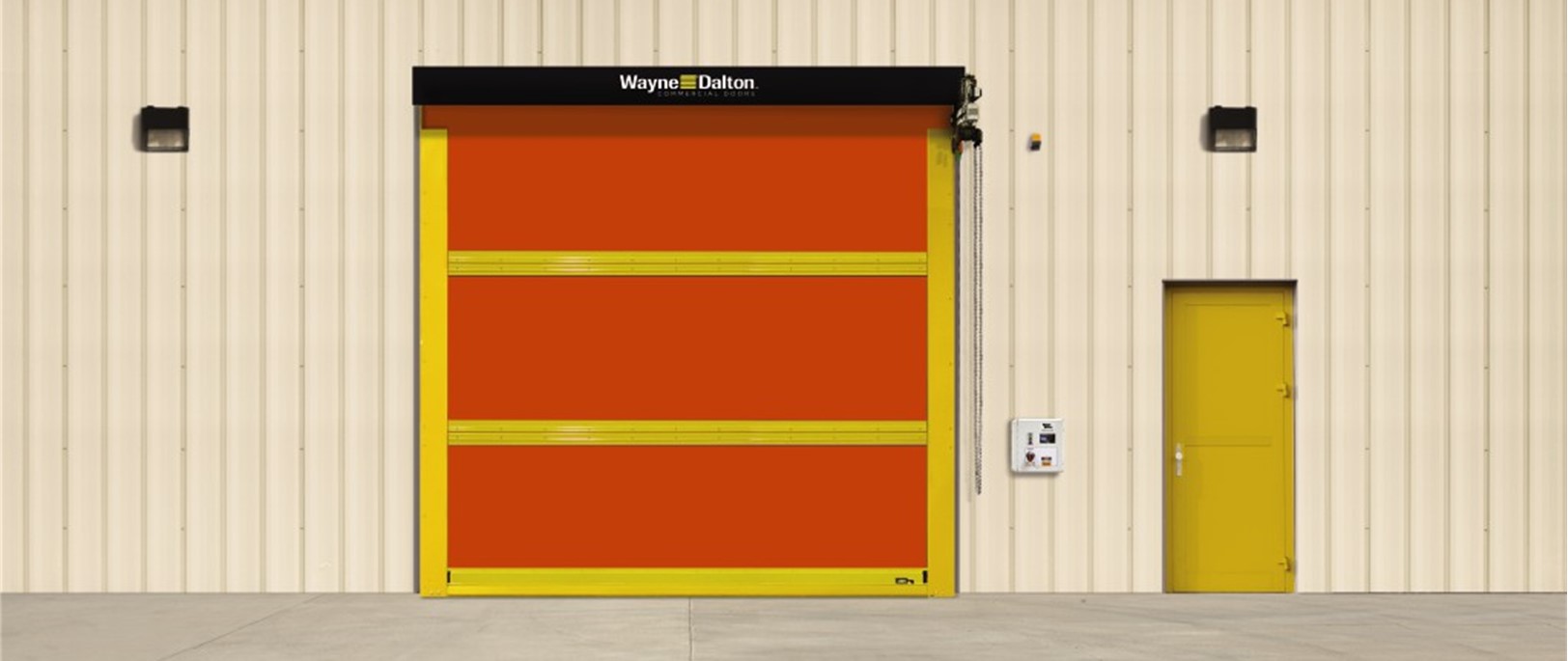

Strutted Maximum Strength Fabric Door Model 884
This exterior fabric door features a heavy-duty, strutted exterior to withstand high wind pressures in extreme weather conditions.
Curtain Material: 3 layers of PVC-coated polyester with 2 layers of polyester weave
Freezer & Cooler Door
Model 887
Designed for smooth performance, this freezer fabric door implements environmental controls to reduce interruption for maintenance.
Curtain Material: 2 layers of PVC-coated polyester with polyester weave and conductive plus radiant insulation; application-dependent ambient or heated air curtain
High Speed Rubber Doors, Design Options
Curtain color options
Actual colors may vary due to fluctuations in the printing process.
- Model 881 & 882: All Colors
- Model 800 & 887: Red, White, Blue, and Gray
- Model 883, & 884: Red, Blue Gray, and Orange
White
Gray
Red
Blue
Black
Orange
Yellow
Guides/Brackets/Struts/Bottom
Models 880, 881, 883 & 887
FDA Compliant Applications
Models 881 & 882
Black
Yellow
Royal Blue
White
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).
