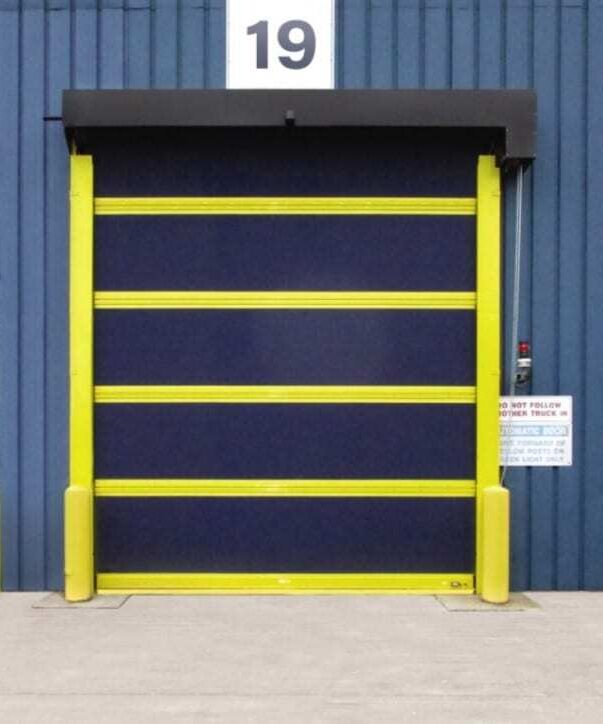

High Speed Fabric Doors Model 884
The heaviest fabric door in the ADV-Xtreme series, High Speed Fabric Doors Model 884 is a thick high speed fabric door designed for exterior applications where weather elements may be extreme. The patented articulating roller wind strut reduces noise and allows the door to operate under a higher wind load. The fabric strutted exterior door allows quick panel replacement while reducing curtain deflection under pressure.

This door can withstand a pressure of up to 22.0 psf. Model 884 ADV-Xtreme is designed to be low maintenance and includes such features as breakaway impact detection, push button self-repair, and plug and play wiring. The heavy-duty fabric door strutted exterior is built for maximum strength in high wind pressure regions.
High Speed Fabric Doors Model 884

Performance Under Pressure
- Patented articulating hinged roller wind strut reduces noise and allows the door to operate under pressure.
- The strutted design allows for quick panel replacement while reducing curtain deflection under pressure.
- Heavy-duty .188″ high strength steel guides are ideal for high pressure areas.
- A bottom windlock provides additional static pressure resistance
High Performance, Low Maintenance Design
- Springless design requires minimal interruption for maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start and stop operation.
- Patented breakaway system design with impact detection and push button self-repair
Field Repairable
- Hinged guides provide easy access for maintenance
Rugged Fabric Construction
- Ideal for exterior applications
- Rough environmental interior applications
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug-ang-play wiring reduces the need for a licensed electrician
Warranty
- 5-Year Limited Warranty on drive motor and gearbox
- 1-Year Limited Warranty on all other components
Wind load: up to 22.0 psf
Ideal Applications Include
Parking Garages
Mining
Manufacturing / Heavy Manufacturing
Warehouse / Distribution
Auto / Transit
Large Opening
High Speed Fabric Doors Model 884, Design Options
Colors
Curtain Color Options

Blue

Gray

Orange

Red
Guides/Bottom

Yellow
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).
