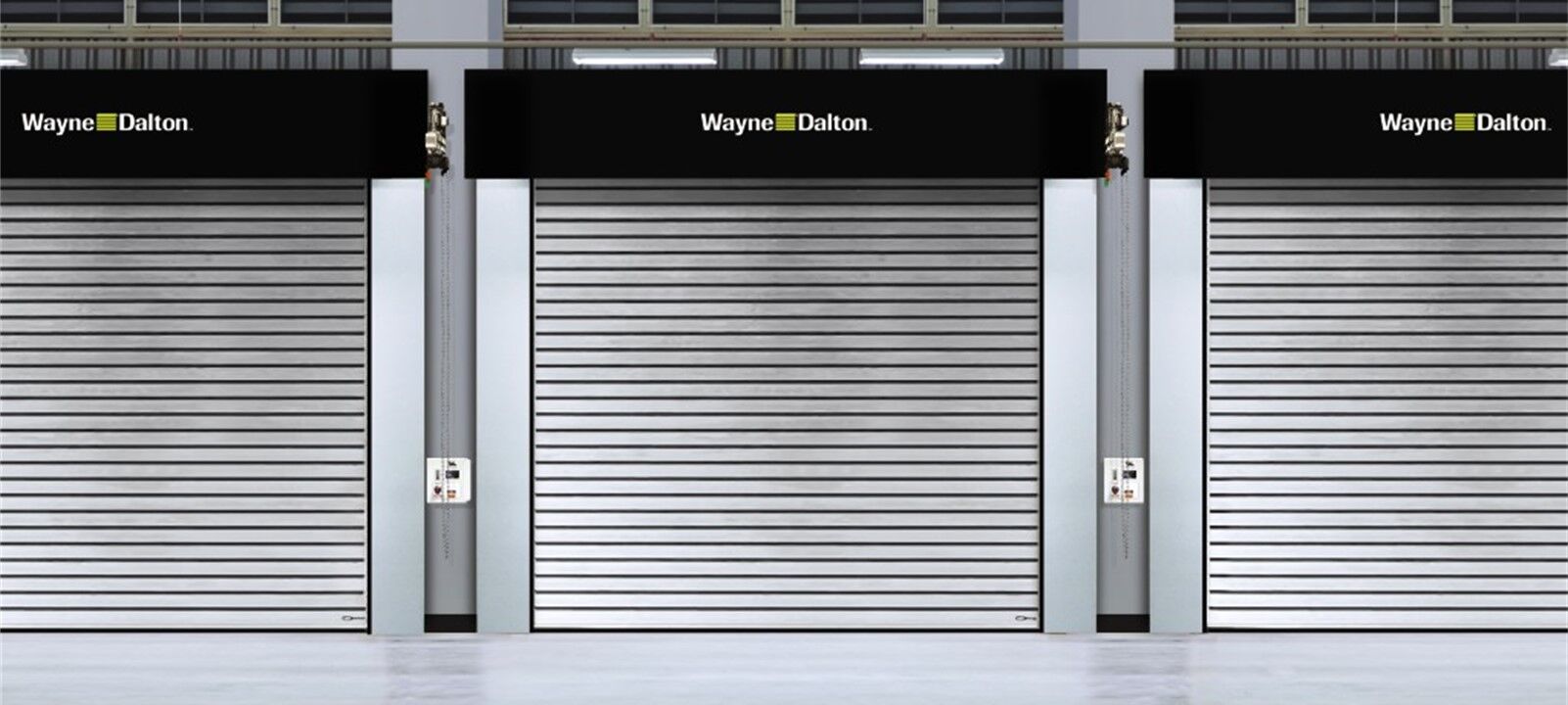

High Speed Metal Doors Model 888 & Model 889
Built tough with power, security, and durability in mind, Model 888 ADV-Xtreme is ideal for applications where security and performance are a priority. This high speed metal door is constructed with dual-walled aluminum that can withstand pressure up to 100 psf*.
Power, Security, & Durability
Built tough with power, security, and durability in mind, Model 888 ADV-Xtreme is ideal for applications where security and performance are a priority. This high speed metal door is constructed with dual-walled aluminum that can withstand pressure up to 100 psf*. Exterior full vision high speed door, Model 889 ADV-Xtreme, is ideal for applications where aesthetics and visibility are a priority. Constructed with a fully assembled curtain, this door is easy to install and maintain.
High Speed Metal Doors Model 888 & Model 889
Model 888 ADV-Xtreme also features a patent-pending helical-designed steel head plate that helps prevent metal curtain contact and provides smooth operation. A patent-pending curtain monitoring device ensures the door has a redundant system to monitor the position of the door. High speed metal doors are designed for quick installation and provide easy access to maintenance.
Model 889 ADV-Xtreme is a full vision high speed metal door that features a patent-pending helical-designed steel head plate that helps prevent metal curtain contact and provides smooth operation. A patent-pending curtain monitoring device ensures the door has a redundant system to monitor the position of the door. The high speed metal door design provides visibility, durability, and security.
Durable Construction
Model 888
- Dual-walled, solid aluminum curtain for security and privacy
- Steel headplate utilizes high strength, durable rollers to prevent metal curtain contact and provides smooth operation
Model 889
- Full-view door with corrosion-resistant aluminum and clear vision, impact-resistant polycarbonate panels
- Steel headplate utilizes high strength, durable rollers to prevent metal curtain contact and provides smooth operation
Independently tested and capable of withstanding pressure of up to 50 psf
- *Wind load is the ultimate pressure tested at door width of 15′. Wind load* up to 50 psf
High Performance Design
- Springless design for over 1 million cycles and requires minimal interruption for maintenance.
- Gravity drive system coupled with variable frequency drive eliminates sudden jolts from door start and stop operation.
- Direct-mounted gear drive minimizes wear and tear
Installer Friendly
- Fully-assembled curtain arrives pre-wrapped in headplate and trusses, ready for installation.
- Completely hinged guide for easy access and maintenance
- Pre-wired motor connections and plug-and-play accessories reduce the need for a licensed electrician
Safety Focused
- Patent-pending integrated curtain monitoring device ensures the door has a redundant system to monitor the position of the door.
- Safety light curtain minimizes contact with objects in the doorway
- Monitored wireless reversing edge
Model 888
- Wind Load* up to 100.0 psf
Model 889
- Wind load up to 50.0** psf

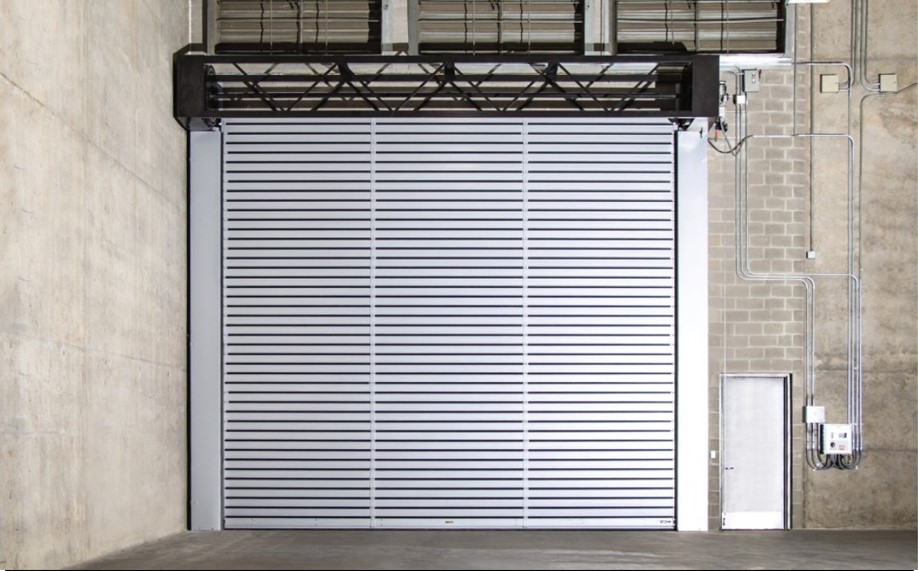

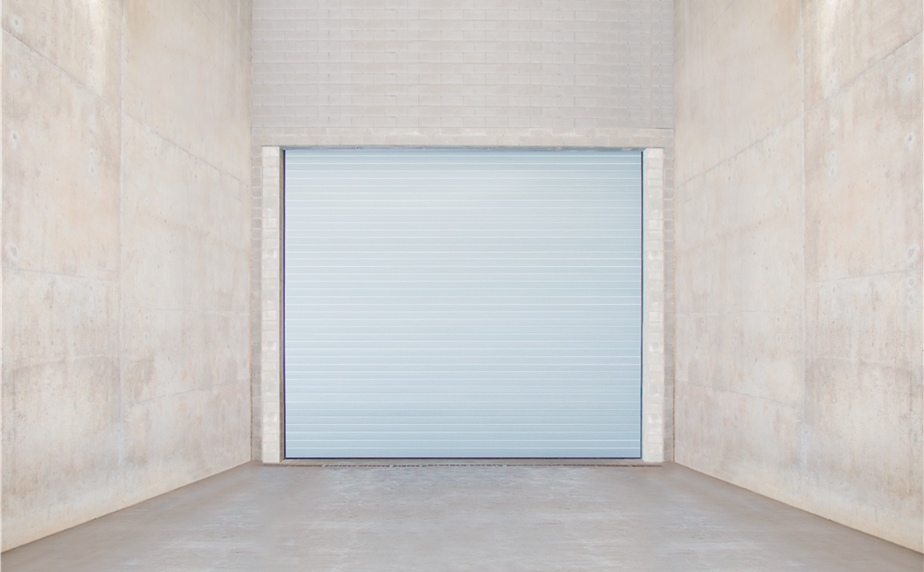

Model 888 Front & Back Side
Openings: Exterior/Interior (mount inside)
Max. Opening Speed: up to 80” per second
Max. Closing Speed: up to 20” per second
Operation: Direct drive motor and gearbox system with field changeable universal handing and door stop safety device
Control Panel: Variable frequency drive, self-diagnostic, programmable service reminders, padlockable fused disconnect NEMA 4X rated, cULus listed
Safety Features
- Obstruction Safety Detection
- Reversing Sensing Edge
Safety Focused;
Actuation Options
- Push button
- Motion detector
- Radio control
- Key switch
- Pull switch
- Loop detector
- Treadle switch
- Wireless
Signal Device Options
- Red/Green LED warning light
- Horn/Strobe combination
- Rotating warning light
Programmable LED Lighting Package
- 3′ tall light bar with red, yellow, and green lights
Ideal Applications Include:
- Auto Dealerships
- Retail
- Manufacturing
Warranty
- 5 Year Limited Warranty
Documents:
High Speed Metal Doors Model 888 & Model 889, Design Options
Model 888
Max. Width: 26′
Max. Height: 21′
Curtain Material: Dual-walled aluminum
Square Hood
Vision Options
- Perforated Slat- up to four slats with 24% open area (up to 20′ wide)
- Vision Slat- up to four slats for vision through the door
Slim Guide
- Reduces jamb side room (size limitations may apply)
Model 889
Max. Width: 20′
Max. Height: 21′
Curtain Material: Aluminum and scratch-resistant polycarbonate
Vision: Scratch-resistant polycarbonate panels
Square Hood
Vision Options
- Perforated Slat- up to four slats with 24% open area (up to 20′ wide)
Slim Guide
- Reduces jamb side room (size limitations may apply)
Colors – Guides/Slats/Bottom Bar
Bracket/Hood Structure
Silver Powder Coat (Standard)**
Black Powder Coat (Standard)

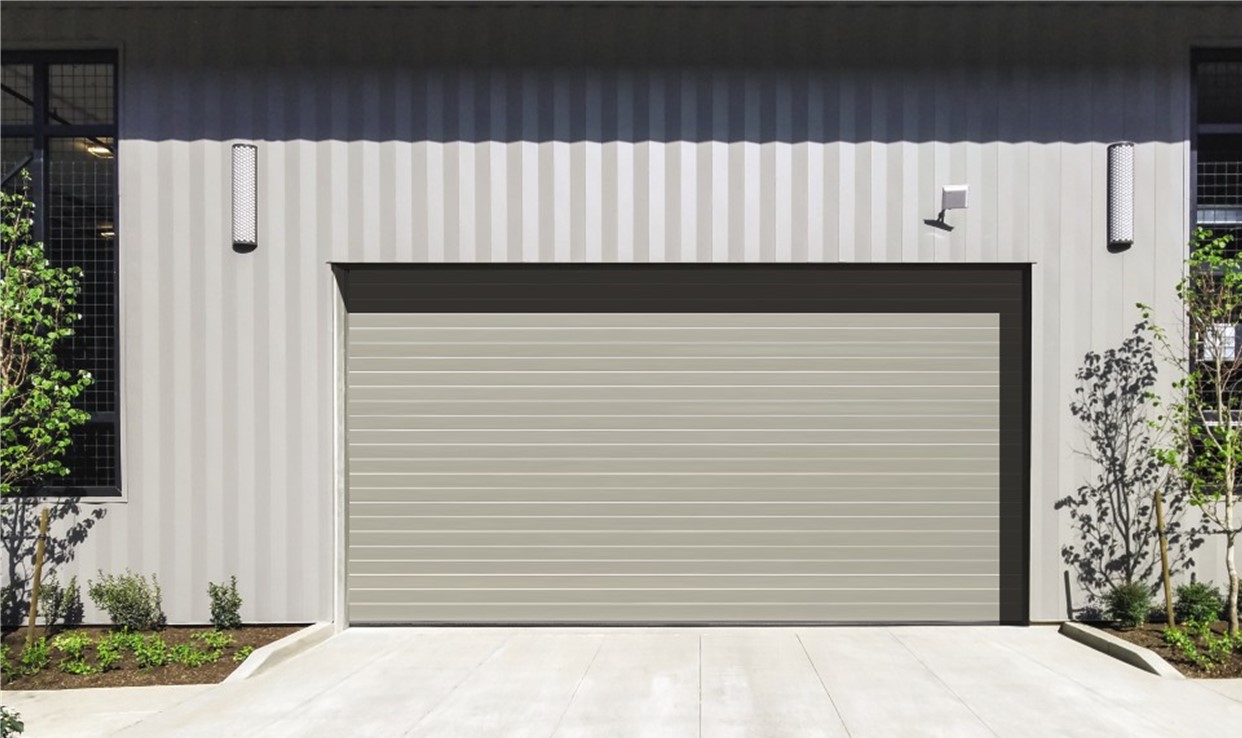

RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).
