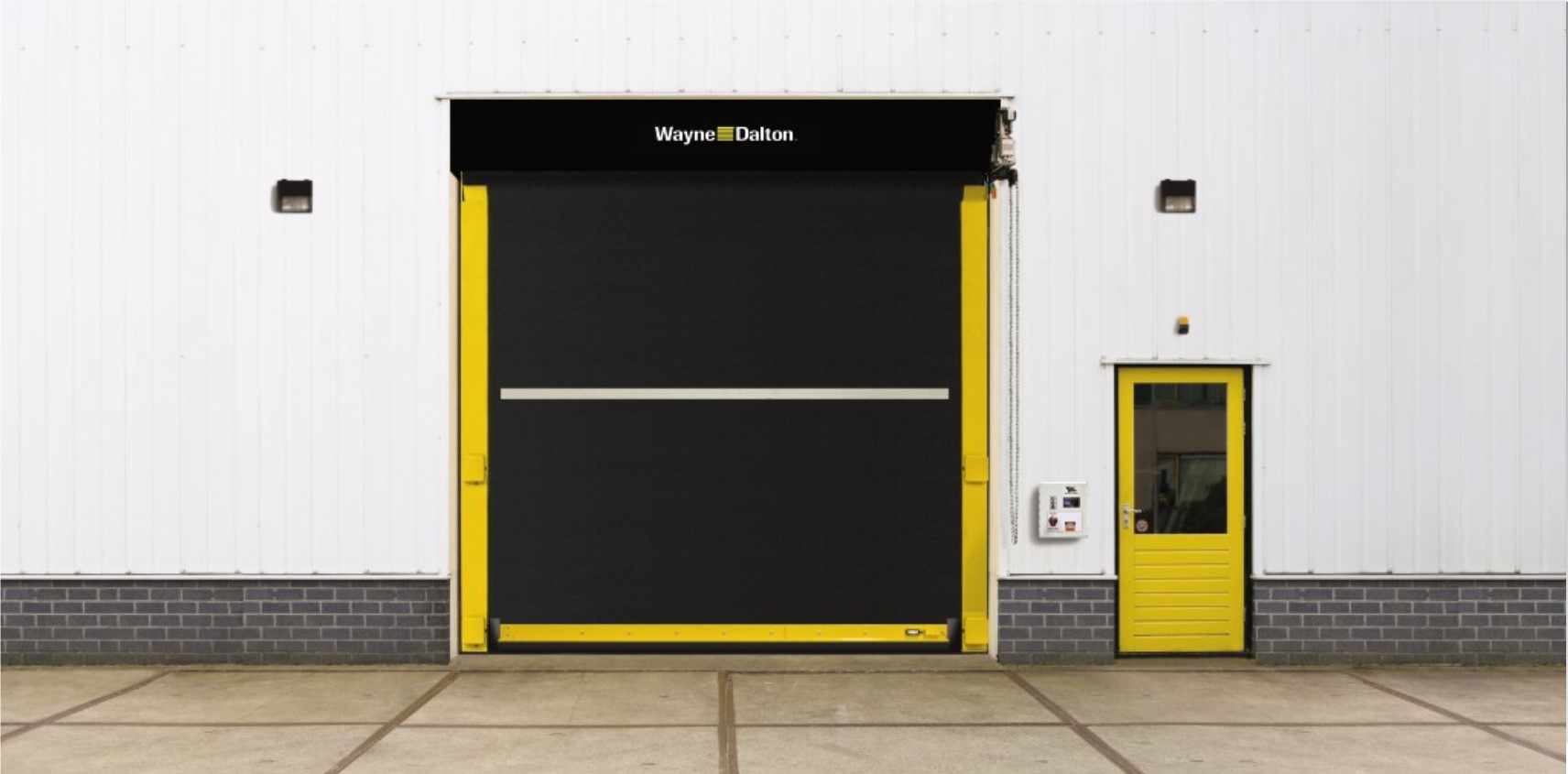

High Speed Rubber Doors Model 885
Wayne Dalton’s Model 885 ADV-X High-Speed Rubber Doors are made with unique reinforced rubber, making it our most resilient and robust door in the ADV-X series. Model 885 ADV-X is perfect for large exterior openings or applications with multiple cycles per day, and extreme weather conditions, such as heavy manufacturing and mining facilities.
Tough Reinforced Rubber Door For Extreme Environments
Model 885 ADV-Xtreme high speed exterior rubber door is made with special reinforced rubber, perfect for large exterior openings or extreme applications. Constructed with 5 layers of NBR rubbeRr and 4 layers of polyester weave, this door can withstand a pressure of up to 27.0 psf.

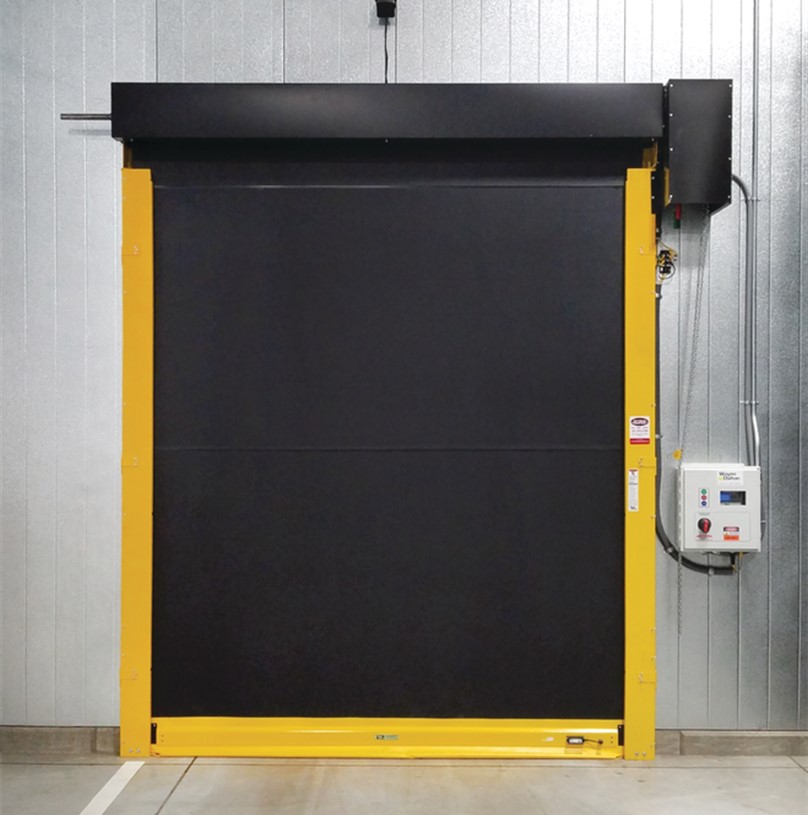

High Speed Rubber Doors Model 885
High speed rubber doors are also designed to be low maintenance and include such features for safety as breakaway impact detection, push button self-repair, and plug-and-play wiring. The exterior high speed rubber door is built tough with rugged fabric material for extreme environments.
Rugged Construction
- Multi-layered, reinforced rubber provides added strength without weight.
- Ideal for harsh exterior conditions with a wind load of up to 27.0 psf
- Nitrile butadiene rubber (NBR) provides resistance to petrochemicals for easy cleaning
- Continuous curtain locks on both edges.
High Cycle, Low Maintenance Design
- Springless design requires minimal interruption for maintenance
- Patent-pending breakaway system design with impact detection and push button self-repair
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start/stop
Installer Friendly
- Pre-assembled sub-assemblies for easier installation
- Plug-and-play wiring reduces the need for a licensed electrician
Wind load: up to 27.0 psf
Openings: Exterior
Max. Width: 30′
Max. Heigh: 30.’
Max. Opening Speed; up to 50” per second
Max. Closing Speed; up to 40” per second
Curtain Material 5 layers of NBR rubber with 4 layers of polyester weave
Operation Direct drive motor and gearbox system with field changeable universal handing and door stop safety device
Safety Features
- Obstruction Safety Detection
- Reversing Sensing Edge
Safety Focused;
Actuation Options
- Push button
- Motion detector
- Radio control
- Key switch
- Pull switch
- Loop detector
- Treadle switch
- Wireless
Signal Device Options
- Red/Green LED warning light
- Horn/Strobe combination
- Rotating warning light
Programmable LED Lighting Package
- 3′ tall light bar with red, yellow, and green lights
Ideal Applications Include:
- Warehouse
- Manufacturing & Heavy Manufacturing
- Parking Garages
- Distribution Facilities
- Mining
- Auto and Transit
Warranty
- 5-Year Limited Warranty on drive motor and gearbox
- 1-Year Limited Warranty on all other components
Documents:
High Speed Rubber Doors, Design Options
20″ High Vision Panels –Spaced Evenly Across Width of Door
Colors
Curtain Color Options
Guides/Brackets/Struts/Bottom
Black (standard)
Blue
Black
Yellow
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).
