Insulated Sectional Steel Door Model 530

ThermoMark™ Insulated Sectional Steel Door Model 530 is the strongest and most thermally efficient door in Wayne Dalton’s Commercial Sectional Door Collection. Premium 3” thick foamed-in-place polyurethane insulation features continuous steel strips for flexibility in hinge placement.

.

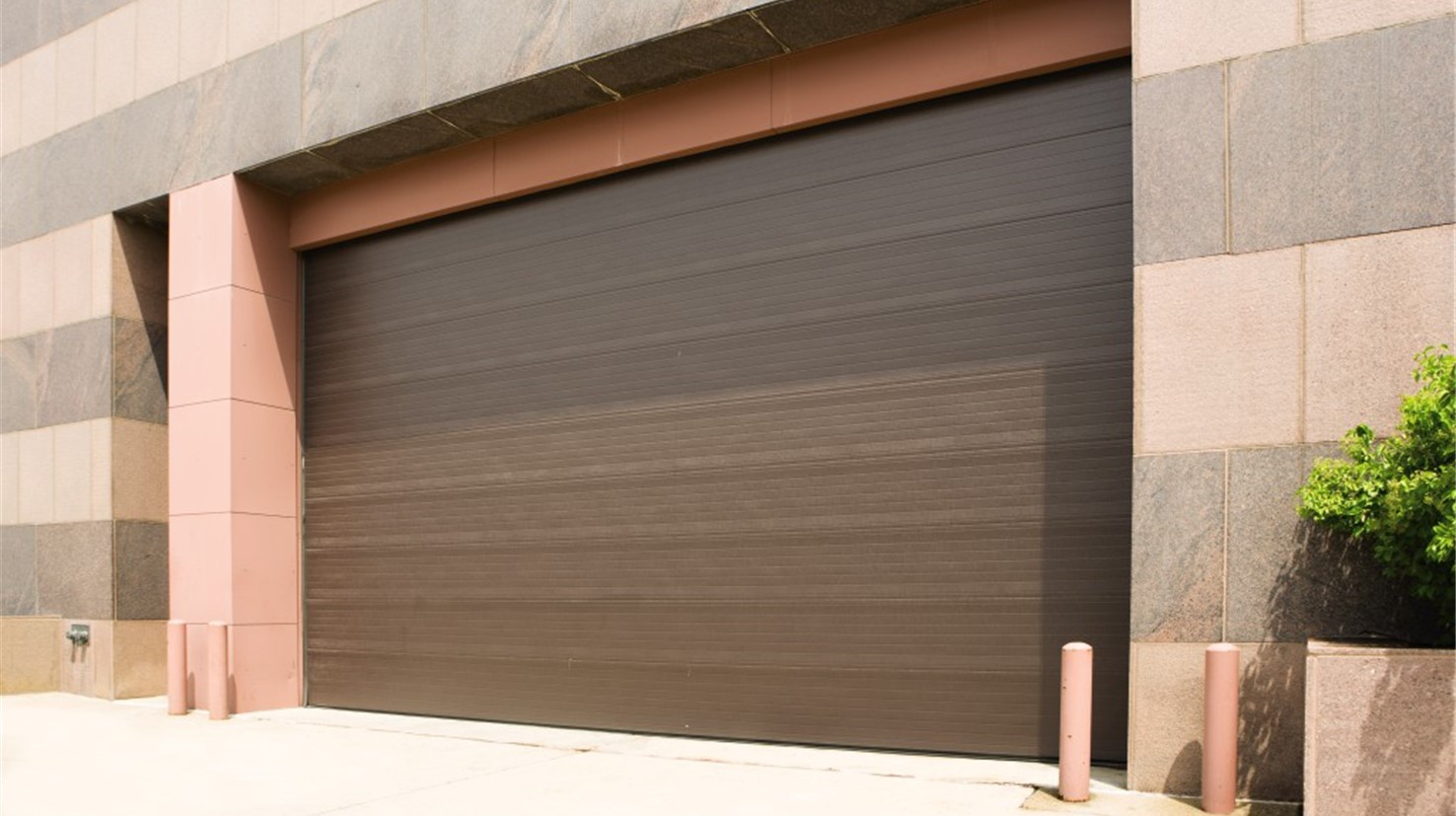

Sectional, Insulated Steel, Model 530, Brown Finish, Solid Door

Insulated Sectional Steel Door 530 - Wayne-Dalton of Windsor
Premium 3″ Thick Polyurethane Door Delivers an Optimum Return on Investment!

The preferred choice for large openings where thermal performance and durability are essential. ThermoMark™ insulated doors help to minimize energy costs and provide year-round comfort and security for your building.

Insulated Sectional Steel Door Model 530

ThermoMark™ Model 530 is designed to deliver optimal performance in commercial and industrial applications where climate control, durability, and less maintenance are the primary concerns.

Insulated Sectional Steel Door 530 - Wayne-Dalton of Windsor

,

Sectional, Insulated Steel, Model 530, White Finish, Large Lites

Durable Design
  • Hot-dipped galvanized steel and rugged construction will give years of solid performance for the most demanding conditions.
  • The bottom weather seal with rigid PVC retainer and dual durometer PCV bulb seal locks out air and water leakage through the bottom section.
Thermal Performance
  • Helps minimize energy costs with a patented dual barrier tongue-and-groove joint profile that creates a virtually impenetrable path for air leakage
  • Inside and outside skins are roll-formed and separated with a 1-3/4” true PVC thermal break to eliminate heat or cold transfer to be the strongest and thermally efficient
  • 3” thick foamed-in-place polyurethane sections feature continuous steel strips for flexibility in hinge placemen
Warranty
  • 1-year limited

Ideal Applications Include

Production /  Distribution Facilities

Loading Docks  & Industrial Facilities

Manufacturing Plants

Storage Facilities

Commercial & Retail Buildings

First Responder & Municipal Facilities

Max. Width: 40′

Max. Height: 24′

Exterior: 27-gauge Steel

Thickness: 3″ Foamed-in-place Polyurethane

Joint Profile: Tongue-and-groove

Spring Cycles: 10,000

Exterior Surface: Stucco Embossed / Pinstripe

U-factor*: .07

R-value**: 26

Air Leakage† 0.09

Sound Transmission: (STC) Class 22

Air Infiltration: (IECC) 0.21 cfm/ft2 at 25 mph

Wind Load: (optional) Yes**

*U-factor is independently tested and verified per ANSI/DASMA 105 using solid doors and specific product sizes.
**Wayne Dalton uses a calculated door section R-value for our insulated doors.
*** Only internally approved wind load reinforcement is available to withstand conditions in wind prone areas † with jamb seal

Operation
  • Chain hoist operation
  • Motor Operation
Safety Focused
  • Cable Failure Device
  • Sensing edges
  • Photo eyes
High-Performance Design

High Cycle Spring Options

  • 25,000
  • 50,000
  • 100,000

High Usage Components

Insulated Sectional Steel Door Model 530 Design Options

Lite Options
  • Large Lites
Light Frame Colors
  • Black
  • TruChoice™ Color Match
Insulated Sectional Steel Door 530 - Wayne-Dalton of Windsor

Large Lites – 25″ x 13″

Color Options
Insulated Sectional Steel Doors Model 530- Wayne-Dalton of Windsor, Garage Doors

Almond Stucco

Insulated Sectional Steel Doors Model 530- Wayne-Dalton of Windsor, Garage Doors

Brown Stucco

Insulated Sectional Steel Doors Model 530- Wayne-Dalton of Windsor, Garage Doors

Sandstone Stucco

Insulated Sectional Steel Doors Model 530- Wayne-Dalton of Windsor, Garage Doors

White Stucco
