Sectional Steel Doors Model 216 & 220
Model 216 and Model 220 commercial sectional doors are designed for strength and durability. Engineered to perform and stand the test of time, both provide your building with added safety and security. These commercial sectional doors meet the needs of rugged applications and are ideal when impact resistance is critical.
.

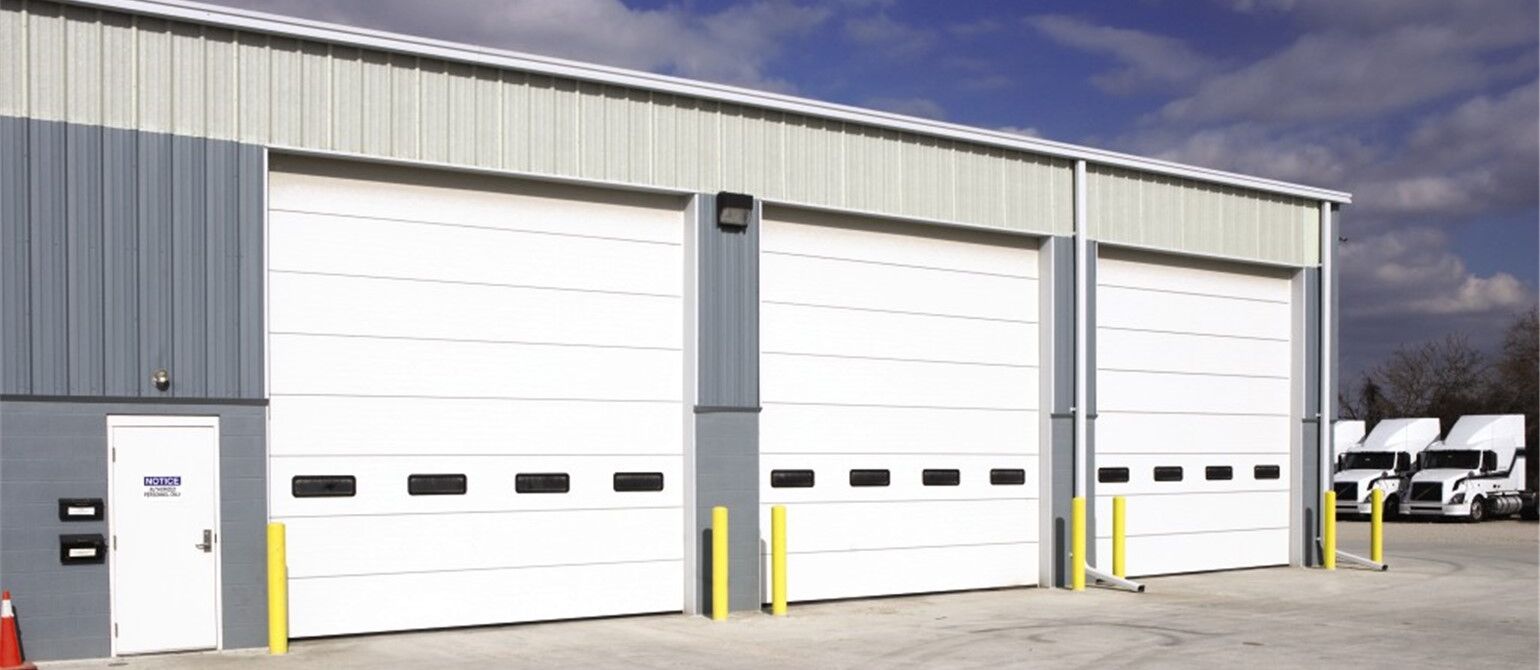

Sectional, Non-Insulated Model 216, White Finish, Vision Lites
Designed To Meet The Needs of The Most Rugged Applications.
For even more strength, we’ve reinforced the bottom section of these doors with a flexible bulb-shaped vinyl astragal held in place by a continuous roll-formed steel retainer.
Sectional Steel Doors Model 216 & 220
. Model 216 Sectional Steel door features heavy-duty 16-gauge construction built to withstand severe weather, harsh use, and exposure to security hazards. Model 220 Sectional Steel Door provides high impact resistance and industrial strength on various standard sizes.
.

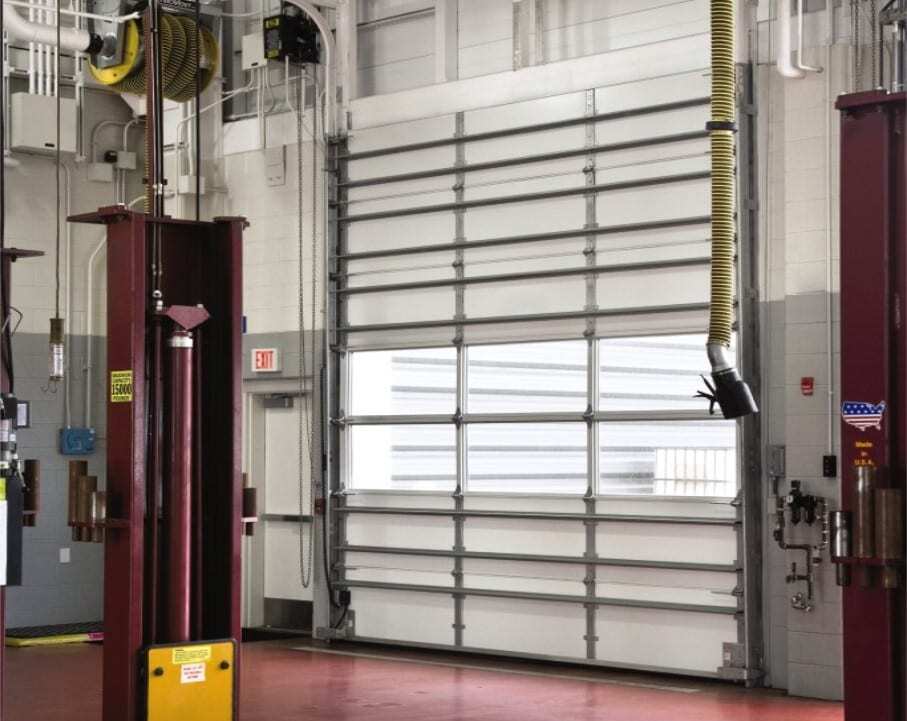

Non-Insulated Model 216, White Finish, Full-View Lites
Durable Design
- Ribbed exterior surface contributes to long service life and provides superior strength and rigidity
- Industrial-duty hot-dipped galvanized steel sections are reinforced with heavy-duty vertical stiles that make hinge installation quick and secure
- A flush profile with shiplap joints provides a lower air infiltration and can help reduce energy costs
Warranty
- 1-Year against defects in materials and workmanship
Ideal Applications Include
Manufacturing Plants
Production Facilities
Storage Facilities
Industrial Facilities
Agricultural Facilities
Commercial Buildings
Model Comparison
Standard Construction | Model 220 | Model 216 |
| Max. Width | 30’2″ | 28’2″ |
| Max. Height | 22’1″ | 18’1″ |
| Steel Gauge | 20 | 16 |
| Joint Profile | Shiplap | Shiplap |
| Spring Cycles | 10,000 | 10,000 |
| Exterior Surface | Smooth, Ribbed | Smooth, Ribbed |
| R-value* (optional) | 7.64 | 7.64 |
Sectional Steel Doors Model 216 & 220, Design Options
.

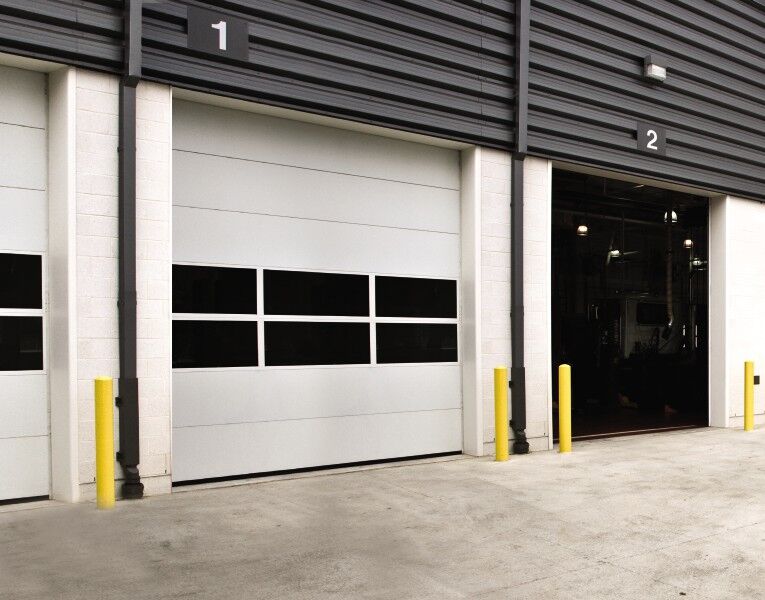

Non-Insulated Model 220, White Finish, Full-View Lites
3” Track
Solid shafts
Special track designs
Mullions
Perimeter weather seal
Polystyrene Insulation
Impact Panel Option
- The Wayne Dalton Impact Section replaces the traditional bottom section on doors exposed to damage from forklifts and other warehouse traffic. Available for 21″ and 24″ sections or from 8’2” to 16’2” wide in one-foot increments, this fully adaptable design provides a superior fit, reduces downtime and costly repairs, and has impact-resistant composite skin surrounding an expanding polystyrene core
Lite Options
- Vision Lite
- Full View
Vision lites
Full-view lites
Colors Options
Finish Options: White, Smooth, Ribbed
White
