Residential Exterior Shutter Model 523
Wayne Dalton’s Rolling Security shutters are the most attractive way to protect your business along with unwanted visitors. From storefronts and pass-through windows to counter windows can benefit from security shutters. These aluminum security shutters are far more elegant than bars, as business owners can paint shutters to match your facility’s aesthetics.
.
Commercial Rolling Security Shutter Model 523, White Finish
Attractive Security Shutter For Areas With High Pedestrian Traffic.
Rolling Security Shutters Model 523
It can easily install the interior and exterior of a commercial building. The door comes pre-assembled for easy installation and is perfect for cafeterias or hospitals, schools, to-go restaurants, and retail facilities. The design allows for visibility and airflow with perforation and fenestration options, ideal for retail applications.
Benefits
Installer Friendly
- Designed to be compact, the headroom and side room requirements are minimal, and the pre-assembled door allows for easy installation.
- Made with extruded aluminum, the curtain has interlocking slats constructed of .05” aluminum and comes pre-assembled for easy installation.
Attractive Design
- Its compact design allows for a 14’ high door to wrap into a 10” square hood
- Stylish design by powder coating over anodizing includes more consistent coloring, easily matched replacement parts, and shorter lead times
Warranty
24-Months Limited Warranty on all product parts and components
Enhancements
Operation
- Interior crank
- Tube motor with crank for emergency egress manual override
Safety Focused
- Cylinder lock (if motor operated, requires interlock microswitches)
- Pad-lockable slide bolts (padlock not included)
Interlock microswitch
- Design Solutions
- Bottom bar step angle attachment
Ideal Applications Include:
- Pharmacies
- Hospitals
- Airports
- Counters
- Offices
- Schools
- Concessions
- Sports Facilities
- Retail Facilities
Security Shutter Slat & Color Options

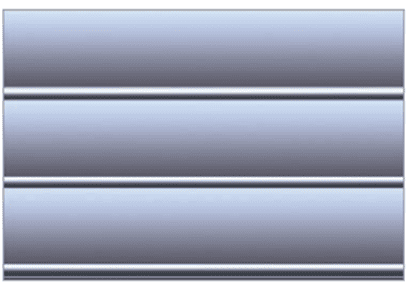

Standard Slat

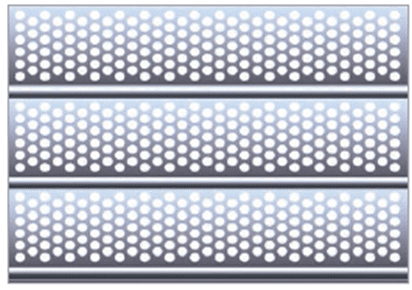

Perforated – Perforation pattern – Offers 22% open area

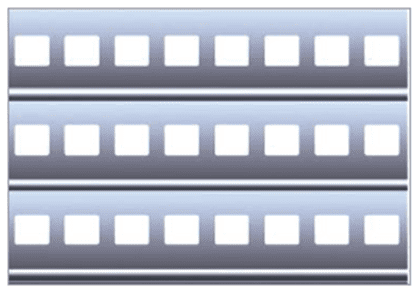

Fenestrated – 1″ x 1″ fenestrations with uniform spacing – Offers 24% open area
Slat / Curtain Options:
Solid – Standard
Perforation
Fenestration
Standard Powder Coat Colors:
White
Almond
Silver*
Bronze*
*Silver and bronze powder coat made to mimic anodized aluminum.
RAL Powder Coat:
Approximately 200 powder coat options complement the exterior colors of a building.
Please contact us for actual color samples to match your home or business.
Standard Construction | Model 523 |
|---|---|
| Max. Width* | 20′ |
| Max. Height* | 14′ |
| Slat Style | Solid |
| Mounting | Face-of-wall or between jambs |
| Operation | Manual Push-up |
| Material | Aluminum |
| Curtain | Interlocking extruded aluminum slats constructed of .05″ aluminum |
| Counterbalance | Steel barrel; housing spring assembly |
| Guides | Extruded aluminum channels with continuous wear strips |
| Hood | Aluminum square hood |
| Brackets | Steel plates |
| Bottom Bar | Compact aluminum with vinyl bulb seal |
