Roll Up Sheet Doors Model 770SS, 780CD & 790CW
Roll-up Sheet Doors offer an ideal solution when your project requires an attractive, solidly constructed sheet door that is easy on your budget. Designed to fit most building structures, we offer several types: mini-doors, low-profile, commercial or heavy commercial roll-up doors.
.

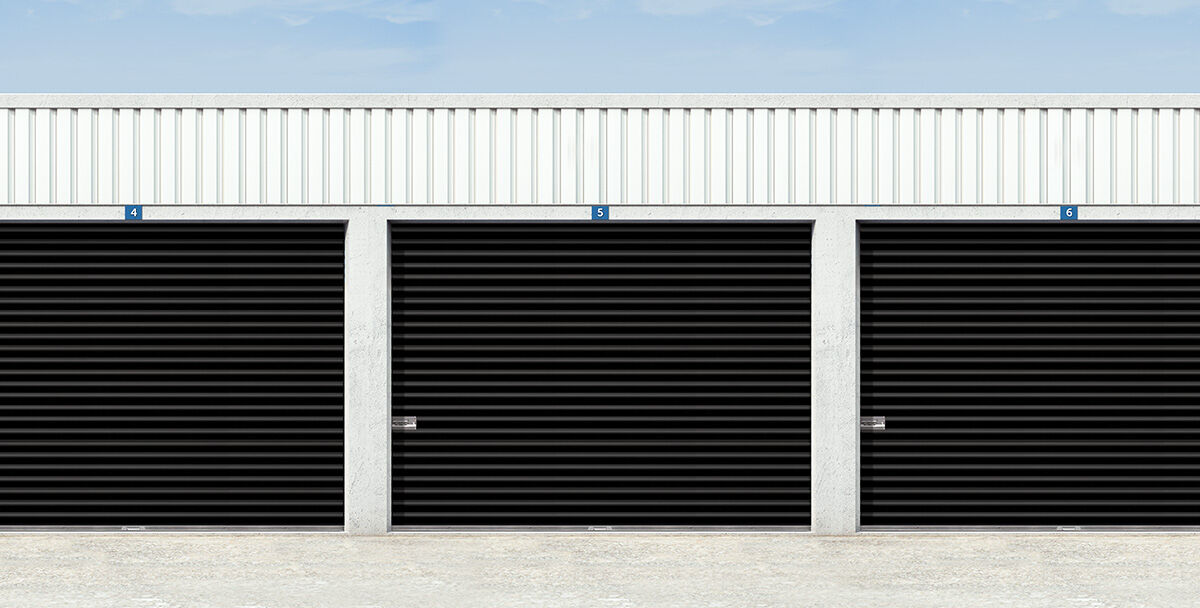

Roll Up Sheet, Model 780-CD, Black Finish
Designed to be Versatile, Durable, and Easy to Operate.
Roll Up Sheet Doors Model 770SS, 780CD & 790CW
. Select from a wide range of designer colors so your building can maintain a uniform look while still providing accessibility to meet your needs. These doors incorporate innovative design elements that enable fast installation and ensure smooth operation for long-lasting performance.
High-Quality Design
- Unique curtain profile facilitates smooth operation and minimizes curtain damage
- Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements
- Bearings prevent steel-to-steel contact, improve door operation, and increase door shaft life
Installer Friendly
- Quick-connect headplate eliminates the need for multiple fasteners
- The quick-connect bottom bar stops, minimize fasteners, and allow easy insertion of curtain into the guides
- The universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs
- Through-hole design reduces sideroom requirements
Warranty
- 12-Months Limited Warranty on all product parts and components
Options:
- Genie® commercial operator (GCL-MJ or GCL-MH) available on 790-CW and 780-CD
- Chain hoist with reduced drive, non-handed quick-connect components standard on some 790-CW and 780-CD doors, depending upon the size
- Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*) right or left-handed available on 790-CW and 780-CD
- Jamb extension brackets for steel/wood jambs available on 790-CW and 780-CD
- Header draft seal
Ideal Applications Include
Commercial Buildings
Loading Docks
Office Buildings
Freight Terminals
Warehouse
Self Storage Facilities

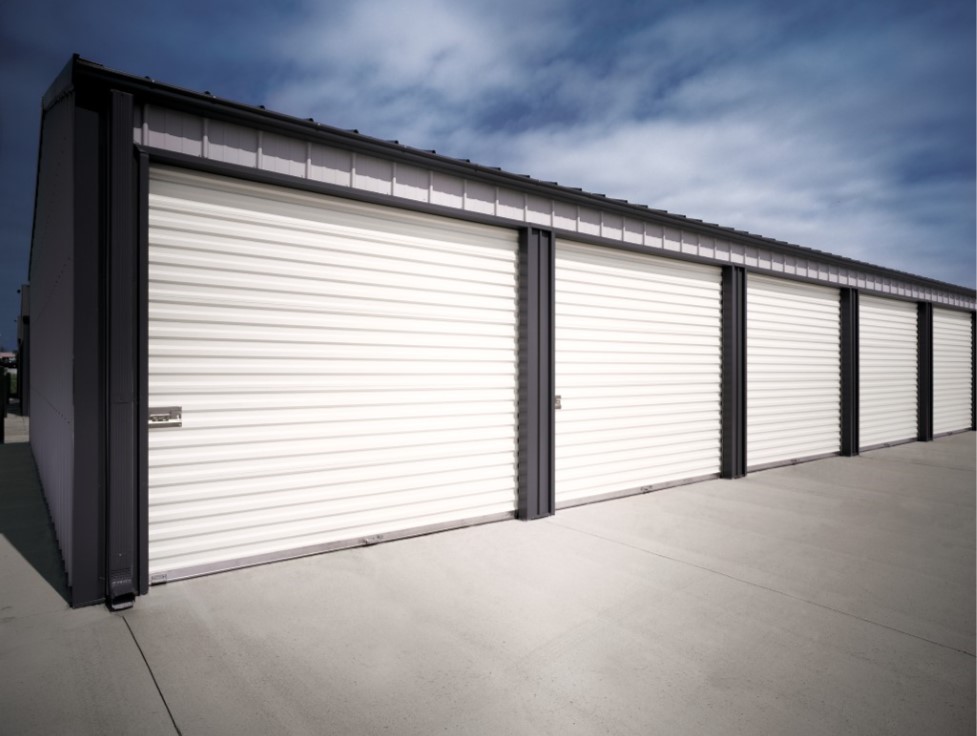

Model 790-CW Commercial Wind Load Door
- Max. standard width – 20′ (6,096 mm)
- Max. standard height – 16′ (4,877 mm)
- Counterbalance assembly – 12″ (305 mm) steel stepped rings to minimize headroom and enhance door operation.
- Wind load – integrated curtain wind locks and guide to withstand wind load to minimum design pressures of 22/-22 psf (107/-107 kgf/sq m)
- Universal guides 14-gauge, roll-formed galvanized steel with pre-punched through-hole design for mounting to concrete, masonry, steel, or wood jambs
- Headplate – 11-gauge steel
- Bottom bar – extruded aluminum reinforced with steel, roll-formed angles
- Lock – Interior bottom bar slide lock, right or left-handed.

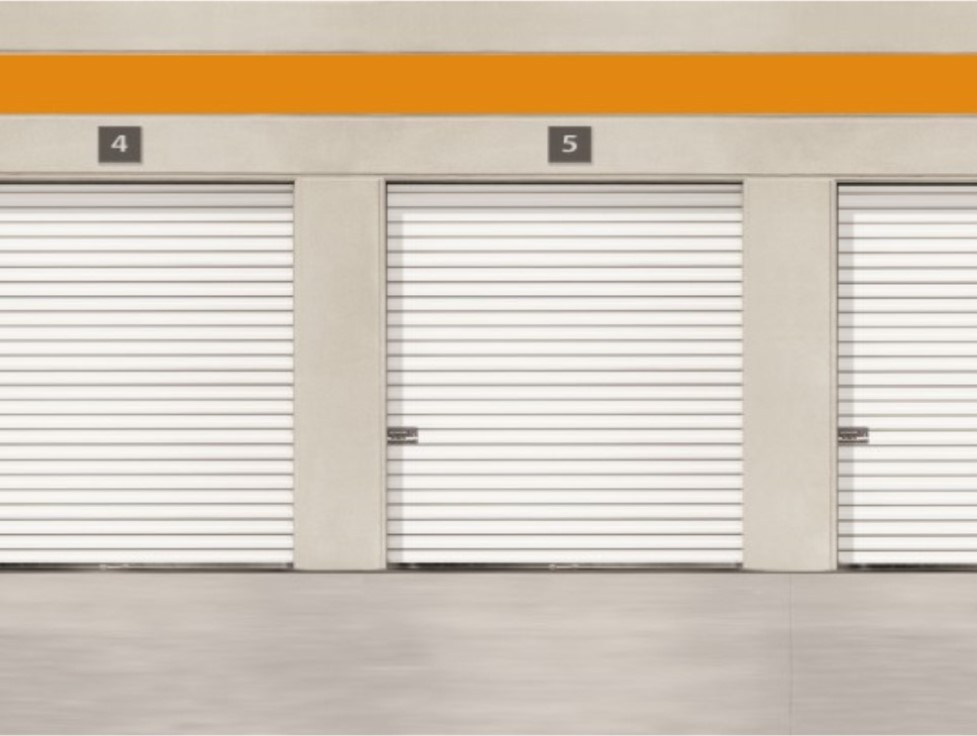

Model 780-CD Commercial Door
- Max. standard width – 16′ (4,877 mm)
- Max. standard height – 16′ (4,877 mm)
- Counterbalance assembly – 12″ (305 mm) steel stepped rings to minimize headroom and enhance door operation.
- Universal guides – 18-gauge, roll-formed galvanized steel with pre-punched through-hole design for mounting to concrete, masonry, stee,l or wood jambs
- Headplate – 11-gauge steel
- Bottom bar – Extruded aluminum reinforced with steel, roll-formed angles
- Lock – Interior bottom bar slide lock, right or left-handed.

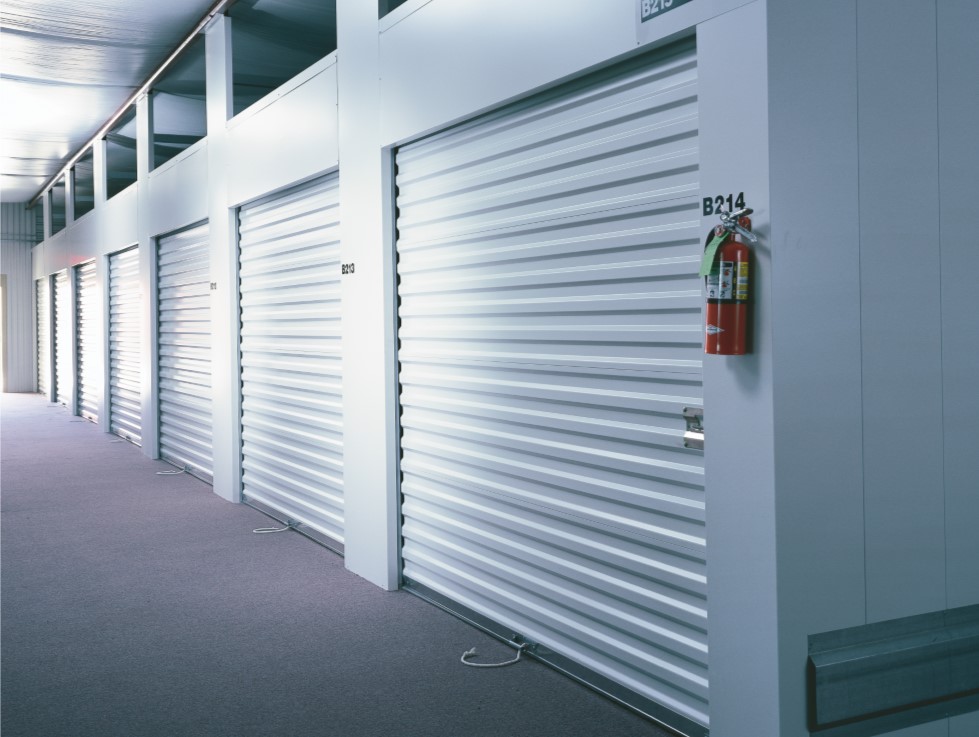

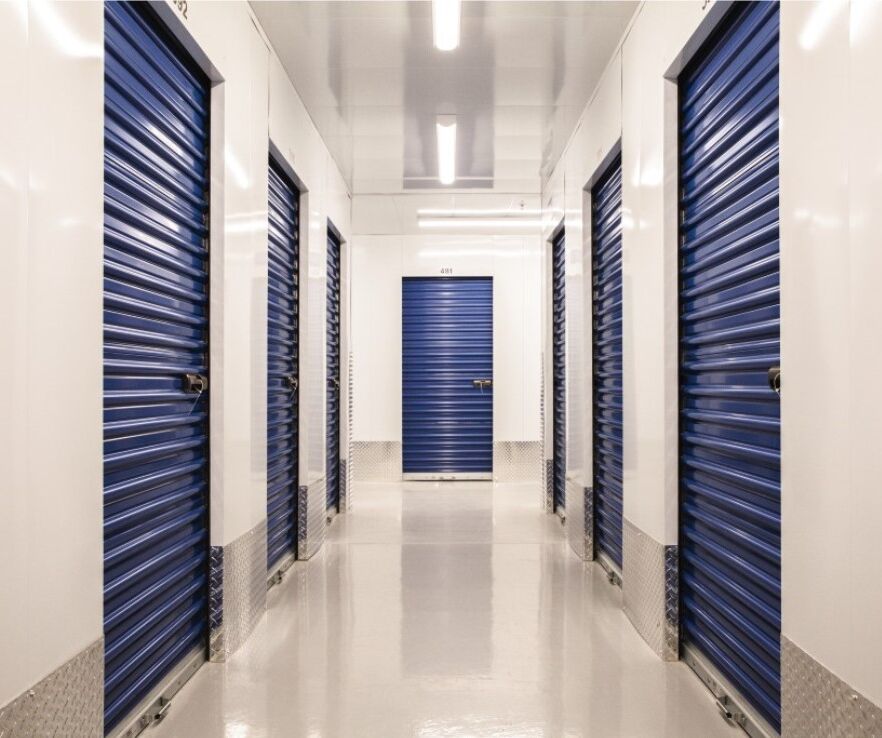

Model 770-SS Self-storage Door
- Max. standard width – 10′ (3,048 mm)
- Max. standard height – 10′ (3,048 mm)
- Counterbalance assembly – 9″ (229 mm), steel stepped rings to minimize headroom and enhance door operation.
- Universal guides – 18-gauge, roll-formed galvanized steel with pre-punched through-hole design for mounting to concrete, masonry, steel or wood jambs
- Headplate – 11-gauge steel
- The quick-connect bottom bar stops – 4-gauge galvanized steel with roller bearings.
- Lock – Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*), right or left-handed.
- Cylinder locks and padlocks not provided
Enhancements
Operation
- Chain hoist with reduced drive
- Motor
Safety Focused
Locking Options
- Double shackle
- Left side lock and step plate
- Cylinder
Wind Load (optional)
Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.
Product Literature
Brochure Models 770SS, 780CD & 790CW
Brochure Full Line Rolling Doors
User Manual & Installation
Installation Instructions Model 770SS (220152)
Installation Instructions Models 780CD & 790CW (220153)
Warranty
Model 790-CW
Model 780CD
Model 770SS
Model Comparison
Standard Construction | 790-CW | 780-CD | 770-SS |
|---|---|---|---|
| Max. Width* | 20 | 16′ | 10” |
| Max. Height* | 16′ | 16′ | 10′ |
| Max. Steel Gauge | 26 | 26 | 26 |
| Material | Galvanized Stee | Galvanized Stee | Galvanized Stee |
| Operation | Manual | Manual | Manual |
| Locking | Dual slide bolt | Dual slide bolt | Exterior curtain slide lock |
| Counterbalance Assembly | 12″ | 12″ | 0″ |
| Guides & HeadPlate | 14-gauge | 18-gauge | 18-gauge |
| Bottom Bar | Extruded aluminum reinforced with steel, roll-formed angles | Extruded aluminum reinforced with steel, roll-formed angles | Quick-connect bottom bar stops – 14-gauge galvanized steel, with roller bearings |
| R-Value* (optional) | No | 4 | 4 |
| Wind Load** (optional) | Yes** | Yes** | Yes** |
*Cylinder locks and padlocks not provided
**FBC, TDI, Miami Dade approved wind load reinforcement is available for hurricane-prone areas
***Only internally approved wind load reinforcement is available to withstand conditions in wind-prone areas
