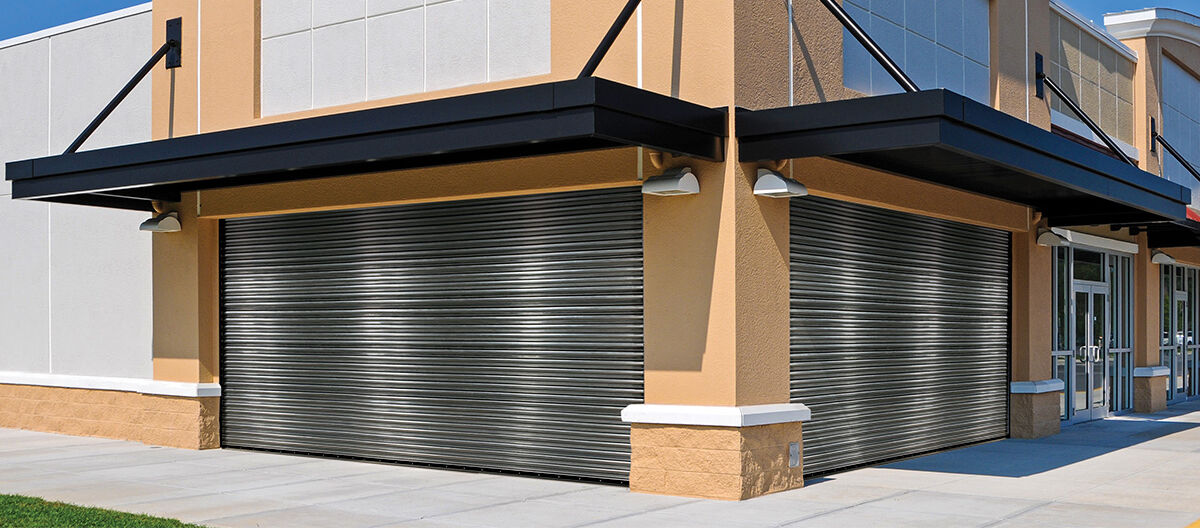

Rolling Steel Storm Shelter Doors
Our Rolling Steel Shelter Door series is designed to provide the ultimate protection for a variety of important applications. Whether you need to secure a school, emergency operations center, storefront, or saferoom, these doors have covered you.
Strength • Security • Shelter
Our shelter doors are certified to withstand the most extreme conditions, including tornadoes (800F), fire (800FR), and forced entry (800FE), providing a combination of safety, function, and durability.
Ideal Applications Include
Emergency Operations Centers
Storm Shelters
Storefronts
Safe Rooms
Schools / Gymnasiums
Rolling Steel Storm Shelter Doors Overview
Rolling Steel Storm Shelter series is designed to meet stringent design standards relative to safety and shelter, ensuring that these buildings are protected in times of emergency.
Door Options
- Galvanized steel bottom bar and angles
- RAL Premium and hardened powder coat finishes
- Mount Type: Bench, Top or Wall Mount
Actuators
- Photo eyes for additional obstruction detection
- Motion Detector
- Loop Detector
- Horns and strobes
- Key Switch
- Pull Switch
- Additional Push Button Stations
- Transmitter
Windload Ratings
End stiles wrap around the exterior of each section to protect the section face from wear caused by the door jambs
Comes in a wide variety of sizes and configurations that provide durability and value
The exterior skin helps increase strength while enhancing the building’s visual appearance
Warranty
36-Months; 10K cycle limited on door system
Standard Exterior Color
Finish: PowderGuard® powder coat in gray
Gray
Powder Coat Color Options
197 optional RAL powder coat color options are available. The actual door color may vary from the digital representation shown here. Color samples are available; please get in touch with us.
Tornado Resistant Door Model 800F

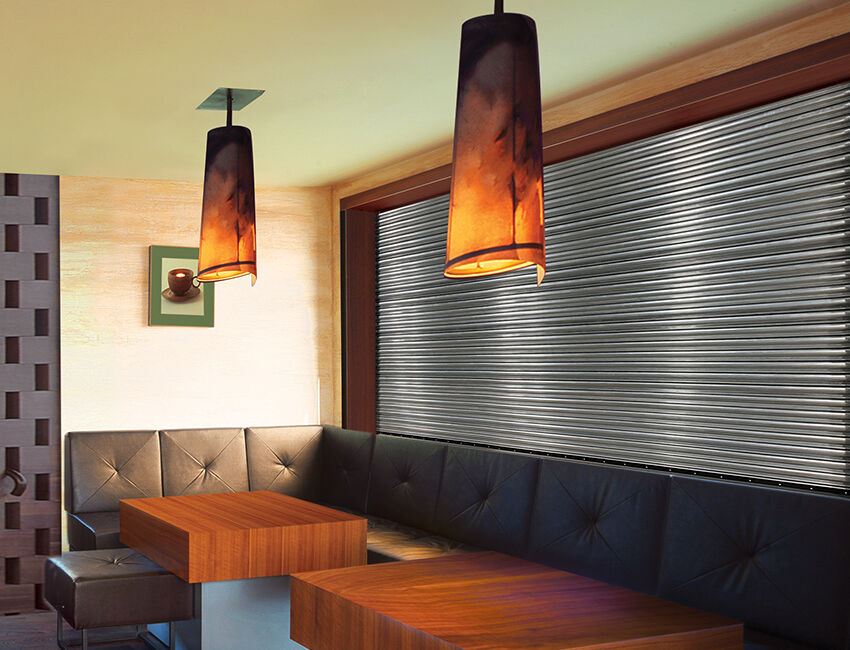

Fire Rated Door Model 800FR

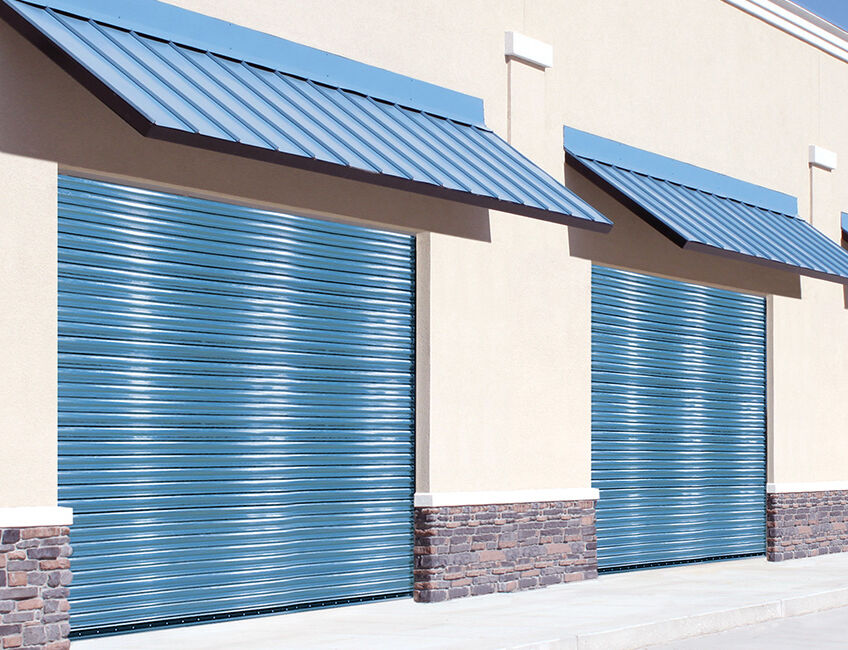

Forced Entry Door Model 800FE
Standard Construction | Model 800F | Model 800FR | Model 800FE |
| Max. Width | 16′ | 11′ | 16′ |
| Max. Height | 16′ | 11′ | 16′ |
| Curtain | 12-gauge galvanized steel | 12-gauge galvanized steel | 12-gauge galvanized steel |
| Slat Profile | 6′ curved slats | 6′ curved slats | 6′ curved slats |
| Finish | Gray Powder Coat | Gray Powder Coat | Gray Powder Coat |
| Hood | 24-gauge galvanized steel | 24-gauge galvanized steel | 24-gauge galvanized steel |
| Standard Mounting | Face-of-wall | Face-of-wall | Face-of-wall |
| Operation | Genie GCL-GH operator | Genie GCL-H fire door operator | Genie GCL-GH operator |
| Control Panel | Standard 3 button control | Standard 3 button control | Standard 3 button control |
| Standard Spring | 10,000 cycle | 10,000 cycle | 10,000 cycle |
| Guides | Three steel angles | Three steel angles | Three steel angles |
| Bottom Bar | Double angle steel | Double angle steel | Double angle steel |
| Obstruction | Wireless Sensing Edge | Wireless Sensing Edge | Wireless sensing Edge |
| Ratings | *Windload: Tested: +/- 300psf (ICC-500/FEMA 361) Tornado: +/- 250psf (ICC-500/FEMA 361) Hurricane: +/- 250psf (ICC-500/FEMA 361)Impact Rated: Up to 100mph: +/- 200psf (ICC-500/FEMA 361) | *Windload: Tested: +/- 300psf (ICC-500/FEMA 361) Tornado: +/- 250psf (ICC-500/FEMA 361) Hurricane: +/- 200psf (ICC-500/FEMA 361)Warnock Hersey(WH): UL 10B NFPA 252 and CAN/ULC S104 | Fire rated for up tp 4 hoursImpact Rated: Up to 100mph | Forced Entry ASTM F3038: ASTM F3038-21 | Up to 30 minutes Ballistics: .22 & .38 Special (NIJ 0108.01) |
