Accordion Folding Grilles Model 610

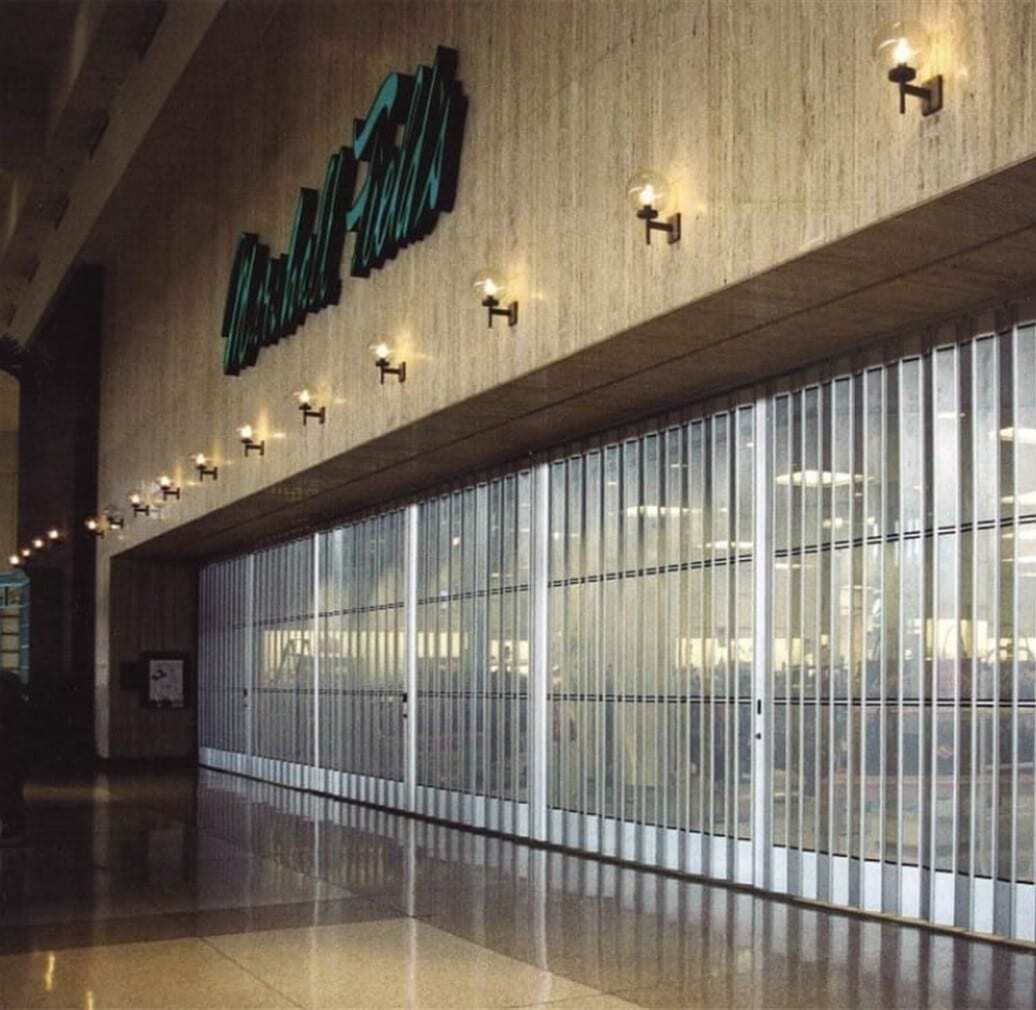

Accordion Folding Grilles feature side-folding closures with various options and patterns to fit your project needs. These side-folding grilles are ideal for applications that require a secure barrier against theft and debris.
Side Folding Grilles Provide a Secure Full-Closure Retail Design Solution.
Accordion Folding Grilles Model 610
Three curtain types are available in various materials and can be configured in several layouts, including special radius curves and S-curves. Side Folding Grilles provides a secure, full-closure retail design solution.
Durable Construction
- Rugged construction and quality materials assure long life and less costly maintenance
- Smooth operation with a durable hardened track
- Open curtain allows free air circulation
Design Flexibility
- Built to fit your opening size, operation, and option preferences to align with the style of your building.
- Full-height aluminum for maximum security
- Clear, non-breakable polycarbonate for some visibility
- Clear tempered glass for full visibility
- Perforated steel panels for full ventilation
- The curtain stores in a compact coil at the head of an opening to maximize the use of the interior space
- Curved tracks follow almost any degree of track curvature
Installer Friendly
- EZ line comes 90% assembled and is fitted with 6-inch pockets to save time and reduce costs.
- Locking posts supplied with a 1″ mortise cylinder can be easily changed onsite.
Warranty
- 24-Months Limited Warranty
Ideal Applications Include
Malls / Retail
Airports
Food Courts
Sports complex
Schools
Parking Garage
Grille Design
Standard Line Grille Patterns – Full-closure
- Perforated
-
- Curtain: 7” (178 mm) standard width, 0.05″ (1.27 mm) perforated aluminum panels with 3 /16″ (5 mm) dia. Holes on ¼” (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 51% of 6 1/8″ (156 mm) viewable area.
- Polycarbonate
-
- Curtain: 7” (178 mm) standard width, 1 /16″ (1 mm) thick fire retardant polycarbonate that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 100% of 6 1/8″ (156 mm) viewable area.
- Glass
-
- Curtain: 7” (178 mm) standard width, 1/8″ (3 mm) thick tempered glass that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 100% of 5 3/8″ (137 mm) viewable area.
- Solid Aluminum
-
- Curtain: 7” (178 mm) standard width, 0.078″ (2 mm) thick solid aluminum that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 0% of 6 1/8″ (156 mm) viewable area.
Slim Line Grille Patterns – Full-closure
- Perforated
-
- Curtain: 4” (102 mm) standard width, 0.05″ (1.27 mm) perforated aluminum panels with 3 /16″ (5 mm) dia. holes on 1/4″ (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 100% of 3-1/2″ (89 mm) viewable area.
- Polycarbonate
-
- Curtain: 4” (102 mm) slim width, 1/16″ (1 mm) thick fire-retardant polycarbonate that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 100% of 3-1/2″ (89 mm) viewable area.
- Solid Aluminum
-
- Curtain: 4” (102 mm) standard width, 0.07″ (1.78 mm) thick solid aluminum that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 0% of 3 ½” (89 mm) viewable area.
Brick or Straight Grille Patterns – Open-air
- SWBB – Brick
-
- Space between tubes 2 15/16″ (73.5 mm)
- Full panel width 7″ (178 mm)
- Top plate 4″ (102 mm)
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Spacer plate 1” (25.4 mm)
- Spacer tube ½” (12.7 mm) x 12” (305 mm) Bottom plate 4” (102 mm)
- Max Width: Unlimited
- Max Height: 168″ (4267 mm)
- SWBS – Straight
- Space between tubes 1 9/16” (40 mm)
- Full panel width 4” (102 mm)
- Top plate 4” (102 mm)
- Top spacer tube size varies from curtain pattern to accommodate the specific height.
- Spacer plate 1” (25.4 mm)
- Spacer tube ½” (12.7 mm) x 12” (305 mm) Bottom plate 4” (102 mm)
- Max Width: Unlimited
- Max Height: 168″ (4267 mm)
- S126B – Brick and S126S – Straight
-
- Space between tubes 2 ½” (63.5 mm)
- Full panel width 6 5/16” (160 mm)
- Top plate 5 ¼” (133 mm); 13 gauge
- Top spacer tube size varies from curtain pattern to accommodate the specific height.
- Aluminum rod 5/16” (3.17 mm)
- Aluminum link 1/8” x 5/8” x 6 11/16” (3.17 x 15.9 x 170 mm)
- Spacer tube ½” x 12” (12.7 x 305 mm)
- Bottom plate 5 ¼” (133 mm); 13 gauge
- On Center 6” (152 mm)
- Max Width: Unlimited
- Max Height: 168″ (4267 mm)
- SL154 – Straight/Slim Line
-
- Space between tubes 3 ½” (89 mm)
- Full panel width 4” (102 mm)
- Top plate 2” (51 mm); 13 gauge
- Aluminum rod 5/16” (3.17 mm)
- Aluminum link 1/8” x 5/8” x 4 1/8 ” (3.17 x 15.9 x 105 mm)
- Spacer tube ½” x 15” (12.7 x 381 mm)
- Bottom plate 2” (51 mm)
- On Center 4” (102 mm)
- Max Width: Unlimited
- Max Height: 168″ (4267 mm)
EZ Grille Patterns
- EZ Vent – Full-closure
-
- Curtain: 4” (102 mm) standard width, 0.05″ (1.27 mm) perforated aluminum panels with 3 /16″ (5 mm) dia. holes on 1/4″ (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 100% of 3-1/2″ (89 mm) viewable area.
- EZ Clear – Full-closure
-
- Curtain: 4” (102 mm) slim width, 1/16″ (1 mm) thick fire-retardant polycarbonate that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 100% of 3-1/2″ (89 mm) viewable area.
- EZ Guard – Full-closure
-
- Curtain: 4” (102 mm) standard width, 0.07″ (1.78 mm) thick solid aluminum that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
- Visibility: 0% of 3-1/2″ (89 mm) viewable area.
- EZ Grille – Open-air
-
- Curtain: 4″ (102mm) wide with 2-inch (51mm) high bottom and top plates, truss-like aluminum. Panels connected with 1/8 x 5/8 x 4-1/4 inch aluminum links vertically spaced 15 inches (381 mm) apart onto 5/16 inch (8 mm) aluminum horizontal rods spaced 3-1/2 inches (89 mm) on center and covered by 1/2 inch (13 mm) aluminum tubes. The curtain is secured to the pocket; no end post is required. Straight pattern.
Visibility: 97% of 3-1/2″ (89 mm) viewable area.
