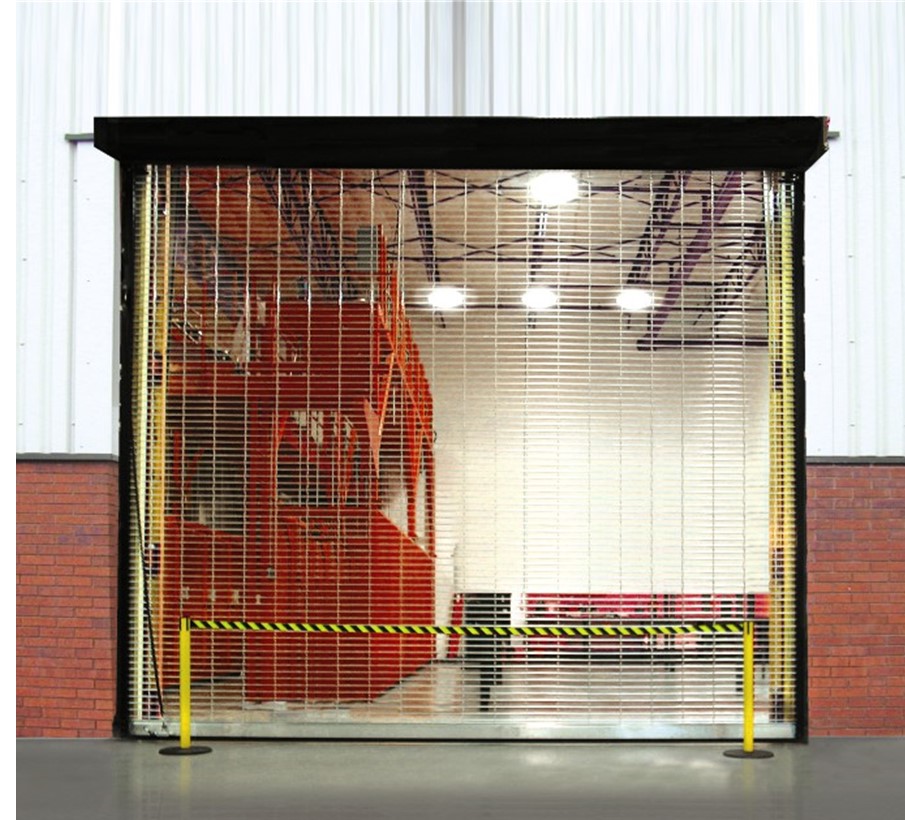

Advanced Rolling Grilles Model 600 ADV

Wayne Dalton’s Advanced Rolling Grille is three times faster than a standard rolling grille, with an opening time of 24” per second. Our springless design provides a smooth and reliable operation, and ideal applications are high cycle or high traffic areas, such as parking garages, auto dealerships, warehouses, manufacturing facilities, and airports.

.

Rolling Grille, Advanced Performance, Model 600 ADV, Lattice Panel

Advanced Rolling Grilles Model 600 ADV, Wayne Dalton of Windsor
High Traffic Solution with Lasting Durability

In today’s marketplace, security and low maintenance are key to business survival in an increasingly competitive environment. To assist your business in driving these key initiatives,

Advanced Rolling Grilles Model 600 ADV

Wayne Dalton provides an Advanced Performance solution to create a high-performance environment. Model 600 ADV provides lasting durability and security, making it your top choice for an Advanced Rolling Grille. Ideal for high cycle applications.

Advanced Rolling Grilles Model 600 ADV, Wayne Dalton of Windsor
High-Quality Design
  • The wear resistance guide system has UHMW wear strips on both the outer and middle angles of the guides to reduce wear between the curtain and guide significantly.
  • Springless barrel high cycle design allows for the door system to be opened and closed frequently creating asset longevity and reliable performance over extended time without having to incur the cost of spring replacement.
  • The direct-drive heavy-duty gearbox system is a direct-mounted hypoid gear drive that eliminates the wear and tear from that of a conventional chain and sprocket drive system.
Security
  • High Strength links and solid rods provide security without sacrificing visual access or air exchange.
Installer Friendly
  • The LCD control panels’ advanced diagnostics are used for fast and easy setup and troubleshooting
Safety Focused
  • Patent-pending built-in drop stop device provides additional peace-of-mind against uncontrolled curtain travel in a high vehicular traffic area
  • A Fail-safe bottom safety edge is a continuously monitored sensing edge equipped with a mandatory reversing or sensing edge to prevent entrapment
  • Heavy-Duty Commercial Photo Eyes are photoelectric sensors that reverse the downward motion of the grille when a person or object enters its path
Warranty
  • 60-Month Limited Warranty on motor
  • 24-Month/300,000 cycles Limited Warranty on door components

Ideal Applications Include

Warehouses / Manufacturing

Parking Garages

Airports

Government& Public Facilities

Auto Dealerships

Retail / Mail Shops

Max. Width*: 30 4″‘

Max. Height*: 14′ 4″

Total Area**: 240 ft2*

Spring Cycle: 300,000

Opening Speed: 24″ per second

Closing Speed: 12″ per second

Mounting: Face of wall

Operation: Direct drive, motor/gearbox/brake assembly with a manual hand chain for power outages

Supply Voltage: 230V AC 3-phase

Control Panel: NEMA 4X rated; variable frequency drive, self-diagnostics, timer to close programming options and non-resettable cycle counter are included

Curtain: Heavy duty galvanized steel links and rods with mill aluminum spacer tube

Curtain: Pattern Straight lattice 9″ center vertical links with 2″ center rod spacing

Door Roll: Directly driven, springless steel tube roll with integral shafts, keyed on the drive end and supported by self-aligning greaseable sealed bearings

Bottom Bar: Tubular extruded aluminum with mill finish

Guides: 3 structural steel angles

Hood: 24-gauge

Powder Coating: Black

Safety Features:
  • Built-in brake mechanism
  • Photoelectric sensors with commercial-grade guards
  • Wireless monitored safety edge Motor cover

Operation

Supply Voltage

  • 208V AC 1PH†
  • 230V AC 1PH
  • 460V AC 3PH†
  • 575V AC 3PH†

*horsepower is appropriate to size and weight of door
† May require stand-alone mounted transformer

Control Panel

  • IP65v (NEMA 4/4X equivalent)

Safety Focused

Monitored electric sensing edge

Photoelectric sensors

Actuators

  • Loop Detectors
  • Radio Control
  • Push Buttons
  • Motion Detectors
