Genie Commercial Hoist Operators
Genie’s Hoist Operators are designed for high or full-lift sectional and rolling doors that have up to 60-cycle/hour duty requirements. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard for productivity.
Innovative Features and Reliable Performance Come Standard
Genie’s automatic door operators are manufactured to meet the performance requirements of most commercial and industrial doors, offering precise control of your door system for years of trouble-free operation. We offer a broad line of electric door operators which suit new construction or retrofit applications, as well as unusual or special requirements. Genie commercial operators are UL 325-2010 compliant.
Genie Commercial Hoist Operators
Models by Duty Cycle
Heavy-Duty Hoist Operators
GCL-GH – Heavy-Duty Gear Head Hoist Operator
The GCL-GH is designed for high or full-lift sectional and rolling doors that have up to 60-cycle/hour duty requirements. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard for productivity.
GCL-GH Advantage
MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
- Single Phase: 115/208/230V AC
- Three Phase: 208/230/460V AC
- 575V AC voltage models available separately
Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.
LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power.
Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.
Standard Features
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Max run timer automatically adjusts to up and down run time.
- Heavy-duty worm gearbox for primary reduction.
- Delay on reverse.
- 16-character LCD display.
- UL 325 2010 approved.
- Advanced radio receiver displays and stores activation by a transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Emergency hoist for manual operation. Easily changed infield from left to right hand.
- DC disc brake with progressive braking.
UL 325 2010 Approved
Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
Construction
Motor
- AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
Drive
- Primary – Heavy-duty worm gear running in an oil bath.
- All-weather synthetic lube for low/high-temperature operation.
- Secondary – Heavy-duty chain and sprocket reduction.
Brake
- 24V DC disc brake standard.
Precision Radial Ball Bearings
- Used exclusively throughout the operator powertrain.
Emergency Hoist Manual Operation
- Electrically interlocked manual hoist with floor level disconnect.
Pre-wired to accept
- Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.
On-Board timed close
- Set via LCD display from 2 seconds to 5 minutes.
Accessories and Options
Timer to Close Module
- Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.
Auxiliary Output Module
- Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.
Intellicode® Transmitters
- Available in single up to four buttons, or open/close/stop models.
Environmental Modifications
- TENV and TEFC motors and/or NEMA 4 and NEMA 4X are available to be ordered from the factory.
UL 325 2010 Approved Reversing Devices
- The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
- Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
- MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
- NEMA 4 Photoeyes P/N OPAKPEN4GX.S
- Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S
1 — Default device when the operator is ordered.
Product Information:
Shop Drawings:
- RS – FOH Mounting
- RS – WM Chain Couple
- RS Door & Operator Layout
- Sect – Door & Operator Layout
- Sect – WM Chain Couple
- Centermount – Door & Operator Layout
- Centermount – WM Chain Couple
- 3HP RS – Door & Operator Layout
- 3HP RS – FOH Mounting
- 3HP RS – WM Chain Couple
- 3HP Sect – Door & Operator Layout
- 3HP Sect – WM Chain Couple
- 3HP Centermount Door & Operator Layout
- 3HP Centermount – WM Chain Couple
Standard-Duty Hoist Operators
GCL-H – Standard-Duty Hoist Operator
The GCL-H is designed for high or full-lift sectional and rolling doors that have a 30-cycle/hour or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.
GCL-H Advantages
MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
- Single Phase: 115/208/230V AC
- Three Phase: 208/230/460V AC
- 575V AC voltage models available separately
Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.
LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
EZ Limit® provides for push-to-set limits that stay synchronized with the door through a long-term loss of power.
Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.
Standard Features
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Max run timer automatically adjusts to up and down run time.
- TensiBelt® primary reduction.
- Delay on reverse.
- 16-character LCD display.
- UL 325 2010 approved.
- Advanced radio receiver displays and stores activation by a transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Emergency hoist for manual operation. Easily changed infield from left to right hand.
UL 325 2010 Approved
Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
Construction
Motor
- AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.
Drive
- Primary – TensiBelt® auto tensioning poly-V J-belt. Secondary – Chain and sprocket reduction.
Brake
- 24V DC disc brake standard.
Friction Clutch
- Adjustable clutch to help protect against door and operator damage.
Precision Radial Ball Bearings
- Included in critical areas throughout the powertrain.
Emergency Hoist Manual Operation
- Electrically interlocked manual hoist with floor level disconnect.
Pre-wired to accept
- Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.
On-Board Timed Closed
- Set via LCD display from 2 seconds to 5 minutes.
Accessories and Options
Timer to Close Module
- Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.
Auxiliary Output Module
- Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.
Intellicode® Transmitters
- Available in single up to four buttons, or open/close/stop models.
Environmental Modifications
- TENV and TEFC motors and/or NEMA 4 and NEMA 4X are available to be ordered from the factory.
UL 325 2010 Approved Reversing Devices
- The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
- Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
- MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
- NEMA 4 Photoeyes P/N OPAKPEN4GX.S
- Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S
1 — Default device when the operator is ordered.
Product Information:
Shop Drawings:
GCL-Fire Door Operator
The GCL Fire Door Operator is designed for rolling fire doors that have a 30-cycle/hour or fewer duty requirements. Advanced features and robust mechanical design combine to provide the next evolution in fire door operators.
GCL Fire Door Operator Advantages
Floor level auto-reset. No manual intervention is required to reset the fire door operator after a fire alarm or drop test. Upon reset of the fire alarm signal and test key switch, the fire door may be motor operated normally.
24-hour battery backup provides extra protection in the event of a power loss.
Configuration settings for automatic door opening after reset of the test key switch.
User-configured time delay after an alarm or test signal before activation of door drop.
Sash chain release ready for jurisdictions that require a fusible link.
Intuitive configuration and troubleshooting of fire door and standard door functions through the built-in LCD Display.
The operator comes with a horn/strobe and test key switch, eliminating the need to purchase these items separately.
MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site
- Single Phase: 115/208/230V AC
- Three Phase: 208/230/460V AC
- 575V AC voltage models available separately
Modular design with optional expansion boards for an advanced timer to close, or auxiliary output functionality.
LCD display with intuitive setup menu. Provides real-time status and troubleshooting assistance.
EZ Limit® provides for the push to set limits that remain synchronized with door even during a long term loss of power and after activation of fire door drop.
TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
Open/close/stop and setup keys included on the control board. Keeps all controls used for setup conveniently near the LCD display.
Allows for monitored entrapment protection and momentary operation when used with select edge-sensing devices.
Intuitive configuration and troubleshooting of fire door and standard door functions through the built-in LCD Display.
Standard Features
- Fire door operator module to control door release.
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Governor controlled door descent.
- Maximum run timer automatically adjusts to up and down run time.
- TensiBelt™ primary reduction.
- Delay on reverse.
- 16-character LCD display.
- UL 325 Listed and FM Approved
- Advanced radio receiver displays and stores activation by a transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Emergency hoist for manual operation; available in right or left hand.
UL 325 2010 Approved
Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
Construction
Motor
- AC open drip-proof motor. Motor replaceable without changing limits. Thermally protected.
Drive
- Primary – TensiBelt® auto tensioning poly-V J-belt. Secondary – chain and sprocket reduction.
Brake
- 24V DC disc brake standard.
Friction Clutch
- Adjustable clutch to help protect against door and operator damage.
Precision Radial Ball Bearings
- Included in critical areas throughout the powertrain.
Emergency Hoist Manual Operation
- Electrically interlocked manual hoist with floor level disconnect.
Pre-wired to accept
- Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.
Accessories and Options
Timer to Close Module*
- Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.
Auxiliary Output Module*
- Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing or both.
Intellicode® Transmitters
- Available in single up to four buttons, or open/close/stop models.
UL 325 2010 Approved Reversing Devices
- The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. The following devices, when purchased through Genie, are UL Approved for use to meet this requirement: MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
Notification Devices
- Light, horn, and horn/strobe for audible and visual signaling of an alarm condition. One horn/strobe device is included with the GCL Fire Door Operator.
Detection Devices
- Heat detectors and heat/smoke detectors are available for detecting alarm conditions due to heat or smoke.
*Only one auxiliary module can be added to the GCL Fire Door Operator
Medium-Duty Hoist Operators

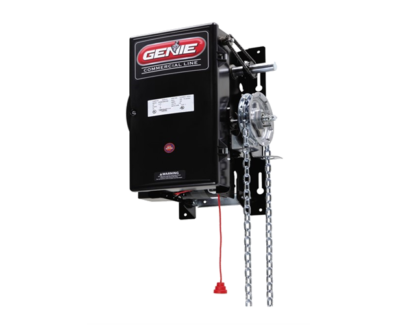

GCL-MH – Medium-Duty Hoist Operator
The GCL-MH is designed for high or full-lift sectional and rolling doors that have limited-duty cycle requirements. Advanced features and robust mechanical design combine to provide a medium-duty operator that is the new standard in the industry.
GCL-MH Advantage
Rated for 15 cycles per hour operation, maximizing the performance of a medium-duty operator.
Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
Optional Intellicode® plug and play receiver learns up to 50 transmitters. Learn and delete individual transmitters directly from LCD display.
TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
Motor with built-in thermal protection and ball bearing drive end. Provides overload protection and bearings extend the life of motor over typical bushings.
LCD display with intuitive setup menu. Provides real-time status and trouble-shooting assistance.
Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.
Standard Features
- Optical limit system with linear travel nuts.
- Max run timer automatically adjusts to up and down run time.
- TensiBelt® primary reduction.
- Delay on reverse.
- 16-character LCD display.
- UL 325 2010 approved.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Emergency hoist for manual operation. Available right hand only.
UL 325 2010 Approved
Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.
Construction
Motor
- 1/2 HP, AC capacitor starts/run the motor. Motor replaceable without changing limits.
Brake
- AC solenoid-actuated band brake.
Drive
- Primary – TensiBelt® auto tensioning poly-V J-belt. Secondary – Chain and sprocket reduction
Friction Clutch
- Adjustable clutch to help protect against door and operator damage.
Precision Radial Ball Bearings
- Included in critical areas throughout the powertrain.
Emergency Hoist Manual Operation
- Electrically interlocked manual hoist with floor level disconnect.
Pre-wired to accept
- Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches
Accessories and Options
Timer to Close Module
- Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.
Auxiliary Output Module
- Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.
315MHz Receiver Module
- Intellicode® I radio receiver that is 315Mhz and capable of storing 50 single-button and/or 50 open-close-stop transmitters with the ability to add or delete transmitters and identify and store activating transmitter ID(s).
UL 325 2010 Approved Reversing Devices
- The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
- Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
- MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
- NEMA 4 Photoeyes P/N OPAKPEN4GX.S
- Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S
1 — Default device when the operator is ordered.
Call us today at (519) 735-7790
Or Send Us an Email on the Form
Get A Quote Today
Only fill out this form if you are in the Windsor, Ontario Canada area…for all other areas in Canada and the U.S.A., please go to Wayne Dalton Dealer Finder and you will find a dealer in your area.
Wayne Dalton Sales Center of Windsor – 13425 Desro Dr, Tecumseh, ON N9K 0B7, Canada
Call us today at (519) 735-7790
Or Send Us an Email on the Form
Get A Quote Today
Only fill out this form if you are in the Windsor, Ontario Canada area…for all other areas in Canada and the U.S.A., please go to Wayne Dalton Dealer Finder and you will find a dealer in your area.
Wayne Dalton Sales Center of Windsor – 13425 Desro Dr, Tecumseh, ON N9K 0B7, Canada
