Genie Commercial Jackshaft Operators

Genie’s Jackshaft Operators are designed for high or full-lift sectional and rolling doors that have up to 60-cycle/hour duty requirements. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard for productivity.

Innovative Features and Reliable Performance Come Standard

Genie’s automatic door operators are manufactured to meet the performance requirements of most commercial and industrial doors, offering precise control of your door system for years of trouble-free operation. We offer a broad line of electric door operators which suit new construction or retrofit applications, as well as unusual or special requirements. Genie commercial operators are UL 325-2010 compliant.

Genie Commercial Jackshaft Operators

Models by Duty Cycle

Standard-Duty Jackshaft Operators

Commercial Operators - Wayne Dalton of Windsor Garage Doors & Service

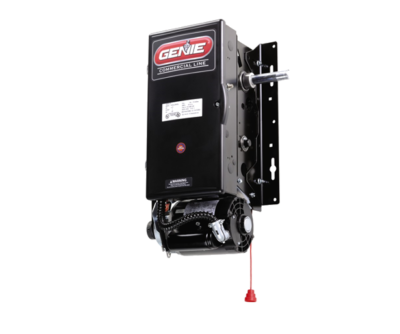

GCL-J – Standard-Duty Jackshaft Operators

The GCL-J is designed for high or full-lift sectional and rolling doors that have 30-cycle or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.

GCL-J Advantages

MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site.

  • Single Phase: 115/208/230V AC
  • Three Phase: 208/230/460V AC
  • 575V AC voltage models available separately

Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.

LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.

Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.

EZ Limit® provides for push-to-set limits that stay synchronized with the door through a long-term loss of power.

TensiBelt® primary drive reduction eliminates the need to adjust belt tension.

Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.

Standard Features
  • EZ Limit® electro-mechanical limits.
  • MultiVolt® voltage simplification.
  • Max run timer automatically adjusts to up and down run time.
  • TensiBelt® primary reduction.
  • Delay on reverse.
  • 16-character LCD display.
  • UL 325 2010 approved.
  • Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
  • 3-button control station.
  • 2-year/20,000 cycle warranty.
  • Programmable mid-stop.
  • Pull cord release for emergency manual operation.
UL 325 2010 Approved

Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.

Construction

Motor

  • AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.

Drive

  • Primary – TensiBelt® auto tensioning poly-V J-belt. Secondary – Chain and sprocket reduction.
  • Secondary – Chain and sprocket reduction.

Brake

  • 24V DC disc brake standard.

Friction Clutch

  • Adjustable clutch to help protect against door and operator damage.

Precision Radial Ball Bearings

  • Included in critical areas throughout the powertrain.

EmergencyManual Operation

  • Pull cord disconnect disengages drive allowing the door to be moved manually while maintaining limits.

Pre-wired to accept

  • Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.

On-Board Timed Closed

  • Set via LCD display from 2 seconds to 5 minutes.

Accessories and Options

Timer to Close Module

  • Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.

Auxiliary Output Module

  • Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.

Intellicode® Transmitters

  • Available in single up to four buttons, or open/close/stop models.

Environmental Modifications

  • TENV and TEFC motors and/or NEMA 4 and NEMA 4X are available to be ordered from the factory.

UL 325 2010 Approved Reversing Devices

  • The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
  • Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
  • MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
  • NEMA 4 Photoeyes P/N OPAKPEN4GX.S
  • Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S

1 — Default device when the operator is ordered.

Medium-Duty Jackshaft Operators

Jackshaft Operators, Genie Commercial Opener, Wayne Dalton of Windsor
GCL-MJ – Medium-Duty Jackshaft Operators

The GCL-MJ is designed for high or full-lift sectional and rolling doors that have limited-duty cycle requirements. Advanced features and robust mechanical design combine to provide a medium-duty operator that is the new standard in the industry.

GCL-MJ Advantages

Rated for 15 cycles per hour operation, maximizing the performance of a medium-duty operator.

Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.

Optional Intellicode® plug and play receiver learns up to 50 transmitters. Learn and delete individual transmitters directly from the LCD display.

TensiBelt® primary drive reduction eliminates the need to adjust belt tension.

Motor with built-in thermal protection and ball bearing drive end. Provides overload protection and bearings extend the life of motor over typical bushings.

LCD display with intuitive setup menu. Provides real-time status and trouble-shooting assistance.

Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.

Standard Features
  • Optical limit system with linear travel nuts.
  • Max run timer automatically adjusts to up and down run time.
  • TensiBelt® primary reduction.
  • Delay on reverse.
  • 16-character LCD display.
  • UL 325 2010 approved.
  • 3-button control station.
  • 2-year/20,000 cycle warranty.
  • Programmable mid-stop.
  • Pull-cord release for emergency manual operation.
UL 325 2010 Approved

Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.

Construction

Motor

  • 1/2 HP, AC capacitor starts/run the motor. Motor replaceable without changing limits.

Drive

  • Primary – TensiBelt® auto tensioning poly-V J-belt.
  • Secondary – Chain and sprocket reduction.

Brake

  • AC solenoid-actuated band brake.

Friction Clutch

  • Adjustable clutch to help protect against door and operator damage.

Precision Radial Ball Bearings

  • Included in critical areas throughout the powertrain.

Emergency Manual Operation

  • Pull-cord disconnect disengages drive allowing the door to be moved manually while maintaining limits.

Pre-wired to accept

  • Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.

Accessories and Options

Timer to Close Module

  • Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.

Auxiliary Output Module

  • Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.

315MHz Receiver Module

  • Intellicode® radio receiver that is 315Mhz and capable of storing 50 single-button and/or 50 open-close-stop transmitters with the ability to add or delete transmitters and identify and store activating transmitter ID(s).

UL 325 2010 Approved Reversing Devices

  • The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
  • Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
  • MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
  • NEMA 4 Photoeyes P/N OPAKPEN4GX.S
  • Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S

1 — Default device when the operator is ordered.
