Genie Commercial Trolley Operators

Genie’s Trolley Operators are designed for standard lift sectional doors that have a 30-cycle/hour or less duty requirement. Advanced features and robust mechanical design combine to provide a standard duty operator r that sets a new standard for productivity.

Innovative Features and Reliable Performance Come Standard

Genie’s automatic door operators are manufactured to meet the performance requirements of most commercial and industrial doors, offering precise control of your door system for years of trouble-free operation. We offer a broad line of electric door operators which suit new construction or retrofit applications, as well as unusual or special requirements. Genie commercial operators are UL 325-2010 compliant.

Models by Duty Cycle

Heavy-Duty Trolley Operators

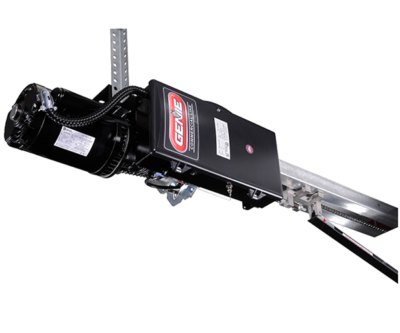

GCL-GT – Heavy-Duty Gear Head Operators

The GCL-GT is designed for standard lift sectional doors that have up to 60-cycle/hour duty requirements. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard for productivity.

GCL-GT Advantages

GCL-GT Advantage

MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site.

Single Phase: 115/208/230V AC
Three Phase: 208/230/460V AC
575V AC voltage models available separately

Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.

LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.

Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.

EZ Limit® provides for push-to-set limits that stay synchronized with the door through a long-term loss of power.

The low-profile height of the power head maximizes the clearance for vehicular traffic.

Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.

The quiet trolley carriage with high-strength wear pads eliminates the need to apply grease to rails.

Standard Features

EZ Limit® electro-mechanical limits.
MultiVolt® voltage simplification.
Max run timer automatically adjusts to up and down run time.
Heavy-duty worm gearbox for primary reduction.
Delay on reverse.
16-character LCD display.
UL 325 2010 approved.
Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
3-button control station.
2-year/20,000 cycle warranty.
Programmable mid-stop.
Drawbar disconnect for emergency manual operation.
DC disc brake with progressive braking.

UL 325 2010 Approved

Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.

Construction

Motor

AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.

Drive

Primary – Heavy-duty worm gear running in oil bath
All-weather synthetic lube for low/high temperature operation.
Secondary – Heavy-duty chain and sprocket reduction.

Brake

24V DC disc brake standard.

Precision Radial Ball Bearings

Used exclusively throughout the operator powertrain.

Friction Clutch

Adjustable clutch to help protect against door and operator damage.

Rail Assembly

2″ heavy-gauge roll-formed angle with nylon chain guides.

Emergency Disconnect

Drawbar disconnect via pull cord for manual operation of the door.

Pre-wired to accept

Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.

On-Board timed close

Set via LCD display from 2 seconds to 5 minutes.

Timer to Close Module

Timed close set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.

Accessories & Options

Accessories and Options

Timer to Close Module

Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.

Auxiliary Output Module

Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.

Intellicode® Transmitters

Available in single up to four buttons, or open/close/stop models.

Environmental Modifications

TENV and TEFC motors and/or NEMA 4 and NEMA 4X are available to be ordered from the factory.

UL 325 2010 Approved Reversing Devices

The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
NEMA 4 Photoeyes P/N OPAKPEN4GX.S
Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S

1 — Default device when the operator is ordered.

Documents

Product Information:

Shop Drawings:

Standard Duty Trolley Operators

GCL-T – Standard -Duty Trolley Operators

The GCL-T is designed for standard lift sectional doors that have 30-cycle or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.

GCL-GH Advantages

GCL-T Advantage

MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site.

Single Phase: 115/208/230V AC
Three Phase: 208/230/460V AC
575V AC voltage models available separately

Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.

LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.

Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.

EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power.

TensiBelt® primary drive reduction eliminates the need to adjust belt tension.

Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.

The quiet trolley carriage with high-strength wear pads eliminates the need to apply grease to rails.

Standard Features

11.5 inches per second door speed.
EZ Limit® electro-mechanical limits.
MultiVolt® voltage simplification.
Max run timer automatically adjusts to up and down run time.
TensiBelt® primary reduction.
Delay on reverse.
16-character LCD display.
UL 325 2010 approved.
Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
3-button control station.
2-year/20,000 cycle warranty.
Programmable mid-stop.
Drawbar disconnect for emergency manual operation.

UL 325 2010 Approved

Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.

Construction

Motor

AC continuous-duty motor. Motor replaceable without changing limits. Thermally protected.

Drive

Primary – TensiBelt® auto tensioning poly-V J-belt.
Secondary – chain and sprocket reduction

Brake

24V DC disc brake standard.

Precision Radial Ball Bearings

Included in critical areas throughout the powertrain.

Friction Clutch

Adjustable clutch to help protect against door and operator damage.

Rail Assembly

2″ heavy-gauge roll formed angle with nylon chain guides.

Emergency Disconnect

Drawbar disconnect via pull cord for manual operation of the door.

Pre-wired to accept

Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.

On-Board timed close

Set via LCD display from 2 seconds to 5 minutes.

Accessories & Options

Accessories and Options

Timer to Close Module

Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.

Auxiliary Output Module

Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.

Intellicode® Transmitters

Available in single up to four buttons, or open/close/stop models.

Environmental Modifications

TENV and TEFC motors and/or NEMA 4 and NEMA 4X are available to be ordered from the factory.

UL 325 2010 Approved Reversing Devices

The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
NEMA 4 Photoeyes P/N OPAKPEN4GX.S
Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S

1 — Default device when the operator is ordered.

Documents

Product Information:

Shop Drawings:

Medium-Duty Trolley Operators

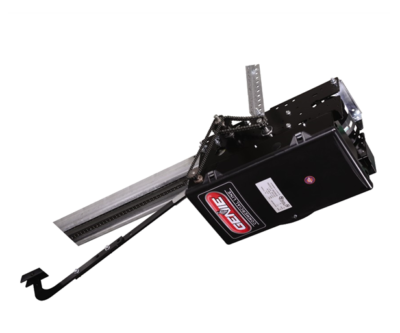

GCL- MT – Medium-Duty Trolley Operators

The GCL-MT is designed for standard-lift sectional doors that have limited-duty cycle requirements. Advanced features and robust mechanical design combine to provide a medium-duty operator that is the new benchmark in the industry.

GCL-MT Advantages

Rated for 15 cycles per hour operation. Maximizing the performance of a medium-duty operator.

Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.

Optional Intellicode® plug and play receiver learns up to 50 transmitters. Learn and delete individual transmitters directly from LCD display.

TensiBelt® primary drive reduction eliminates the need to adjust belt tension.

Motor with built-in thermal protection and ball bearing drive end. Provides overload protection and bearings extend the life of motor over typical bushings.

LCD display with intuitive setup menu. Provides real-time status and trouble-shooting assistance.

Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.

Standard Features

11.5 inches per second door speed.
Optical limit system with linear travel nuts.
Max run timer automatically adjusts to up and down run time.
TensiBelt® primary reduction.
Delay on reverse.
16-character LCD display.
UL 325 2010 approved.
Drawbar disconnect for emergency manual operation.
3-button control station.
2-year/20,000 cycle warranty.
Programmable mid-stop.

UL 325 2010 Approved

Allows for monitored entrapment connections for protection and momentary operation when used with select photo eyes and/or edge-sensing devices.

Construction

Motor

1/2 HP, AC capacitor start/run the motor. Motor replaceable without changing limits.

Drive

Primary – TensiBelt® auto tensioning poly-V J-belt
Secondary – Chain and sprocket reduction

Friction Clutch

Adjustable clutch to help protect against door and operator damage.

Precision Radial Ball Bearings

Included in critical areas throughout the powertrain.

Rail Assembly

2″ door track with nylon rail runners and chain guides.

Pre-wired to accept

Monitored entrapment devices such as photo eyes. Single or 3-button control stations. External interlock switches.

Accessories & Options

Accessories and Options

Brake

AC solenoid-actuated band brake. Must be ordered from the factory.

Timer to Close Module

Timed close-set via the LCD display from 2 seconds up to 5 minutes. Includes pre-close warning contacts, timer hold input, auxiliary open input, normally closed safety input, and monitored edge input.

Auxiliary Output Module

Provides relay contacts at the open, close, and mid-stop limits. Contacts for a 5-minute lamp, and “ADA” contacts set via LCD display to warn during opening, closing, or both.

315MHz Receiver Module

Intellicode® radio receiver that is 315Mhz and capable of storing 50 single-button and/or 50 open-close-stop transmitters with the ability to add and/or delete transmitters individually, identify and store activating transmitter ID(s).

UL 325 2010 Approved Reversing Devices

The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. Only the following devices, when purchased through Genie, are UL-approved for use to meet this requirement: Safe-T-Beam® Photoeye Kit with adjustable bracket P/N 38176R.S¹
Impact-protected Commercial Photoeye Kit P/N OPAKPE2.S
MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with TCM (OPABTCGX.S) or Interface Module (OPAKMEIX.S).
NEMA 4 Photoeyes P/N OPAKPEN4GX.S
Light Curtain 3 ft. length P/N OPAKMLC3.S, or 6 ft. length P/N OPAKMLC6.S

1 — Default device when the operator is ordered.

Documents

Product Information:

Shop Drawings:
