Modern Glass Garage Door Model 8850
Dial Up the Charm with a Modern Glass Garage Door: Sleek, sophisticated, and oh-so-attractive; nothing blends the exterior of your home with a dramatic dose of style like our Model 8850 modern glass garage doors. This bold design trend allocates an ordinary garage door for a modern look that works equally well with various architectural styles.
,
Modern Glass Garage Doors, Model 8850, Black Anodized Finish, Satin Etched Glass
Whether you prefer the fresh, enduring charm of a crisp and classic white frame with clear glass, or a darkly hued frame punctuated with etched or laminated glass, it’s easy to create a modern glass garage door to enhance the style of your home.
Modern Glass Garage Door Model 8850
With every Wayne Dalton modern glass garage door, a simple yet stunning geometric frame is a sleek foil for gleaming glass. Various frame finishes and glass options allow you to customize your modern glass garage doors just as you want them.
Performance Features:
Our aluminum glass garage door is gorgeous, but it’s also built with exceptional care to ensure years of security and easy-care living. High-end features make the Model 8850:
Beautiful: Aluminum rails and stiles are designed with non-beveled edges and straight lines to give the aluminum glass garage door a truly contemporary style.
Weather Resistant: Tongue-and-groove joints prevent wind and weather from entering the garage. A flexible vinyl bottom seal ensures the aluminum glass garage door keeps dirt and elements from entering your garage.
Thermally Efficient: Optional foamed-in-place polyurethane insulation up to 18’2″ wide adds a U-factor of .30, with Low E insulated glass at a U-factor of .28.
Durable
Constructed with an anodized or powder-coated aluminum structure,
our aluminum glass garage door features:
- Tongue-and-groove joints provide a great weather barrier
- Flexible vinyl bottom seal helps prevent dirt and elements from entering your garage
- Designed to be easy to maintain
- Constructed with a rugged, anodized aluminum frame with equal panel spacing
- Reinforcing fins along with heavy-duty track and brackets help provide years of smooth, trouble-free operation (The fins are the extruded part of the door section that are not visible through the glass)
- Chose a 25,000 high cycle spring for almost twice the life of a standard torsion spring
Guaranteed:
Model 8850 offers a One-Year Limited Warranty on the aluminum and a One-Year Limited Warranty on its glass.
Modern Glass Garage Door Model 8850
With every Wayne Dalton modern glass garage door, a simple yet stunning geometric frame is a sleek foil for gleaming glass. Various frame finishes and glass options allow you to customize your modern glass garage doors just as you want them.
Performance Features:
Our aluminum glass garage door is gorgeous, but it’s also built with exceptional care to ensure years of security and easy-care living. High-end features make the Model 8850:
Beautiful: Aluminum rails and stiles are designed with non-beveled edges and straight lines to give the aluminum glass garage door a truly contemporary style.
Weather Resistant: Tongue-and-groove joints prevent wind and weather from entering the garage. A flexible vinyl bottom seal ensures the aluminum glass garage door keeps dirt and elements from entering your garage.
Thermally Efficient: Optional foamed-in-place polyurethane insulation up to 18’2″ wide adds a U-factor of .30, with Low E insulated glass at a U-factor of .28.
Durable
Constructed with an anodized or powder-coated aluminum structure,
our aluminum glass garage door features:
- Tongue-and-groove joints provide a great weather barrier
- Flexible vinyl bottom seal helps prevent dirt and elements from entering your garage
- Designed to be easy to maintain
- Constructed with a rugged, anodized aluminum frame with equal panel spacing
- Reinforcing fins along with heavy-duty track and brackets help provide years of smooth, trouble-free operation (The fins are the extruded part of the door section that are not visible through the glass)
- Chose a 25,000 high cycle spring for almost twice the life of a standard torsion spring
Guaranteed:
Model 8850 offers a One-Year Limited Warranty on the aluminum and a One-Year Limited Warranty on its glass.
Modern Glass Garage Door Model 8850 – Design Options
Mix and match frame finishes and glass types for your modern garage doors to suit your taste. Whether you prefer a high-contrast look or tone-on-tone style, modern glass garage doors add the perfect finishing touch to your home.
Panel Design
The modern glass garage doors are available in two frame styles: standard and double-wide. Standard frames come in three widths with two, three, or four panels across. Double-wide frames feature heavier outer rails. They come in four widths with two, three, four, or five panels across.
Standard Frames
8 ft. Wide (2 panels)*
9 ft.-12 ft. Wide (3 panel)
Over 12 ft. Wide (4 panel)
Double Wide Frames
8 ft. Wide (2 panel)*
9 ft.-12 ft. Wide (3 panel)
Over 12 ft. Wide (4 panel)

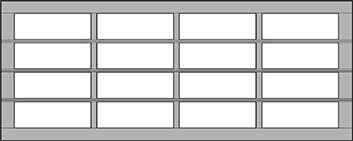

16 ft. Wide (4 panel)

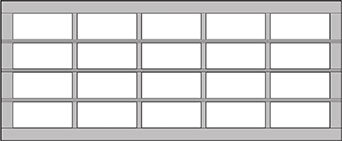

18 ft. Wide (5 panel)**
*Due to the weight of this door, it is only offered in the 8″ double-wide frame.
Panel spacing drawings are shown for illustration purposes and do not reflect actual rail and stile dimensions.
8″ double-wide rails and double-end styles apply only to larger glass garage doors and are not available as options for smaller single-car garage doors. If you are ordering a 16’3” or wider door as well as a single door, check with your dealer to ensure that the door frames match. Contact your Wayne Dalton dealer if you have additional questions..
Choose Your Finish
Your designer glass panel garage door is available in three anodized finishes. In addition, homeowners may upgrade to a custom RAL powder-coated finish by choosing from approximately 200 color options.
Anodized Finishes
Clear
Bronze
Black
Painted Finishes
White
Brown
Powder Coat Finishes
Dark Bronze
Black
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.
Glass Options
Gleaming glass is at the heart of our stunning glass panel garage door Model 8800 is available with five gorgeous options.
Tempered safety glass, acrylic, or solid panels are available in various colors, tints, and styles. Most panel styles are also available in both single-pane and insulated configurations.
Clear (1/8″ standard)
Obscure*
Gray Tinted
Bronze Tinted
Green Tinted
Satin Etched*
White Laminated
Optional Insulated Frame:
Insulated rails and stiles are an option. Foamed-in-place polyurethane insulation fills the rails and stiles, providing enhanced thermal efficiency that adds a U-factor as low as .28 (R-value* of up to 4.06) on the door.
Door Construction:
- Effective Joint Seals – Snug-fitting tongue-and-groove section joints help prevent wind and weather from entering the garage.
- Reinforcing fins on all top sections and, as needed, on intermediate sections provide years of smooth, trouble-free operation. The fins are the extruded part of the door sections and are not visible through the glass
R-values of Insulated Model 8850
9’x7′ Door
16’x7′ Door
9’x8′ Door
16’x8′ Door
1/2″ insulated glass Solar Ban 70XL
argon-filled (R = 3/125) with
polyurethane-filled rails and stiles
1/2″ insulated glass (R = 1/75) with polyurethane-filled rails and stiles
1/2″ insulated glass Low E (R = 2.38) with polyurethane-filled rails and stiles
4.06
2.87
3.42
4.05
2.86
3.40
3.97
2.76
3.31
3.96
2.74
3.30
