Accordion Folding Grilles Model 610

Accordion Folding Grilles feature side-folding closures with various options and patterns to fit your project needs. These side-folding grilles are ideal for applications that require a secure barrier against theft and debris.

Side Folding Grilles Provide a Secure Full-Closure Retail Design Solution.

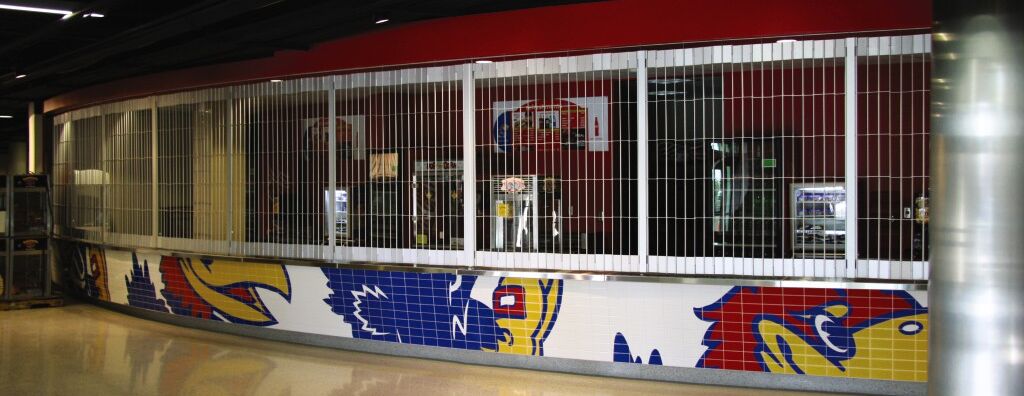

Wayne Dalton Accordion Folding Grilles Model 610 provide a secure, space-saving alternative to traditional rolling security grilles. The side-folding design is especially useful for retail storefronts, malls, airports, concourses, food courts, parking garages, sports complexes, and schools where you need security without sacrificing valuable overhead space.

Secure Side-Folding Design

Instead of rolling upward into a head-mounted coil, the Model 610 folds horizontally to the side. This makes it an excellent solution where overhead space is limited or where a compact side-storage arrangement is preferred. The curtain can be configured to stack into a pocket, between jambs, or in bi-part arrangements.

Accordion Folding Grilles Model 610

Three curtain types are available in various materials and can be configured in several layouts, including special radius curves and S-curves. Side Folding Grilles provide a secure, full-closure retail design solution.

Why Choose Model 610?

The Wayne Dalton Model 610 combines commercial security with architectural flexibility. Its side-folding construction eliminates the need for a large overhead coil, while multiple curtain materials, visibility levels, locking systems, and curved-track configurations let you customize the grille to the building.

For retail and public-facing properties, Model 610 is particularly attractive because it provides after-hours security while preserving the storefront’s appearance and functionality during business hours.

Rolling Security Grilles - Wayne-Dalton Sales Center of Windsor
Durable Construction
  • Rugged construction and quality materials assure long life and less costly maintenance
  • Smooth operation with a durable hardened track
  • Open curtain allows free air circulation
Design Flexibility
  • Built to fit your opening size, operation, and option preferences to align with the style of your building.
  • Full-height aluminum for maximum security
  • Clear, non-breakable polycarbonate for some visibility
  • Clear tempered glass for full visibility
  • Perforated steel panels for full ventilation
  • The curtain stores in a compact coil at the head of an opening to maximize the use of the interior space
  • Curved tracks follow almost any degree of track curvature
Installer Friendly
  • EZ line comes 90% assembled and is fitted with 6-inch pockets to save time and reduce costs.
  • Locking posts supplied with a 1″ mortise cylinder can be easily changed onsite.
Warranty
  • 24-Months Limited Warranty

Ideal Applications Include

Malls / Retail

Airports

Food Courts

Sports complex

Schools

Parking Garage

Max. Width: No limit

Max. Height: 12’

Operation: Manual

Curtain Frame: Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick

Curtain Inserts: Aluminum, Polycarbonate, Glass, Perforated Steel

Trolley Assembly: 1 1/8” (29 mm) Height: 1 5/8” (41 mm) Width: 1 3/8” (35 mm)

Curves: 90°: Standard body: 14” (356 mm) radius; Slim body 10” (254 mm) radius 120°, 135° and 150°: Standard and Slim body: 10” (254 mm) radius Standard body: 10” (254 mm) radius

Radii: 90-14, 120-10, 135-10, 150-10

Pocket: Available in a wide variety of sizes

Track Detail: Top-mounted

Finish: Clear Anodized

Posts: Lead Post, Intermediate Post, and Trailing End Post

Egress Option: Yes

Cylinders: 1″ mortise

Operation
  • Manual
Safety Focused

Post Options

Lead Post

  • Hook lock and wall channel; bi-part; top and bottom shoot bolts
  • Concealed cylinder-operated hook lock accessible from the interior and exterior

Intermediate post

  • Bottom shoot bolt
  • Concealed cylinder-operated shoot bolt accessible from one side only

Trailing end post

  • Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier.
  • Attached is 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop

Grille Design

Standard Line Grille Patterns – Full-closure
  • Perforated
    • Curtain: 7” (178 mm) standard width, 0.05″ (1.27 mm) perforated aluminum panels with 3 /16″ (5 mm) dia. Holes on ¼” (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 51% of 6 1/8″ (156 mm) viewable area.
  • Polycarbonate
    • Curtain: 7” (178 mm) standard width, 1 /16″ (1 mm) thick fire retardant polycarbonate that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 100% of 6 1/8″ (156 mm) viewable area.
  • Glass
    • Curtain: 7” (178 mm) standard width, 1/8″ (3 mm) thick tempered glass that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 100% of 5 3/8″ (137 mm) viewable area.
  • Solid Aluminum
    • Curtain: 7” (178 mm) standard width, 0.078″ (2 mm) thick solid aluminum that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 0% of 6 1/8″ (156 mm) viewable area.
Slim Line Grille Patterns – Full-closure
  • Perforated
    • Curtain: 4” (102 mm) standard width, 0.05″ (1.27 mm) perforated aluminum panels with 3 /16″ (5 mm) dia. holes on 1/4″ (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 100% of 3-1/2″ (89 mm) viewable area.
  • Polycarbonate
    • Curtain: 4” (102 mm) slim width, 1/16″ (1 mm) thick fire-retardant polycarbonate that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 100% of 3-1/2″ (89 mm) viewable area.
  • Solid Aluminum
    • Curtain: 4” (102 mm) standard width, 0.07″ (1.78 mm) thick solid aluminum that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 0% of 3 ½” (89 mm) viewable area.
Brick or Straight Grille Patterns – Open-air
  • SWBB – Brick
    • Space between tubes 2 15/16″ (73.5 mm)
    • Full panel width 7″ (178 mm)
    • Top plate 4″ (102 mm)
    • Top spacer tube size varies from curtain pattern to accommodate specific height.
    • Spacer plate 1” (25.4 mm)
    • Spacer tube ½” (12.7 mm) x 12” (305 mm) Bottom plate 4” (102 mm)
    • Max Width: Unlimited
    • Max Height: 168″ (4267 mm)
  • SWBS – Straight
    • Space between tubes 1 9/16” (40 mm)
    • Full panel width 4” (102 mm)
    • Top plate 4” (102 mm)
    • Top spacer tube size varies from curtain pattern to accommodate the specific height.
    • Spacer plate 1” (25.4 mm)
    • Spacer tube ½” (12.7 mm) x 12” (305 mm) Bottom plate 4” (102 mm)
    • Max Width: Unlimited
    • Max Height: 168″ (4267 mm)
  • S126B – Brick and S126S – Straight
    • Space between tubes 2 ½” (63.5 mm)
    • Full panel width 6 5/16” (160 mm)
    • Top plate 5 ¼” (133 mm); 13 gauge
    • Top spacer tube size varies from curtain pattern to accommodate the specific height.
    • Aluminum rod 5/16” (3.17 mm)
    • Aluminum link 1/8” x 5/8” x 6 11/16” (3.17 x 15.9 x 170 mm)
    • Spacer tube ½” x 12” (12.7 x 305 mm)
    • Bottom plate 5 ¼” (133 mm); 13 gauge
    • On Center 6” (152 mm)
    • Max Width: Unlimited
    • Max Height: 168″ (4267 mm)
  • SL154 – Straight/Slim Line
    • Space between tubes 3 ½” (89 mm)
    • Full panel width 4” (102 mm)
    • Top plate 2” (51 mm); 13 gauge
    • Aluminum rod 5/16” (3.17 mm)
    • Aluminum link 1/8” x 5/8” x 4 1/8 ” (3.17 x 15.9 x 105 mm)
    • Spacer tube ½” x 15” (12.7 x 381 mm)
    • Bottom plate 2” (51 mm)
    • On Center 4” (102 mm)
    • Max Width: Unlimited
    • Max Height: 168″ (4267 mm)
EZ Grille Patterns
  • EZ Vent – Full-closure
    • Curtain: 4” (102 mm) standard width, 0.05″ (1.27 mm) perforated aluminum panels with 3 /16″ (5 mm) dia. holes on 1/4″ (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 100% of 3-1/2″ (89 mm) viewable area.
  • EZ Clear – Full-closure
    • Curtain: 4” (102 mm) slim width, 1/16″ (1 mm) thick fire-retardant polycarbonate that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 100% of 3-1/2″ (89 mm) viewable area.
  • EZ Guard – Full-closure
    • Curtain: 4” (102 mm) standard width, 0.07″ (1.78 mm) thick solid aluminum that fits into aluminum hinges. Panels are framed by a minimum of 4” (102 mm) high aluminum bottom plates and top plates.
    • Visibility: 0% of 3-1/2″ (89 mm) viewable area.
  • EZ Grille – Open-air
    • Curtain: 4″ (102mm) wide with 2-inch (51mm) high bottom and top plates, truss-like aluminum. Panels connected with 1/8 x 5/8 x 4-1/4 inch aluminum links vertically spaced 15 inches (381 mm) apart onto 5/16 inch (8 mm) aluminum horizontal rods spaced 3-1/2 inches (89 mm) on center and covered by 1/2 inch (13 mm) aluminum tubes. The curtain is secured to the pocket; no end post is required. Straight pattern.

Visibility: 97% of 3-1/2″ (89 mm) viewable area.
