ThermoMark™ 5150 5155, 5255 & 5200
ThermoMark™ doors provide high quality thermal efficiency, using foamed-in-place polyurethane insulation between two steel panels. This creates a strong door that is flush with the interior of the door. With residential or commercial exterior design options, ThermoMark™ doors are aesthetically pleasing and come with various color and window options for any application. ThermoMark™ doors are also the preferred door for wind load applications.
.

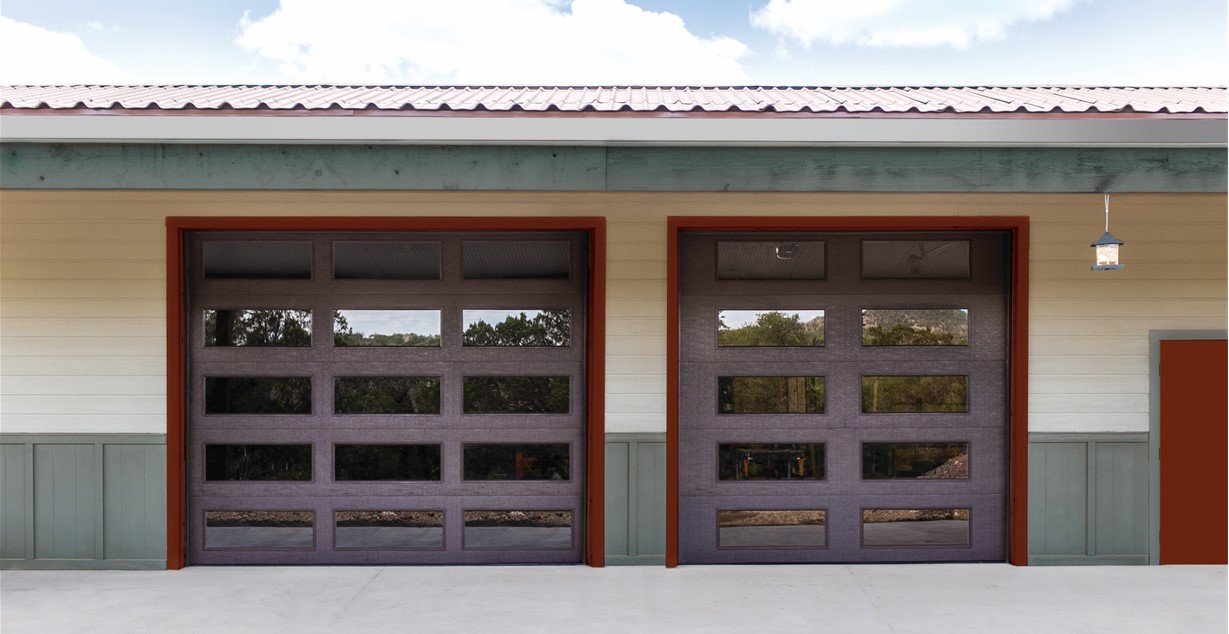

Insulated, ThermoMark™, Model 5150, Brown Finish, Clear Long - All Windows
Thermal Efficiency & Low Maintenance
ThermoMark™ sectional steel commercial doors made to accommodate RVs, large trucks, heavy equipment, boats, trailers, and garage-based shops. ThermoMark™ 5,000 Series is ideal for commercial or industrial applications requiring durability and aesthetics.
ThermoMark™ 5150 5155, 5255 & 5200
Models 5150 and 5200 are the ideal choices if you’re looking for a commercial door that combines strength and insulation but is also aesthetically appealing without the traditional industrial look. Then, Models 5155 and 5255 are insulated commercial sectional doors ideal for projects requiring something more rugged and durable, with excellent thermal insulation qualities.
,
ThermoMark™, Model 5150, White Finish, All Windows
Low Maintenance / Durable Design
- Factory-finished interior and exterior hot-dipped, galvanized skins make installation easier, add life to the door, and provide greater durability
- Steel end caps and hardware plates add commercial durability and longevity
- The bulb-shaped bottom seal remains flexible even in extreme cold to help keep extreme weather conditions outside
- Stucco steel back panels provide appealing aesthetics
- The two-coat, baked-on polyester finish makes the surface virtually maintenance-free
Thermal Performance
- The thermal break helps ensure year-round energy efficiency
- The CFC- and HCFC-free polyurethane foamed-in-place insulation core is securely bonded to hot-dipped galvanized inner and outer skins to create a door that is significantly more efficient than conventional insulated steel doors
- Sound-absorbing insulation makes the door quieter in operation; reduces wind rattling
Warranty
- 10-Year limited warranty against delamination, cracking, splitting or deterioration due to rust-through
Ideal Applications Include
Production Facilities
Loading Docks
Storage & Vehicular Storage
Manufacturing & Industrial Facilities
Commercial Buildings
Drive-Thru & Truck Bays
Operation
- Chain hoist operation
- Motor operation
Safety Focused
- Cable failure device
- Sensing edges
- Photo eyesCylinder
High-Performance Design
Spring Cycle
- 10,000
High Cycle Spring Options
- 25,000
- 50,000
- 100,000
Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.
*Proper wind load option selection is the responsibility of the business owner. Please consult your local building code official, certified engineer or architect for wind load requirements in your specific location.
Product Literature
Brochure Full Line Sectional Doors
User Manual & Installation
Installation Instructions ThermoMark™ Models 5150, 5155, 5200, 5255 Standard Lift Torsion (353361)
Installation Insert – Commercial Sectional Low Headroom
Specs
Specs Full Line Sectional Steel Doors
Applications
Application – Retail Automotive
Application – Healthcare & Pharmaceutical
Warranty
Warranty Models 530, 5150, 5155, 5200 & 5255
Warranty Models 530, 5150, 5155, 5200, 5255 & Operator System

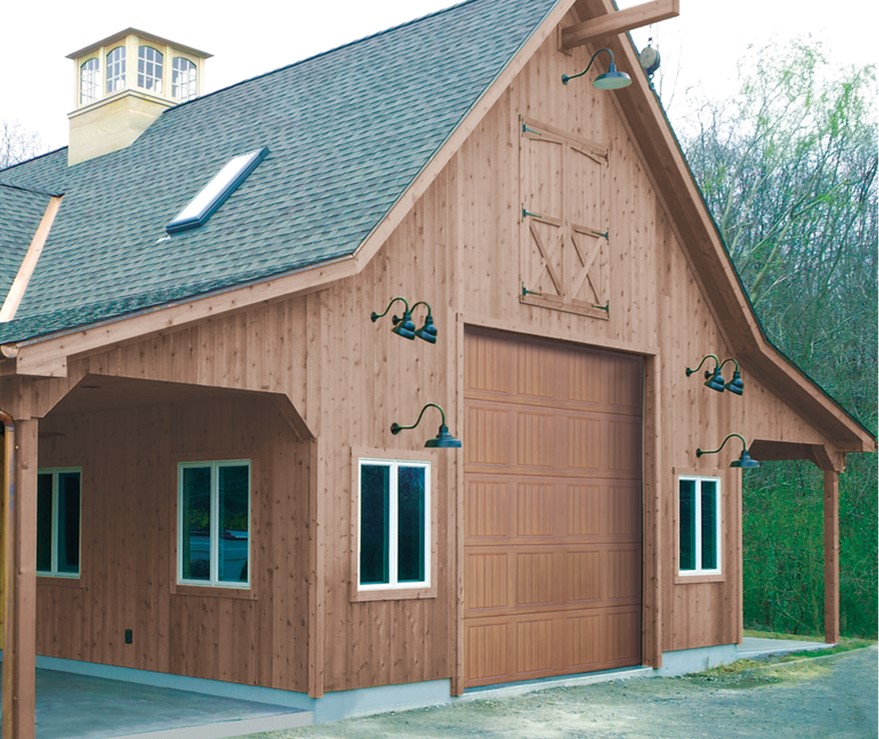

ThermoMark™ 5150
Max Width – 20’ 2”
Max Height: 20’ 1”
R-Value -12.12
This polyurethane insulated door provides excellent value and year-round comfort when strength, efficiency, and beauty are required.

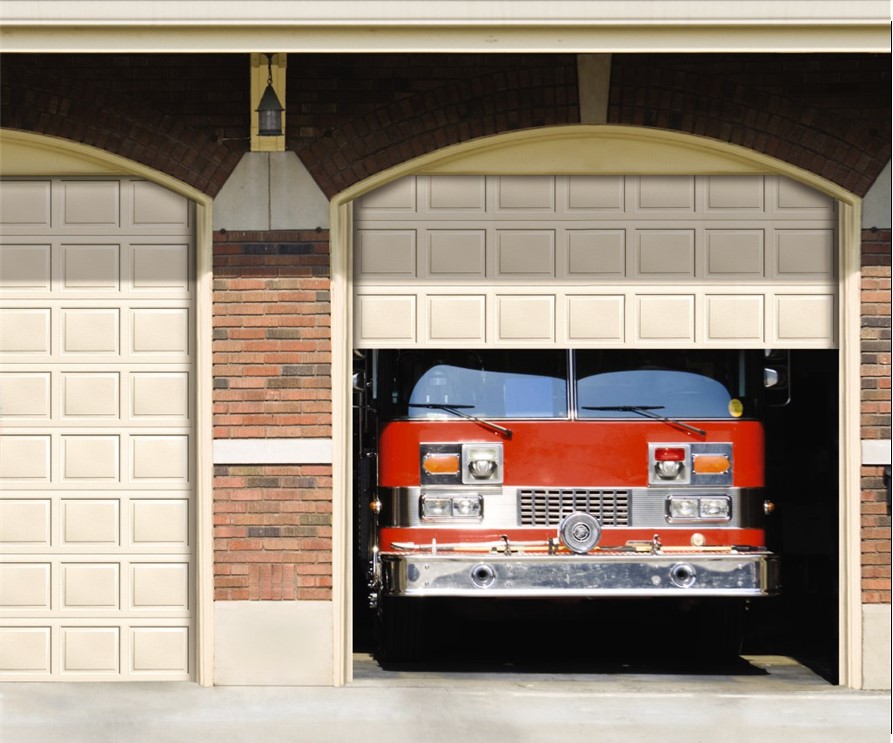

ThermoMark™ 5200
Max Width –26’ 2”
Max Height: 20’1″
R-Value -16.22
With stucco, steel-back panels for easy cleaning, this thermally efficient door is low maintenance and features quiet door operation.
Model Comparison
Standard Construction | Model 5150 | Model 5200 | Model 5155 | Model 5255 |
| Max. Width | 20’2″ | 26’2″ | 20’2″ | 26’2″ |
| Max. Height | 20’1″ | 20’1″ | 20’1″ | 20’1″ |
| U-factor* | .15 | .12 | .15 | .12 |
| R-value** | 12.12 | 16.22 | 12.12 | 16.22 |
| Sectional Thickness | 1 3/8″ 3-layer | 1 7/8″ 3-layer” | 1.5″ 3-layer | 1 7/8″ 3 layer” |
| Thermal Break | Yes | Yes | Yes | Yes |
| Spring Cycle | 10,000 | 10,000 | 10,000 | 10,000 |
| Exterior/Interior Surface | Embossed Wood Grain or Stucco Embossed / Pinstripe | Embossed Wood Grain or Stucco Embossed / Pinstripe | Stucco Embossed / Flush | Stucco Embossed / Flush |
| Exterior Surface | Stucco Embossed / Pinstripe | Stucco Embossed / Pinstripe | Stucco Embossed / Pinstripe | Stucco Embossed / Flush |
| Exterior Steel | 0.015″ (.35mm) | 0.015″ (.38mm) | 0.015″ (.35mm) | 0.015″ (.35mm) |
| Panel Designs | Yes (6) | Yes (5) | No | No |
| Air infiltration (IECC) | 0.23 cfm/ft2 at 25 mph | 0.23 cfm/ft2at 15 mph | 0.23 cfm/ft² at 25mph (4.20 m3/hr/m2 at 24 kmph) | 0.17 cfm/ft2at 15 mph |
| Sound Transmission (STC) | Class 20 | Class 20 | Class 20 | Class 20 |
| Wind Load (optional) | Yes*** | Yes*** | No | No |
*U-factor is independently tested and verified per ANSI/DASMA 105 using solid doors and specific product sizes.
**Wayne Dalton uses a calculated door section R-value for our insulated doors.
***FBC, TDI, Miami Dade approved wind load reinforcement is available for hurricane-prone areas

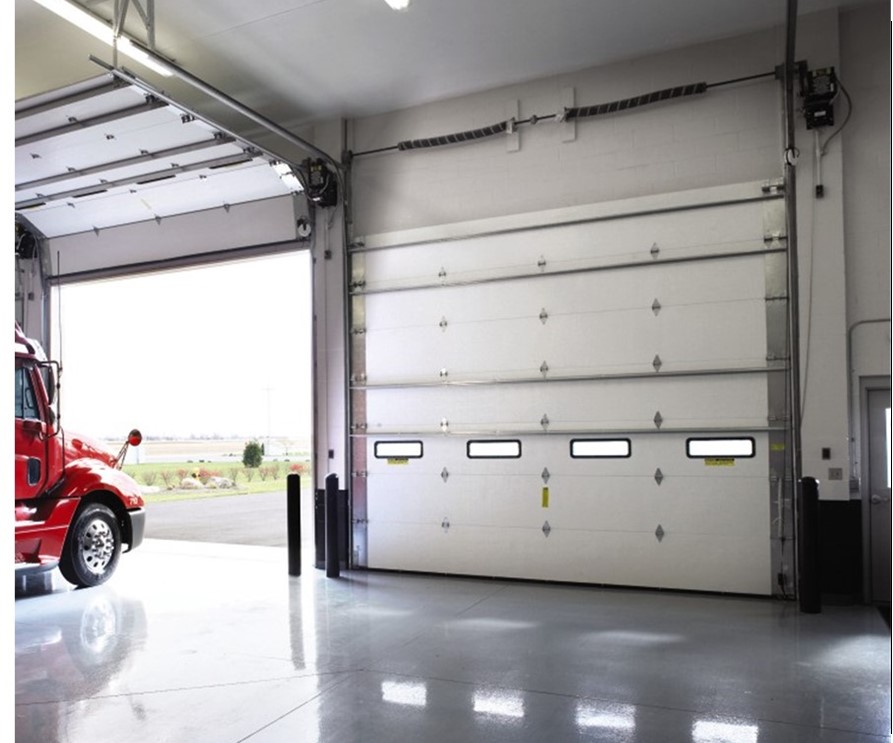

ThermoMark™ 5155
Max Width – 20’ 2”
Max Height: 20’ 1”
R-Value -12.12
his insulated door is ideal for commercial applications that requires thermal efficiency, durability, and reliable performance.
ThermoMark™ 5255
Max Width –26’ 2”
Max Height: 20’1″
R-Value -16.22
This thermally-efficient door boasts a rugged construction that provides years of solid performance for the most demanding conditions.
ThermoMark™ Series, Design Options
Panel Options – TThermoMark™ 5150/5200
Short Panel
Long Panel
Vertical Short Panel
Vertical Long Panel
Flush Panel
ThermoMark™ 5155/5255
Stucco-Embossed Pinstripe Panel
Stucco Embossed Pinstripe Finishes
White Smooth
Almond

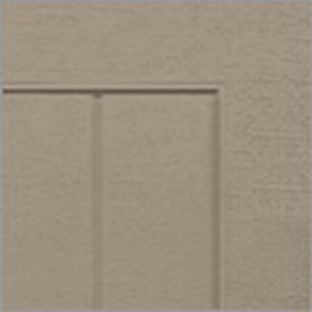

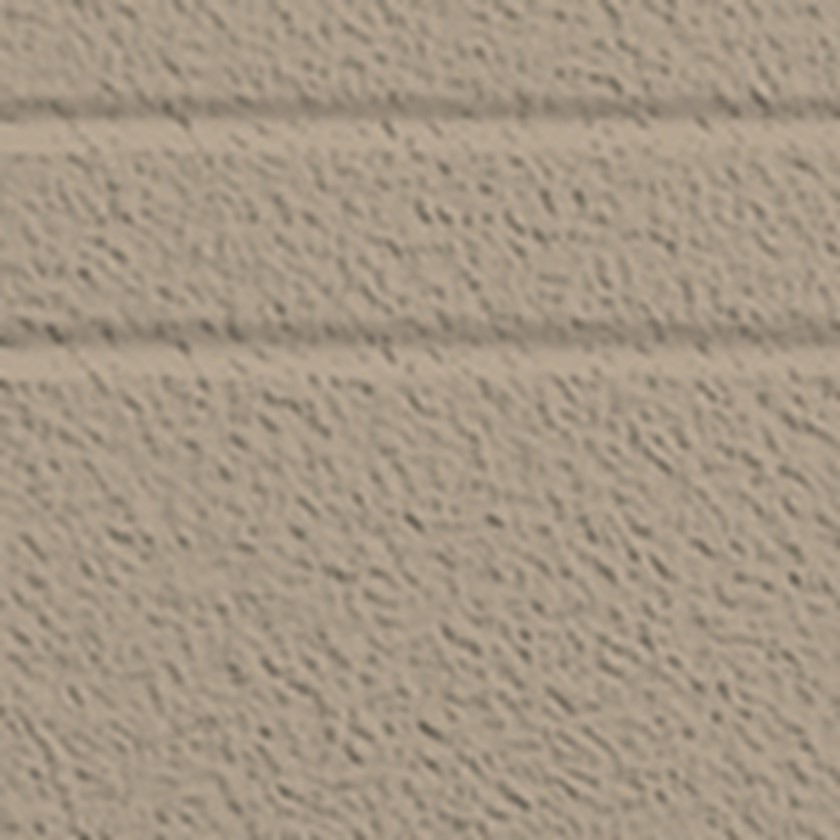

Sandstone

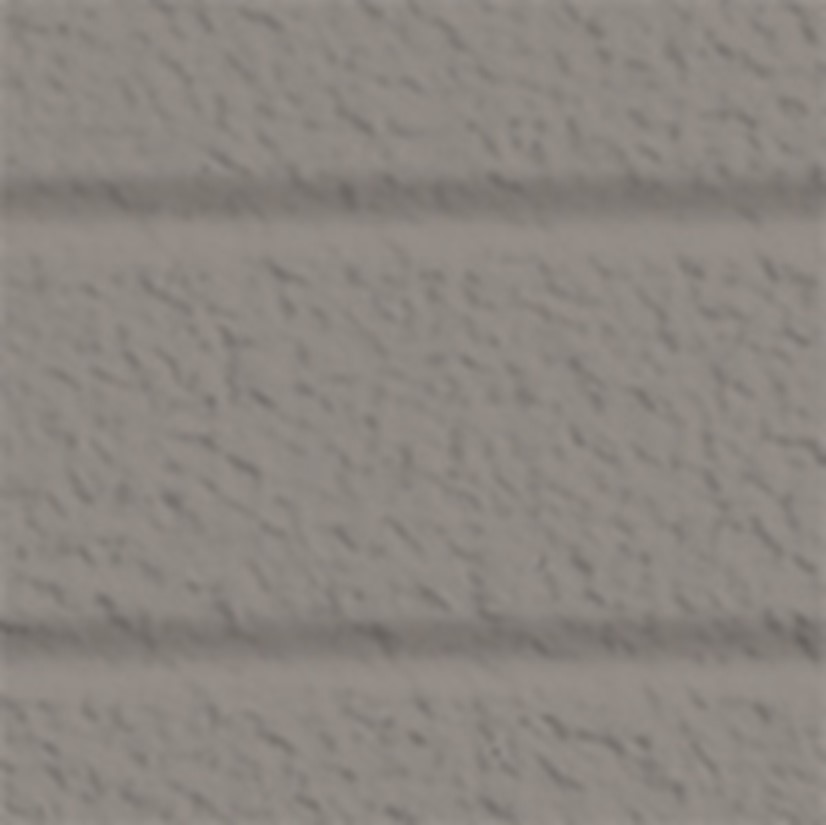

Terra Bronze
Brown
Black
Wood Grain Impression™ Bi-Directional Finishes
Not available on the Flush panel
Western Cedar
Carbon Oak
Medium Oak
Color Options
Models 5200, 5155, and 5255
Almond
Brown
Black
Sandstone
Terra Bronze
White
TruChoice®
Thermospan® Series is available with the TruChoice® Color System, Wayne Dalton’s custom painting process that offers more than 6,000 colors. See dealer for details.
