Insulated Sectional Steel Doors, Thermospan® Series
The Thermospan® Series insulated doors are the only sectional doors in the industry with patented, roll-formed integral struts on each section, making them the most rigid doors available. The Thermospan® Series also has a patented manufacturing process with a polyurethane core continuously foamed in place between the outer and inner skins.
Premium Thermal Efficiency & Low Maintenance
Designed to provide premium thermal efficiency, superior strength, and a long, virtually maintenance-free life, Wayne Dalton’s Thermospan® doors outperform conventional insulated steel doors. And the pre-painted, hot-dipped galvanized steel skins contribute to a long, maintenance-free life.
Insulated Sectional Steel Doors, Thermospan® Series
Suitable for medium and heavy-duty commercial and industrial applications, the Thermospan® series provides strength and durability coupled with thermal efficiency. Optional wind load engineering makes them ideal even in hurricane-prone areas.
Low Maintenance / Durable Design
- Commercial-grade galvanized hardware contributes to long service life and provides superior strength and rigidity.
- Virtually maintenance free due to a baked-on polyester finish
- Hot-dipped galvanized steel provides corrosion resistance and commercial durability
Thermal Performance
- Thermal break separates inner and outer skins at the top and bottom, so virtually no heat or cold is conducted through the section
- The CFC- and HCFC-free polyurethane insulation core with the standard joint seal aids in preventing air infiltration and can help reduce energy costs
- A flexible vinyl bulb seal and non-corrosive polymer retainer can help prevent water and air infiltration at the bottom of the door
Warranty
- 10-Years against cracking, splitting, rust deterioration, and delamination (Models 200-20, 200, and 150)
- 8-Years against cracking, splitting, rust deterioration, and delamination (Model 125)
- 1-Year against defects in materials and workmanship
Operation
- Chain hoist operation
- Motor operation
Safety Focused
- Sensing edges
- Photo eyesCylinder
High-Performance Design
Spring Cycle
- 10,000
High Cycle Spring Options
- 25,000
- 50,000
- 100,000
Design Options:
Pass Door
Ideal Applications Include:
- Warehousing Facilities
- Commercial Buildings
- Industrial Facilities
- Agricultural Facilities
- Equipment Buildings
- Maintenance Buildings Strobes
Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.
Documents:
- Sectional Door Systems Brochure
- Sectional Steel Door ThermoSpan™ Model 125 Brochure
- Sectional Steel Door ThermoSpan™ Model 150 Brochure
- Sectional Steel Door ThermoSpan™ Model 200 Brochure
- Sectional Steel Door ThermoSpan™ Model 200-20 Brochure
- Thermospan® Insulated Door Operator System Warranty
- Sectional Steel Doors Full Line Specs
- Commercial Sectional Door Thermospan Vertical Lift
Insulated Sectional Steel Doors, Thermospan® Series
Thermospan® Models 125, 150, 200, 200-20

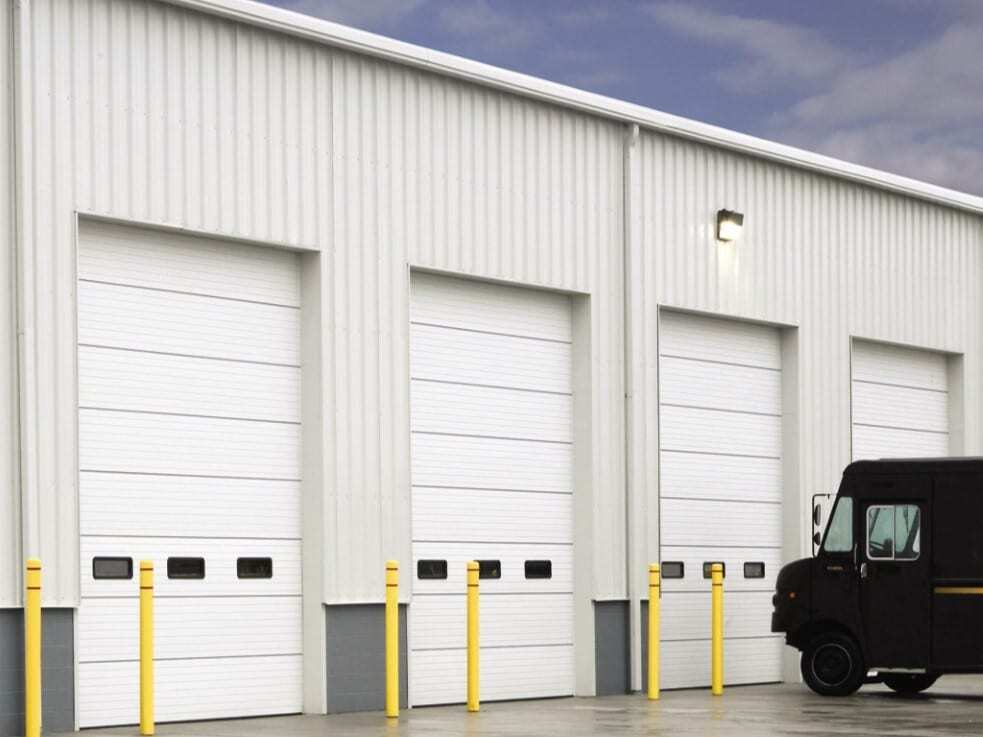

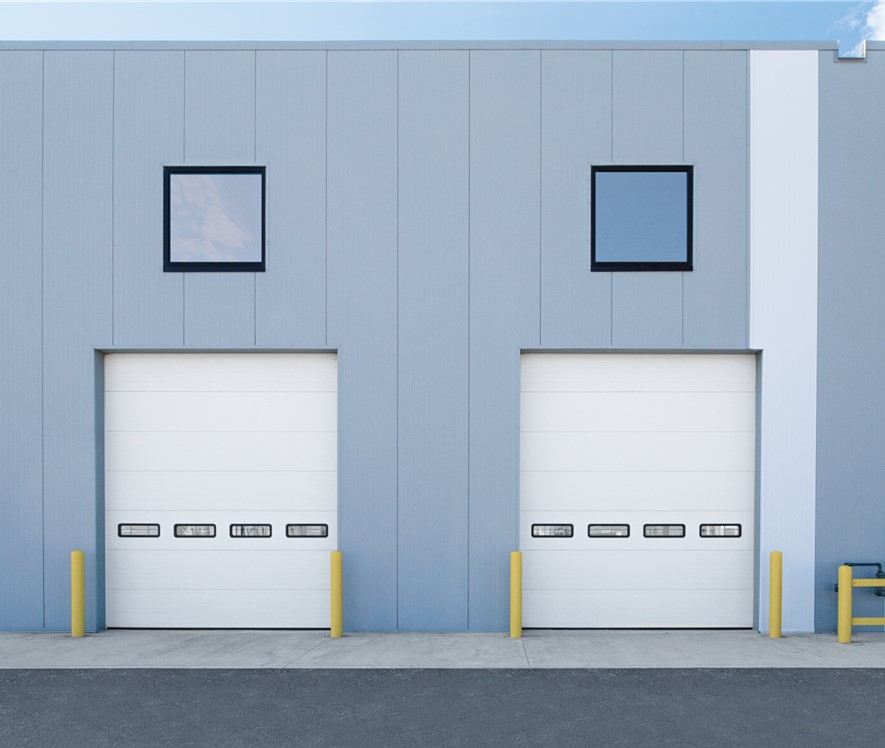

Thermospan® 200
Max Width – 40’2″
Max Height: 32’1″
R-Value -17.5
This sectional door provides polyurethane thermal efficiency for low maintenance costs with an embossed stucco exterior for strength.

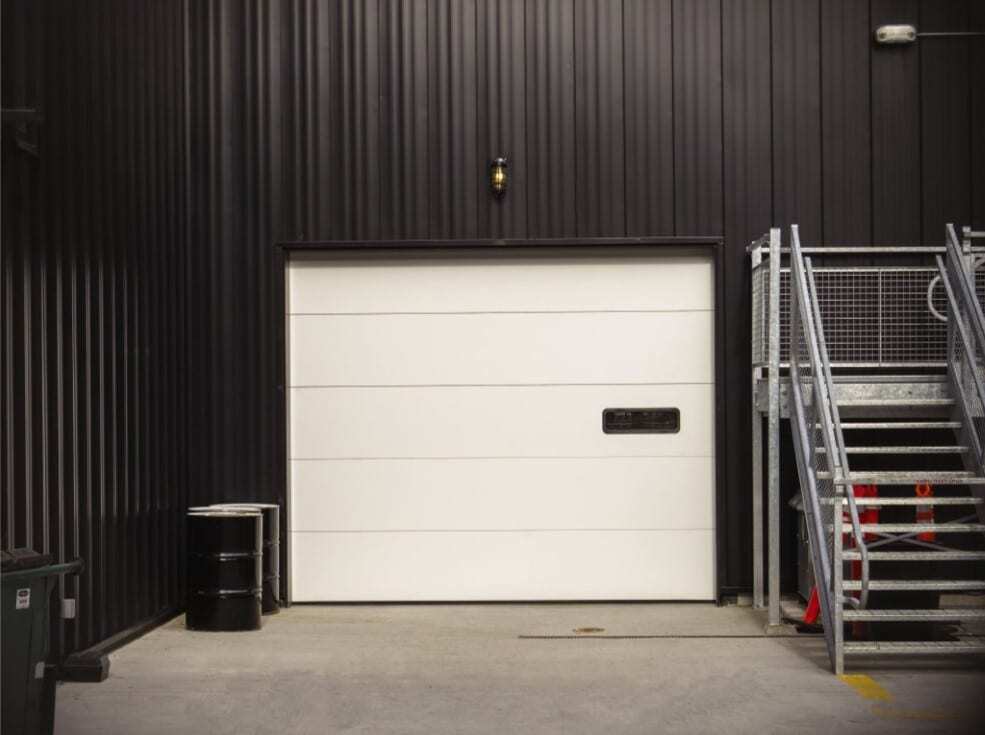

Thermospan® 200-20
Max Width – 24’2″
Max Height: 16’1″
R-Value -17.5
This energy-conscious, sectional door offers premium thermal efficiency with a 20-gauge flush exterior for excellent durability.

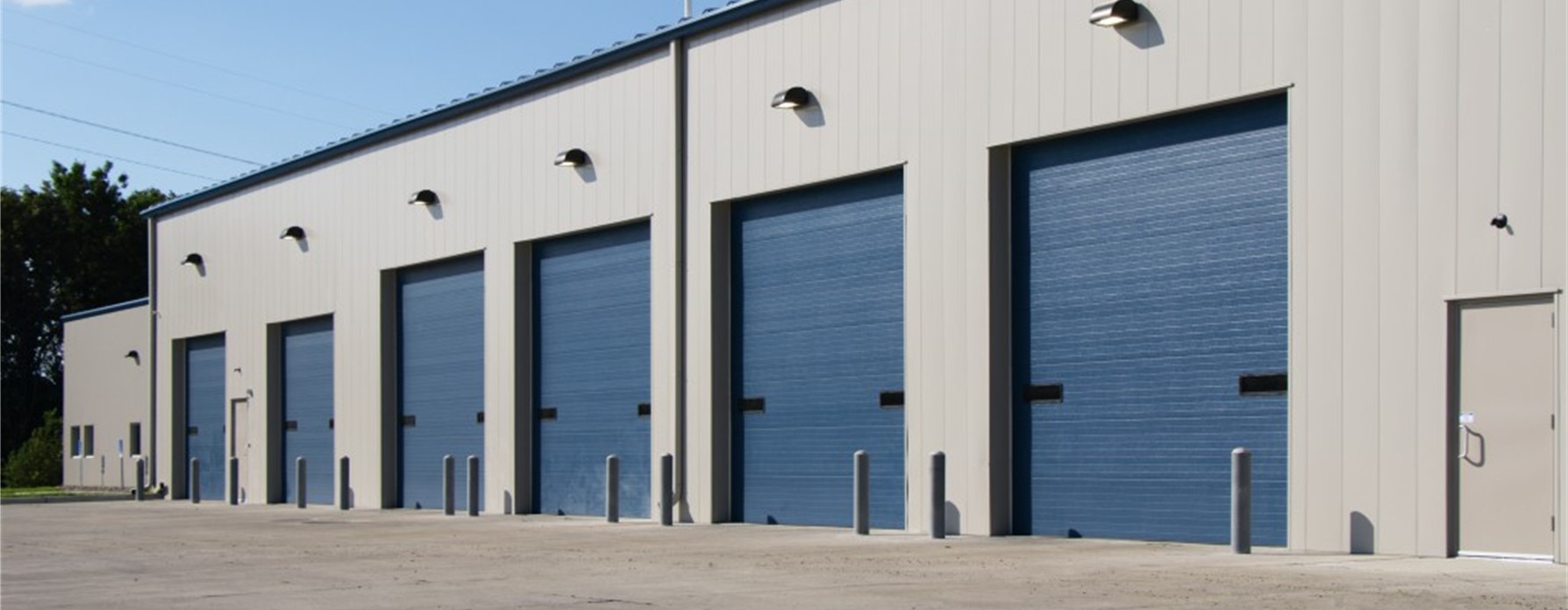

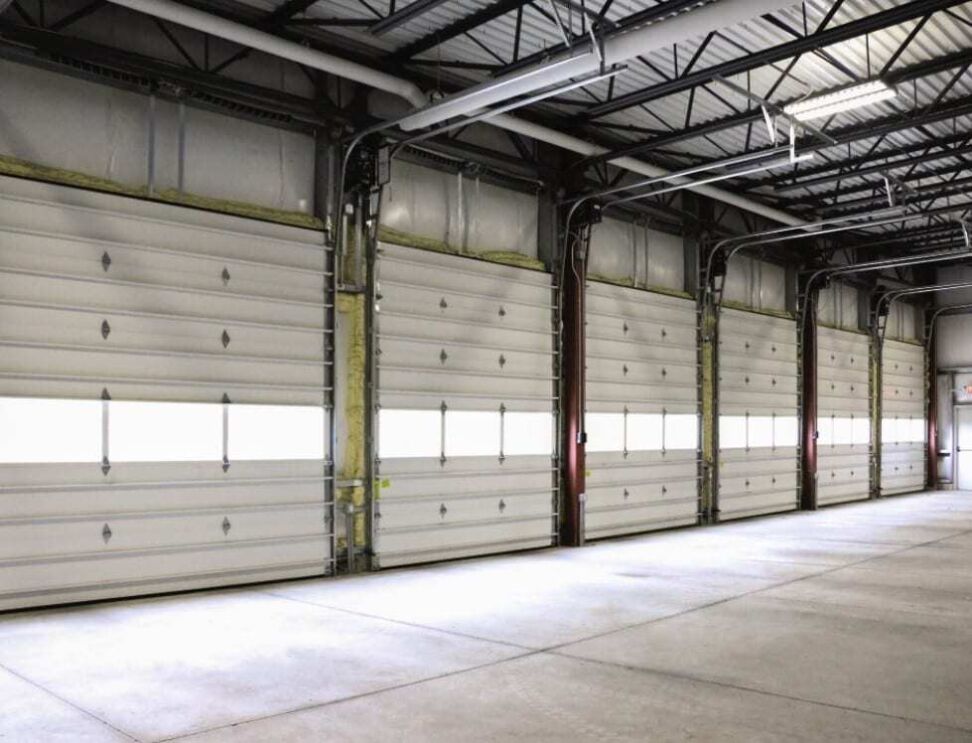

Thermospan® 150
Max Width – 26’2″
Max Height: 20’1″
R-Value – 14.16
This insulated, sectional steel door provides thermal efficiency when value is important, and rigid durability can’t be compromised.

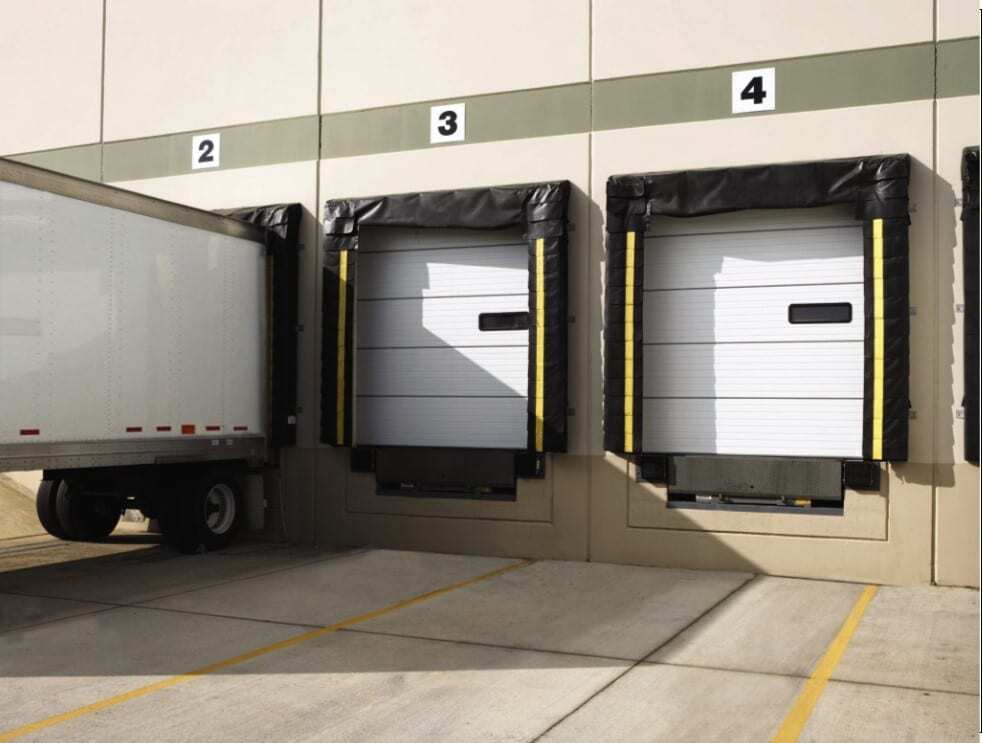

Thermospan® 125
Max Width – 18’4”
Max Height: 16’1″
R-Value – 10,79
This insulated, sectional, steel door provides higher thermal efficiency along with rigidity and strength to cut your total costs.
Standard Construction | Model 200-20 | Model 200 | Model 150 | Model 125 |
|---|---|---|---|---|
| U-value* | .057 | .057 | .07 | .093 |
| Thermal Break | Thermoplastic adhesive with rubber seal | Thermoplastic adhesive with rubber seal | Thermoplastic adhesive with rubber seal | Thermoplastic adhesive |
| Steel Gauge | 20 | 0.015″ | 0.012″c | 0.012″ |
| Sectional Thickness | 2″ | 2″ | 1.5″ | 7/8″ |
| Exterior Surface | Flush non-repeating random stucco texture | Flush non-repeating random stucco texture and 1/4 inch wide pinstriping | Stucco texture and 1/4 inch wide pinstriping | Flush non-repeating random stucco texture and 1/4 inch wide pinstriping |
| Sound Transmission (STC- ASTM E 413) | Class 22 | Class 22 | Class 22 | Class 21 |
| Air infiltration(IECC) | 0.17 cfm/ft² | 0.17 cfm/ft² | Class 22 | Class 21 |
| OITC (ASTM E 1332) | Class 19 | Class 19 | Class 19 | Class 18 |
| ASTM E 84 | Class A | Class A | Class A | Class A (FS 10 or less / SD210 or less) |
| UBC 17-5 | Meets | Meets | Meets | Meets |
| ASTM D 1929 | Flash ignition = 734˚ F, Self ignition = 950˚ F | Flash ignition = 734˚ F, Self ignition = 950˚ F | Flash ignition = 734˚ F, Self ignition = 950˚ F | Flash ignition = 734˚ F, Self ignition = 950˚ F |
| Wind Load** (optional) | Yes** | Yes** | Yes** | No |
Thermospan® Series, Design Options
Multi-wall polycarbonate glazing Options
- Brown
- White
- Clear
Factory Installed top
Weatherseal EPDM bulb seal
Thermal Performance Jamb Seal
Special track designs
Continuous wall angle standard
Lite Options
- Vision Lite
- Full View (only 150, 200, 200-20)
Glass Options
- Insulated
- Tempered
Vision lites
All Models
Full-view lites
(only 150, 200, 200-20)
Colors Options
White Smooth Flush Finish
Not Available on Model 150
White Embossed Stucco
All Models
Tan Embossed
Stucco
Available on Model 200 and 150
Brown Embossed Stucco
Available on Model 200 and 150
Gray Embossed Stucco
Available Only on Model 150
TruChoice®
Thermospan® Series is available with the TruChoice® Color System, Wayne Dalton’s custom painting process that offers more than 6,000 colors. See dealer for details.
Actual colors may vary due to fluctuations in the printing process. Always request a color sample for accurate color matching.
