Sectional Steel Doors CX-Series & C-Series
Models CX-20, CX-24, CX-2400, C-20, C-24 and C-2400
The CX-series and C-series commercial steel sectional doors are designed, engineered, and constructed to ensure smooth, efficient operation and save installation time and effort. These doors feature pre-finished 20-gauge or 24-gauge hot-dipped galvanized sections roll-formed to a full unique 2” x 3” box-stile design and tongue-and-groove construction, adding vertical stability and strength.
When Strength Impact Resistance is Critical On Commercial & Industrial Applications
The CX-series sectional doors incorporate self-forming rivets clinched to the face and rails for superior stability throughout the door, making them ideal for medium, heavy-duty, and industrial commercial applications.
Sectional Steel Doors CX-Series & C-Series
Models CX-20, CX-24, CX-2400, C-20, C-24 and C-2400
While these doors are similar, the CX-series includes a low-maintenance design with steel and polylaminate backer options. Which will allow for a wider range of application options, including warehouses, storage buildings, and more. The C-series focuses on its wind load capability, providing extra protection from strong hurricane-like winds. Additionally, stiles are continuously bonded to the skin surface with high-strength adhesive, preventing rust and leakage associated with rivets.
Thermal Performance
- A standard bottom door seal, along with optional seals on the perimeter and between sections, greatly reduces air leakage, adding to the thermal efficiency of the building.
Durable Design
- Proven strength and durability for your security and protection, our doors can stand up to most industrial environments.
- Low-cost pan doors with a pure industrial look that are significantly stronger compared to leading competitors
- Long-lasting and reliable for years of service
- Comes in a wide variety of sizes and configurations to fit your specific application
- Box-shaped stiles are riveted to the face of the section and are galvanized for additional corrosion protection
- Tongue and groove joints provide superior rail strength and weather resistance
Warranty
- 1-Year limited
Operation
- Chain hoist operation
- Motor operation
Safety Focused
- Broken cable devices
- Sensing edges
- Photo eyes
- Impact Section (C-2400)
High-Performance Design
Spring Cycle
- 10,000
High Cycle Spring Options
- 25,000
- 50,000
- 100,000
Ideal Applications Include:
- Manufacturing Plants
- Industrial Facilities
- Distribution Centers
- Production Facilities
- Storage Facilities
- Agricultural Facilities
- Commercial Buildings
- Maintenance Buildings
- Retail Buildings
Available with WindSafe® wind load reinforcement built to withstand specific high-wind pressures to meet local building codes.
Documents:
- Sectional Door Systems Brochure
- Sectional Steel Door Model C-20 Brochure
- Sectional Steel Door Model C-24 Brochure
- Sectional Steel Door Model C-2400 Brochure
- Sectional Steel Door Model CX-24 Brochure
- Sectional Steel Door Model CX-2400 Brochure
- Sectional Steel Door Model CX-20 Brochure
- Non-Insulated Sectional Door Warranty Models 216, 220, 2411, 2415, C-20, C-24, C-2400
- Sectional Steel Doors Full Line Specs
Sectional Steel Doors CX-Series & C-Series

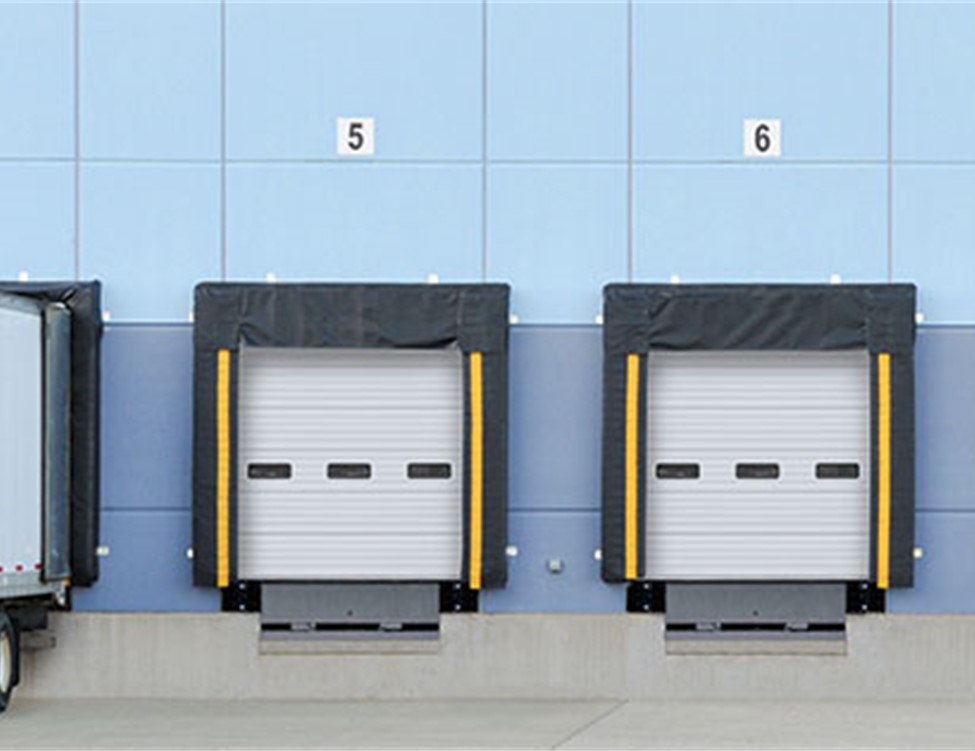

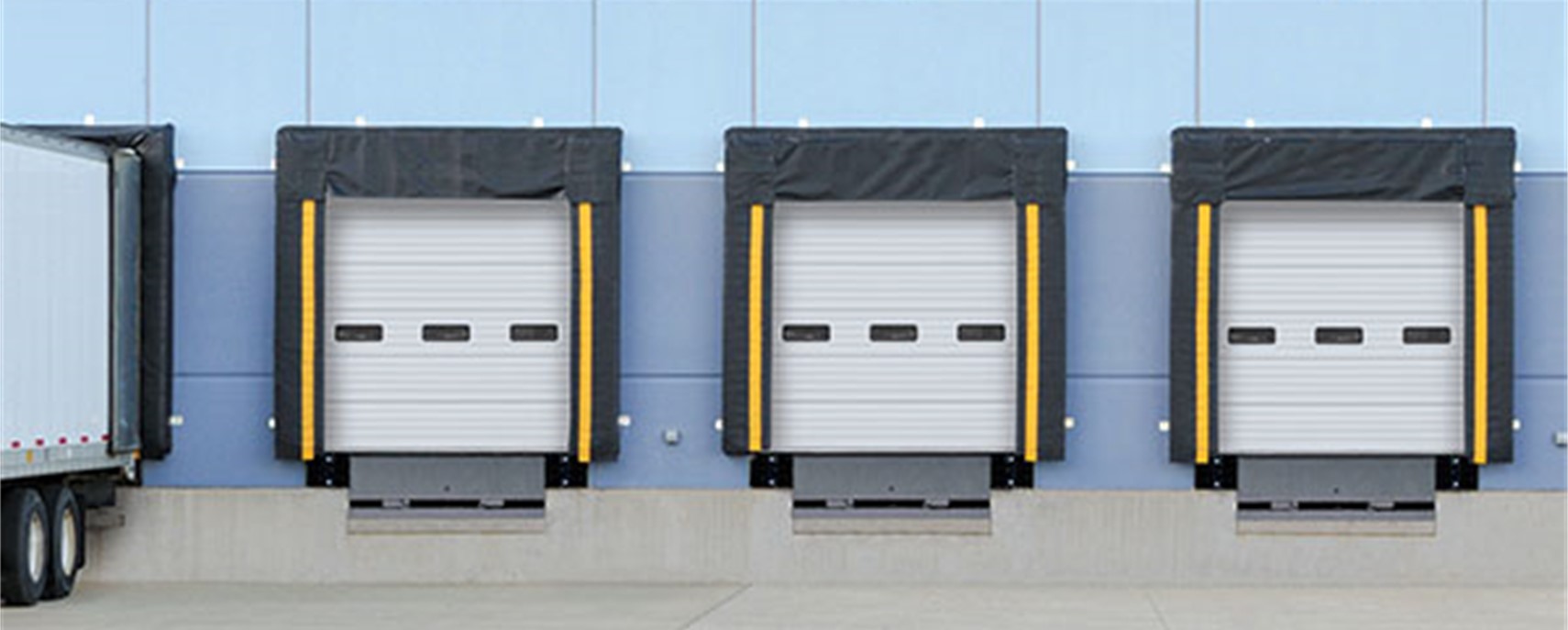

Sectional Steel Doors Model CX-20
Max Width – 32′
Max Height: 22’1″
R-Value -7.64
Designed for durability and stability in commercial and industrial applications and provides excellent value without compromise.

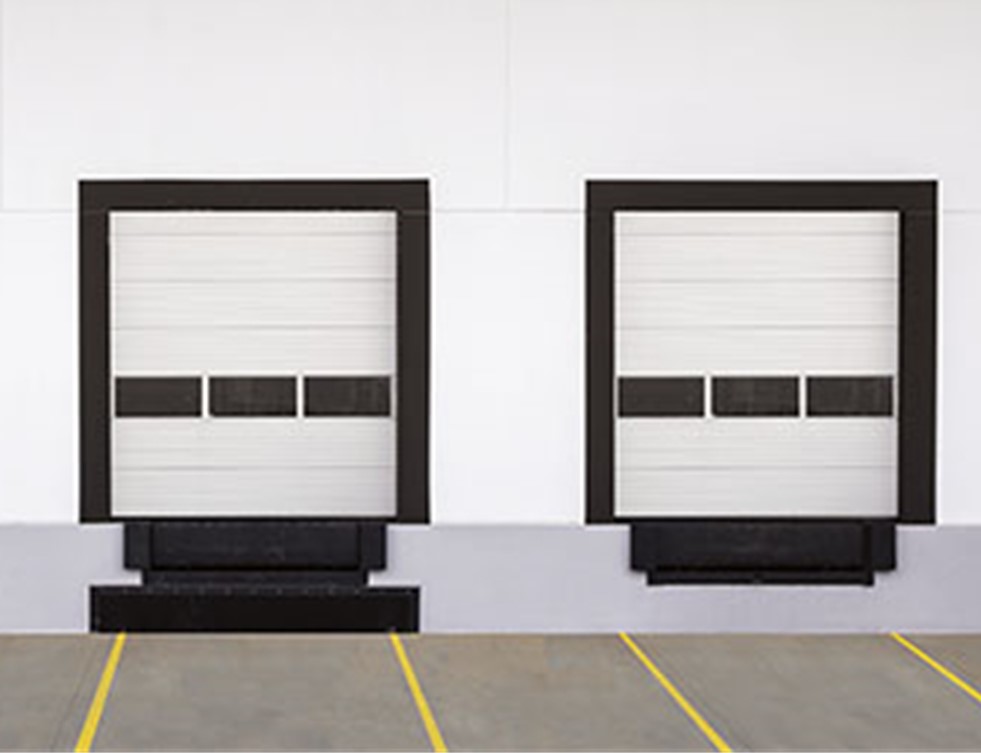

Sectional Steel Doors Model CX-24
Max Width –30’2
Max Height: 22’1″
R-Value -7.64
This strong, visually appealing sectional steel door provides high strength at an excellent value – ideal for moderate to heavy-duty applications.

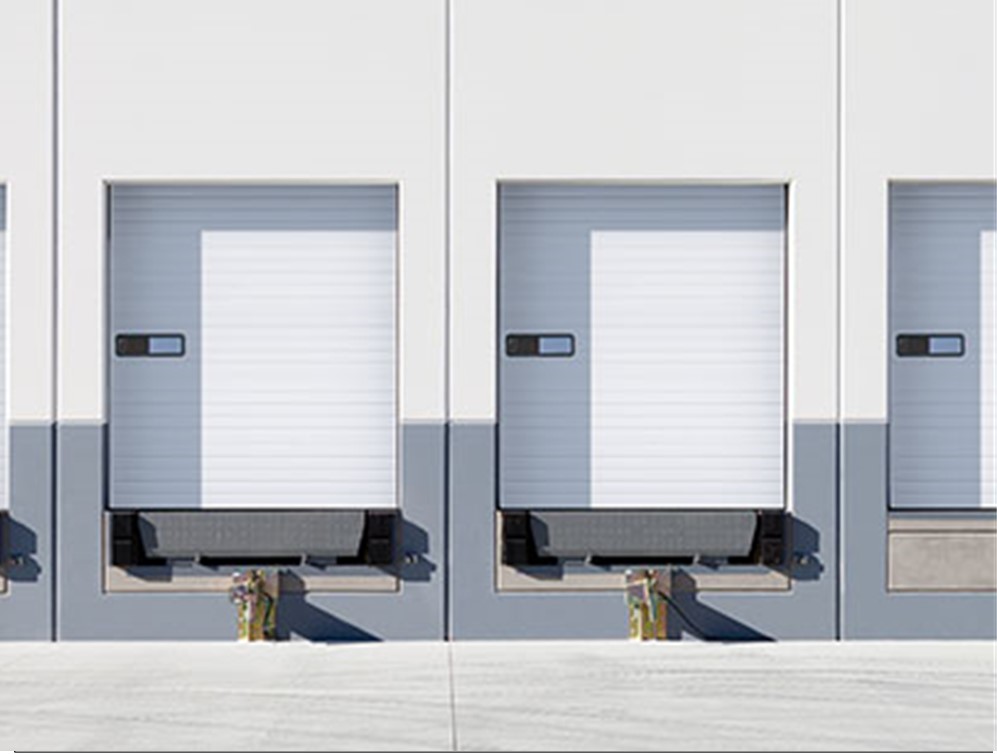

Sectional Steel Doors Model CX-2400
Max Width –20’2″
Max Height: 16’1″
R-Value -7.64
This sectional steel door’s construction provides strength, longevity, and durability at an excellent value for medium to light duty commercial applications.
Standard Construction | Model CX-20 | Model CX-24 | Model CX-2400 | Model C-20 | Model C-24 | Model C-2400 |
|---|---|---|---|---|---|---|
| U-value* | .013 | .013 | .013 | .013 | .013 | .013 |
| Steel Gauge | 20 | 24 | Nominal 24 | 20 | 24, ribbed | Nominal 24, ribbed |
| Joint Profile | Tongue-and-groove | Tongue-and-groove | Tongue-and-groove | Tongue-and-groove | Tongue-and-groove | Tongue-and-groove |
| Exterior Surface | Ribbed | mooth, Ribbed | Smooth or Stucco-embossed, Ribbed | Ribbed | Smooth, Ribbed | Smooth or Stucco-embossed, Ribbed |
| Wind Load** (optional) | No | No | No | Yes** | Yes** | Yes** |
| Self-forming Rivets | Yes | Yes | Yes | No | No | No |
| Glue | No | No | No | Yes | Yes | Yes |
Sectional Steel Doors Model C-20
Max Width – 30’2″
Max Height: 22’1″
R-Value -7.64
This sectional steel door is the strongest in the series and perfect for moderate to heavy-duty applications – wind load applications only.

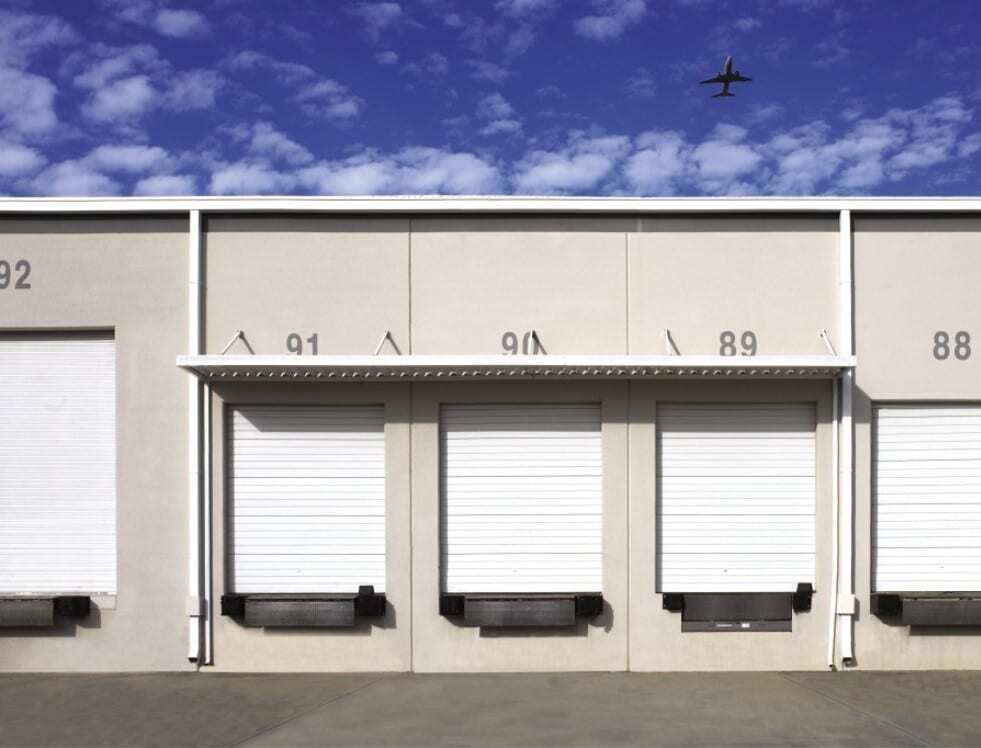

Sectional Steel Doors Model C-24
Max Width –30’2
Max Height: 22’1″
R-Value -7.64
This steel door offers vertical strength and stability critical to commercial and industrial applications – wind load applications only.

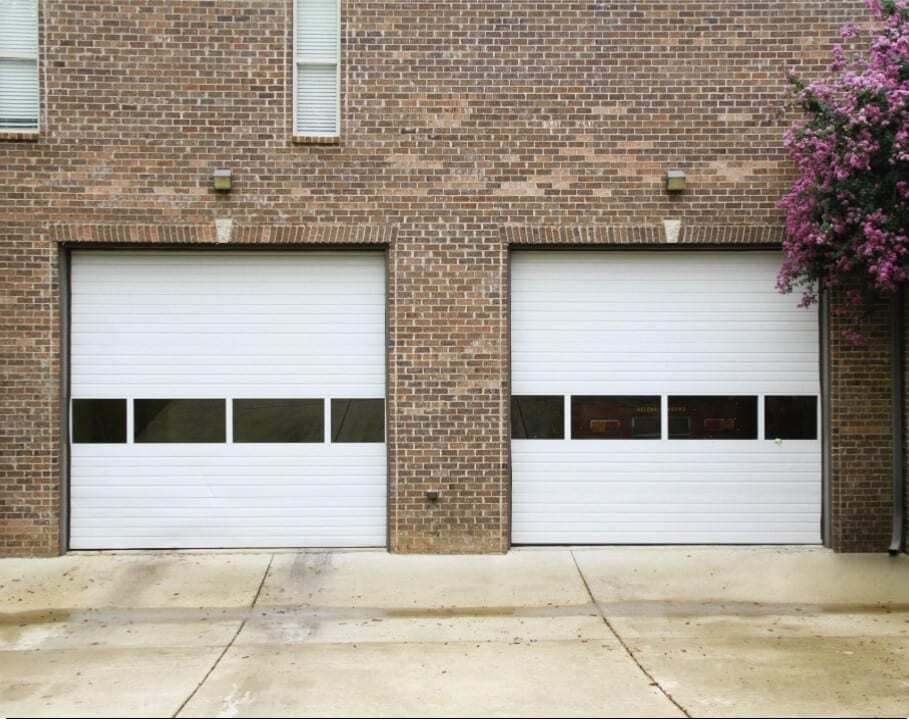

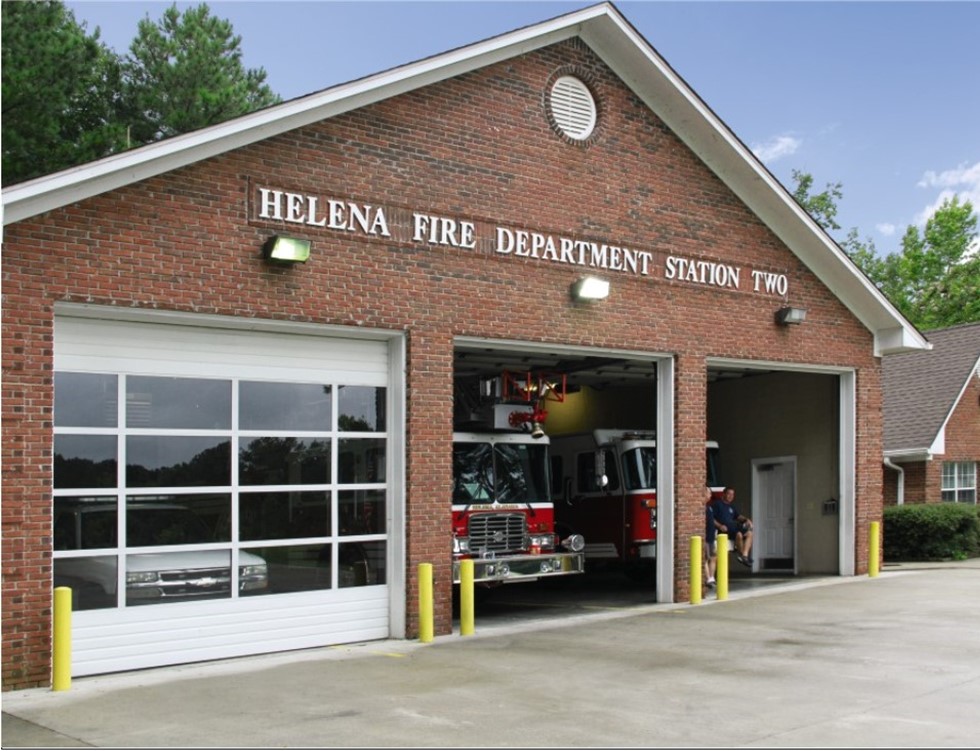

Sectional Steel Door Model C-2400
Max Width –20’2″
Max Height: 16’1″
R-Value -7.64
This durable sectional steel door ensures longevity for light to medium duty commercial applications – wind load applications only.
Sectional Steel Doors CX-Series & C-Series, Design Options
Perimeter weather seal
Polystyrene Insulation
3” Track
Solid shafts
Special track designs
Mullions
Simple Install System
Lite Options

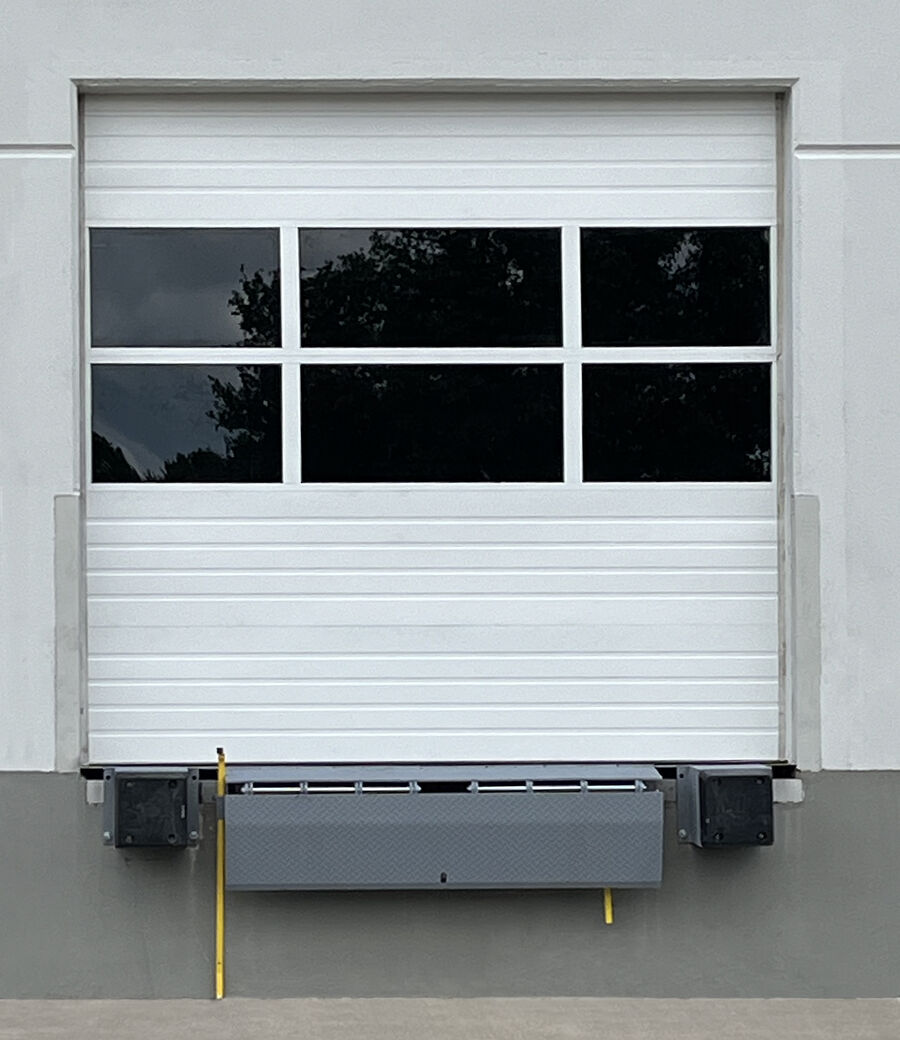

- Vision Lite
- Full View (only 150, 200, 200-20)
Glass Options
- Insulated
- Tempered
Vision lites
All Models
Full-view lites
(only 150, 200, 200-20)
Colors Options
White
Models CX 24 &
C – 24
White Smooth
Models CX 20 &
C – 20
Models CX 2400 & C – 2400
Brown
Models CX 24 &
C – 24
Brown Smooth
Models CX 2400 & C – 2400
White Stucco Embossed
Models CX – 2400 & C – 2400
Brown Stucco Embossed
Models CX – 2400 & C-2400
TruChoice®
Thermospan® Series is available with the TruChoice® Color System, Wayne Dalton’s custom painting process that offers more than 6,000 colors. See dealer for details.
Actual colors may vary due to fluctuations in the printing process. Always request a color sample for accurate color matching.
Commercial Insulated Sectional Steel Doors, Collection
Sectional Steel Doors

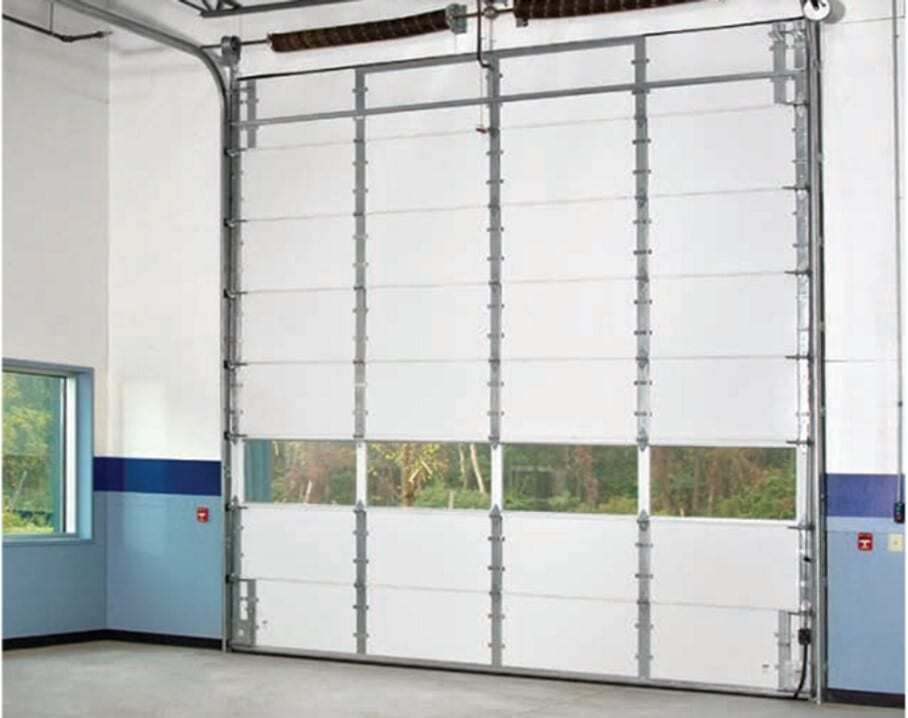

Model 216 & 220
Sectional Steel Doors

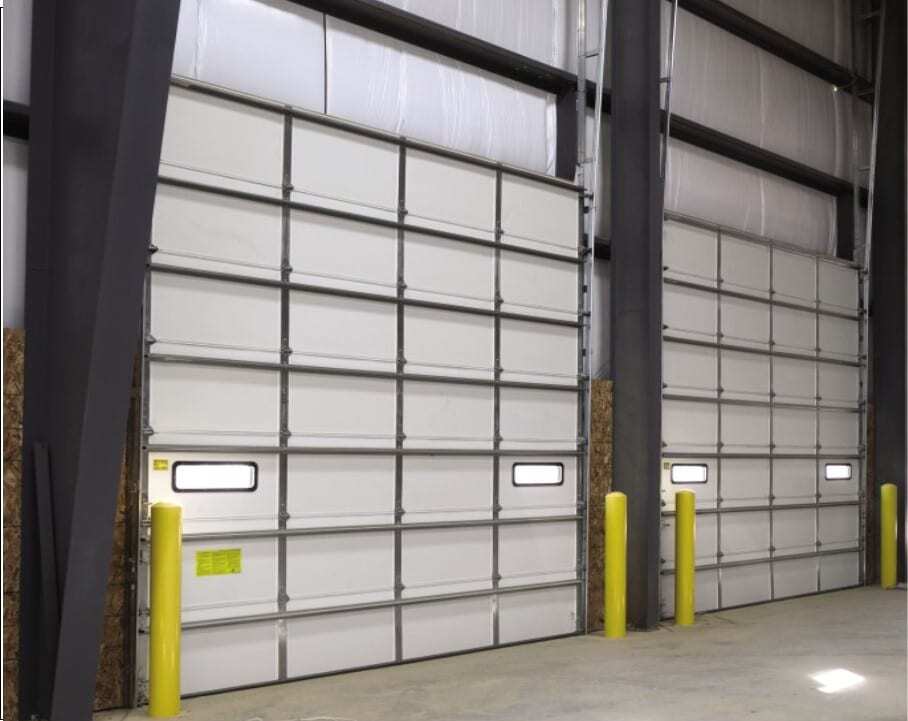

Model 2411 & 2415
