Rolling Grilles Model 600

The Model 600 Rolling Grille offers security, visibility, and ventilation in several patterns and finishes. Rolling Grills provide security against entry or theft with slide bolts or padlockable chains while the design allows visual access through the door opening space. This rolling grille also offers an emergency egress option as an additional security feature.

.

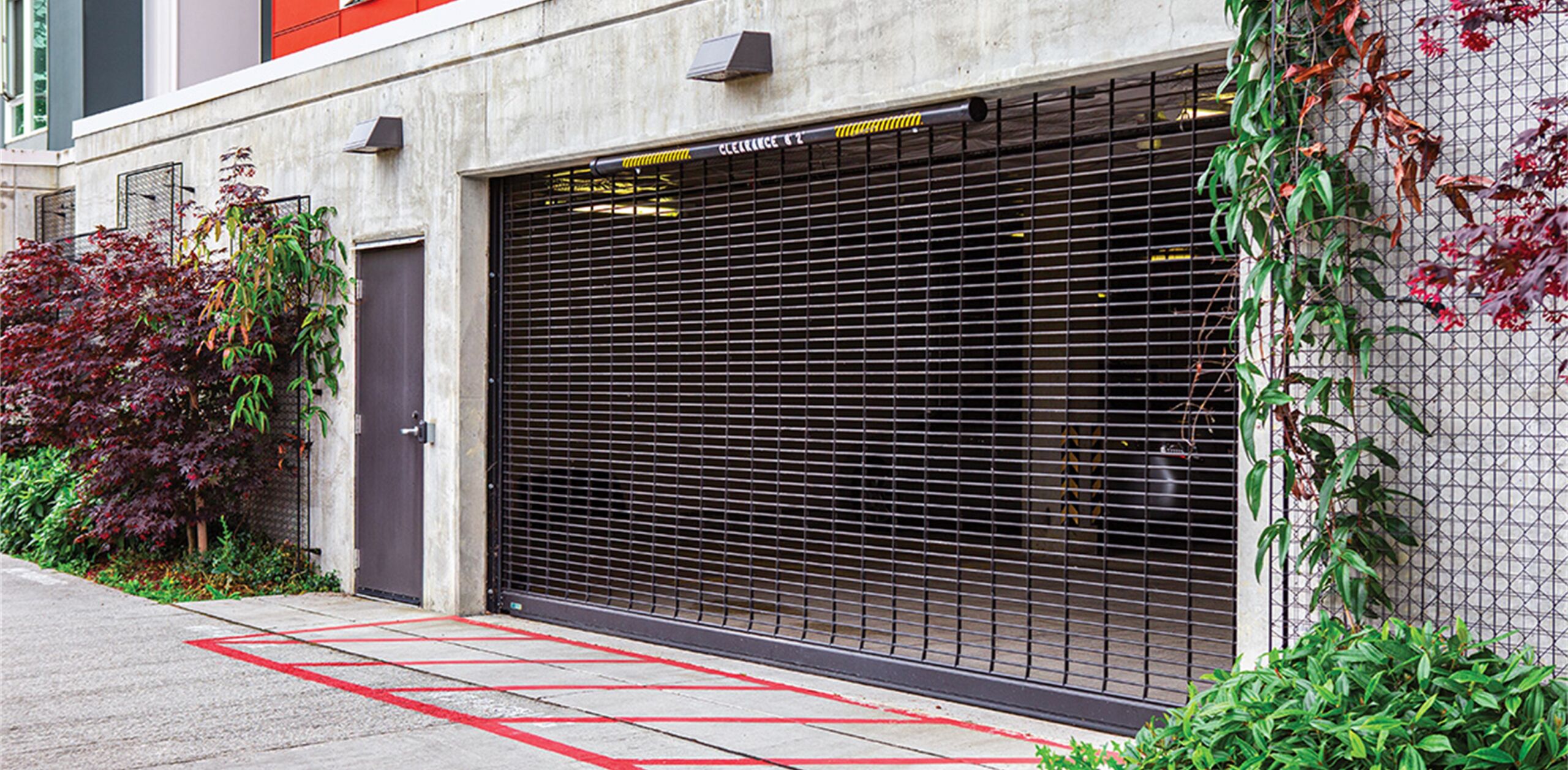

G-6 Pattern, Black Finish

Security – Visibility – Ventilation!

Model 600 is constructed with vertical aluminum links and horizontal steel rods with spacer tubes and end links that ensure the grille cannot be pulled from guides. The counterbalance assembly consists of a spring barrel, which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils.

Rolling Grilles Model 600

Wayne Dalton Rolling Grilles offer security, visibility, and ventilation in many patterns and finishes for commercial, industrial, retail, and institutional applications. These grilles are available in steel, aluminum, or stainless steel to meet your project requirements.

EES Emergency Egress

The Wayne Dalton emergency egress grille provides secure access to public areas yet will automatically open fully upon detecting an alarm or power failure. This prevents entrapment in an emergency and allows immediate access to emergency personnel. (Available on motor-operated doors)

High-Quality Construction

The bottom bar is a tubular aluminum extrusion, providing stability and strength.
Extruded aluminum guides provide vertical alignment and strength
The wool pile inserts provide smooth and quiet operation

Safety Focused

Provides ventilation to aid in preventing any excess build-up of fumes or gases

Warranty

12-Months Limited Warranty against defects in materials and

Ideal Applications Include

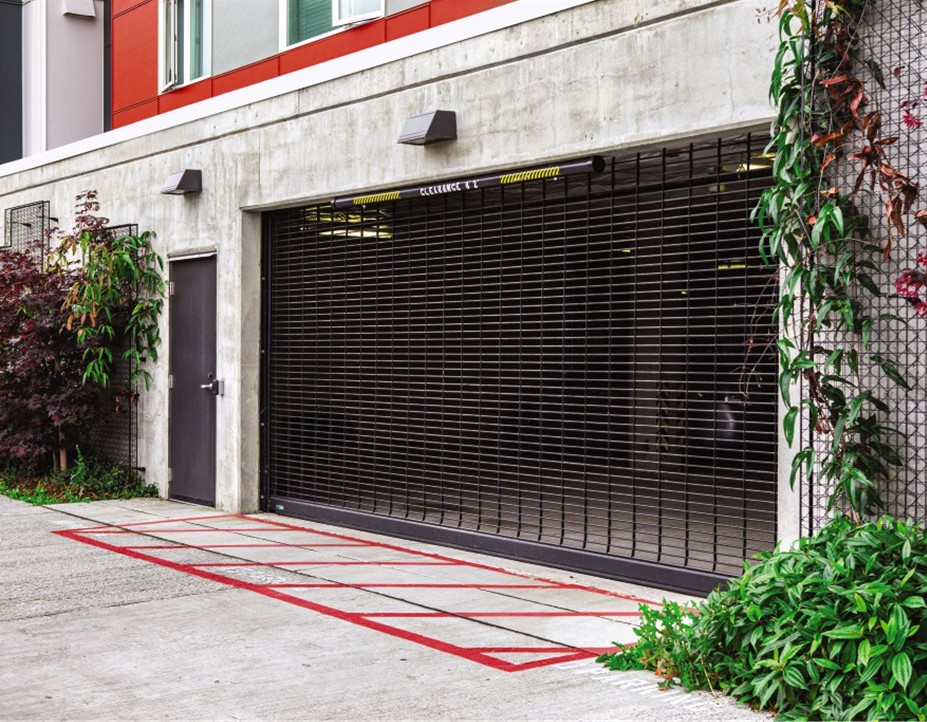

Parking Garage

Schools

Hospitals / Pharmacies

Banks / Office buildings

Retail

Airports

Features

Max. Width: 42′

Max. Height: 20′

Spring: Cycle Solid

Material: Face-of-wall or between jambs

Mounting: Manual Push-up

Operation*: Aluminum

Curtain: Interlocking extruded aluminum slats constructed of .05″ aluminum

Bottom Bar: Steel barrel; housing spring assembly

Guides: Extruded aluminum channels with continuous wear strips

Brackets: Aluminum square hood

Barrel: Steel plates

Grille Pattern: Compact aluminum with vinyl bulb seal

Enhancements

Operation

Awning crank
Wall cran
Chain hoist
Motor
Motor with chain

Safety Focused

Drop Stop Device – Locking Options

Cylinder lock
Best lock
Slide bolts
Thumb turns
E-Z LOK (EES only)

Bottom Edge Options

Astragal
Pneumatic
Electric sensing edge

Design Solutions

High Cycle Springs
Super-imposed combination doors
Curb cut out bottom bars
Combination door mounts
Sloped bottom bars

Product Literature

Brochure Model 600

Brochure Full Line Rolling Doors

Wayne Dalton Introduces High Cycle Springless Grille Built to Last with Enhanced Cycle Life

Grille Patterns Model 600

User Manual & Specs

Specs Model 600

Specs Full Line Rolling Grilles

Applications

Application – Retail Storefront Security Solutions

Application – Multi-Family Housing

Application – Healthcare & Pharmaceutical

Application – Retail Automotive

Application – Public Government Facility

Warranty

Warranty Model 600

Warranty Model 600 Emergency Egress (EES)

Rolling Grilles Model 600 Design Options

Guides/Brackets/Barrel/Bottom Bar/Guides Finish

Black Primed
Painted steel (Beige, White or Gray)
