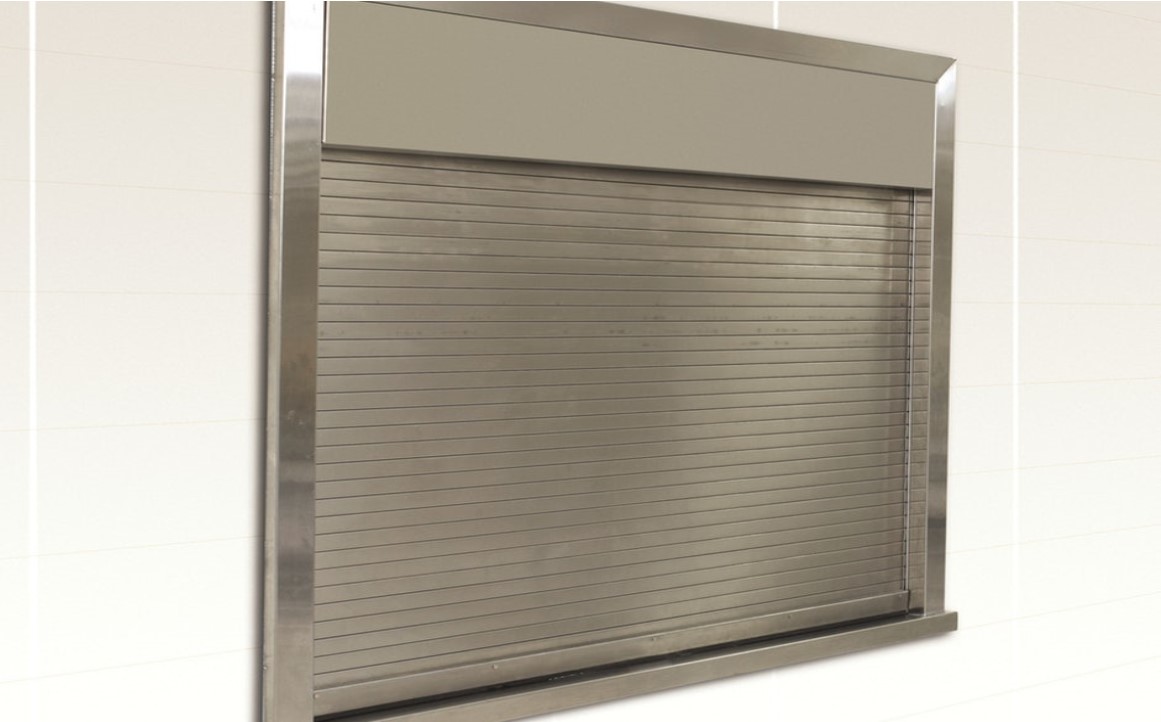

Fire Rated Integral Framed Counter Shutter Model 570
Fire Rated Integral Framed Counter Shutter Model 570 provides an attractive appearance for various applications. Whether you choose a curtain of galvanized steel or stainless steel, you will receive a durable and attractive shutter. These counter shutters feature all-steel 16-gauge frames, fascia, hood, and 14-gauge sills. Bottom bars are fabricated of steel or stainless steel for added durability.
Quality, Convenience, Durability
Our integral frame fire counter shutters are constructed of high quality, flat slats for a good, snug fit while the adjustable counterbalance assembly features helical torsion springs in a steel tube or pipe barrel for enhanced aesthetics

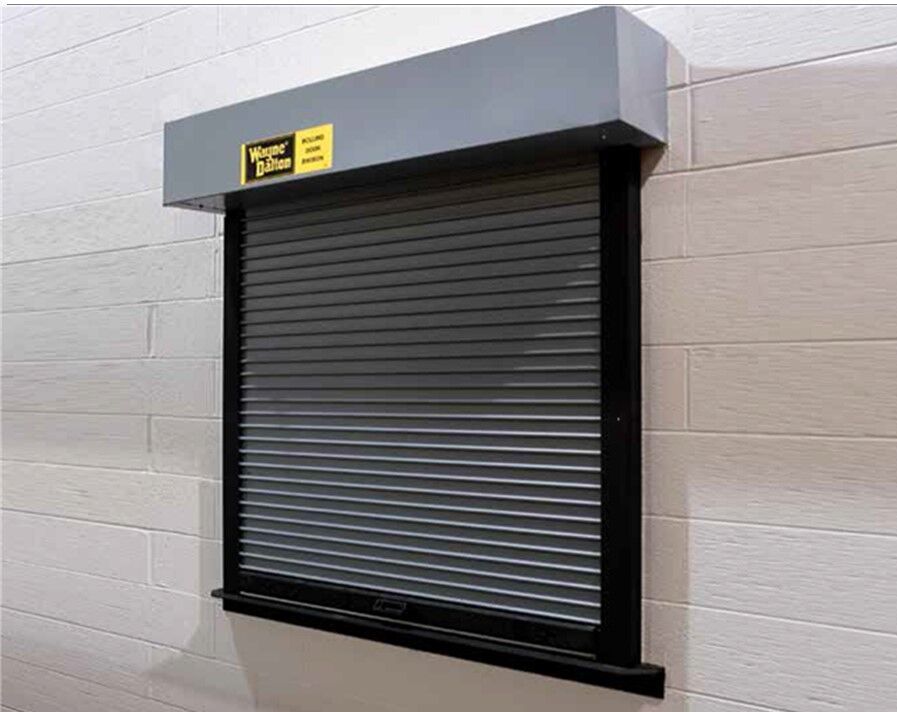

Fire Rated Integral Framed Counter Shutter Model 570
The Wayne Dalton Fire-Rated Integral Frame Counter Shutter Model 570 is designed for commercial openings that require certified fire protection in a compact, attractive counter-door system. The Model 570 combines a rolling fire-rated curtain with a factory-assembled integral frame, sill, hood, and guides for a complete installation package.
UL Fire-Rated Protection
Model 570 carries a UL 1-1/2-hour Class B label for masonry and non-masonry fire walls. This makes it suitable for applications that require a labeled fire-rated counter closure.
Why Choose Model 570?
The Wayne Dalton Model 570 combines fire-rated protection, durable steel construction, a factory-assembled integral frame, and a clean architectural appearance. Its compact dimensions make it especially useful for commercial counter openings that require fire protection without installing a larger rolling fire door.
High-Quality Construction
- Commercial durability and extreme fire protection
- Bottom bars are fabricated of steel or stainless steel for added durability.
- The unique, clean design eliminates excess cables for easy installation, testing, and maintenance.
Reliable Design
- The counterbalance assembly features adjustable helical torsion springs for longer life
- Interlocking slats with a flat profile provide an attractive and tight fit, while end-locks on alternative slats eliminate lateral movement and maintain curtain alignment
- The turnkey package provides a UL 1-1⁄2 Hour Class B label and is factory-assembled as a complete unit with fully welded frames that do not require a second installation
Warranty
- OEM limited warranty
- 24-Months Limited Warranty against defects in materials and workmanship
Ideal Applications Include
Warehouses / Manufacturing
Service Stations
Food Service Counters
Storage Areas
Stadium Concessions
Distribution Centers
Fire Rated Integral Framed Counter Shutter Design Options
Locking Options
- Slide locks
- Cylinder locking bottom bar with mortise cylinders
Integral Frame and Sill Slat Data
Opening Width | Slat | Frame / Sill |
| Thru 9’5” (2,870 mm) | 22-gauge stainless steel | Stainless Steel |
| Frame/Sill | 22-gauge stainless steel(painted) | Stainless Steel |
Colors
Stainless Steel
Galvanized Steel
RAL Powder Coat*
Approximately 200 powder coat options are available to complement the exterior colors of a building.

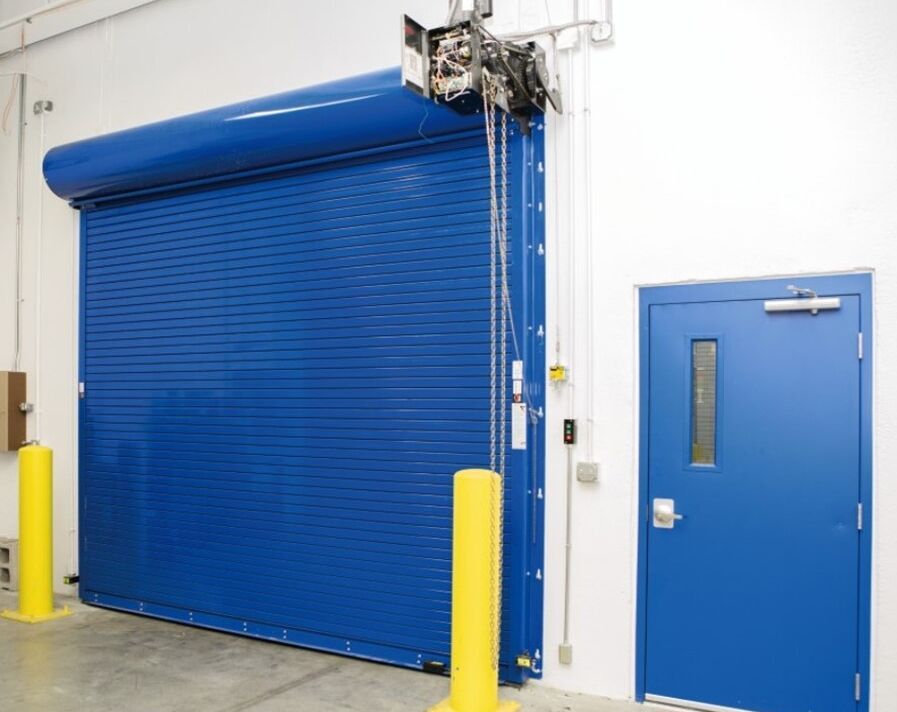

Wayne Dalton’s Commercial Rolling Fire Collection
